Microcontrollers and Processors / Microcontrollers / PIC12C509A-04E/P
Datasheets
PIC12C509A-04E/P by: Microchip Technology Inc

8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8

Part Details for PIC12C509A-04E/P by Microchip Technology Inc

Results Overview of PIC12C509A-04E/P by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

PIC12C509A-04E/P Information

PIC12C509A-04E/P by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for PIC12C509A-04E/P

Part # Distributor Description Stock Price Buy
DISTI # 23C2955
Newark Ic, microcontroller,8-Bit, pic Cpu, cmos, dip,8Pin, plastic Rohs Compliant: Yes |Microchip PIC12C509A-04E/P RoHS: Compliant Min Qty: 420 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.6400
$1.6400 Buy Now
DISTI # PIC12C509A-04E/P-ND
DigiKey IC MCU 8BIT 1.5KB OTP 8DIP Min Qty: 420 Lead time: 6 Weeks Container: Tube Temporarily Out of Stock
  • 420 $1.6875
$1.6875 Buy Now
DISTI # PIC12C509A-04E/P
Avnet Americas MCU 8-bit PIC12 PIC RISC 1.5KB EPROM 3.3V/5V 8-Pin PDIP Tube - Rail/Tube (Alt: PIC12C509A-04E/P) RoHS: Compliant Min Qty: 420 Package Multiple: 60 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 1 $1.6500
  • 25 $1.6200
  • 100 $1.5900
$1.5900 / $1.6500 Buy Now
DISTI # 579-PIC12C509A-04E/P
Mouser Electronics 8-bit Microcontrollers - MCU 1.5KB 41 RAM 6 I/O 4MHz Ext Temp PDIP8 RoHS: Compliant 0
  • 420 $1.6800
$1.6800 Order Now
Onlinecomponents.com MCU 8-bit PIC RISC 1.5KB EPROM 3.3V/5V 8-Pin PDIP Tube RoHS: Compliant 3060 Factory Stock
  • 105 $2.7000
  • 210 $2.0200
  • 315 $1.8900
  • 420 $1.8500
$1.8500 / $2.7000 Buy Now
NAC 1.5 KB OTP, 41 RAM, 6 I/O - Package: 8 PDIP .300in TUBE RoHS: Compliant Min Qty: 240 Package Multiple: 60 Container: Tube 0
  • 1 $2.0800
  • 100 $1.8800
  • 500 $1.7300
  • 1,000 $1.6900
$1.6900 / $2.0800 Buy Now
DISTI # PIC12C509A-04E/P
Avnet Silica MCU 8bit PIC12 PIC RISC 15KB EPROM 33V5V 8Pin PDIP Tube (Alt: PIC12C509A-04E/P) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics MCU 8-bit PIC RISC 1.5KB EPROM 3.3V/5V 8-Pin PDIP Tube RoHS: Compliant 3060 Factory Stock
  • 105 $2.7000
  • 210 $2.0200
  • 315 $1.8900
  • 420 $1.8500
$1.8500 / $2.7000 Buy Now

Part Details for PIC12C509A-04E/P

PIC12C509A-04E/P CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

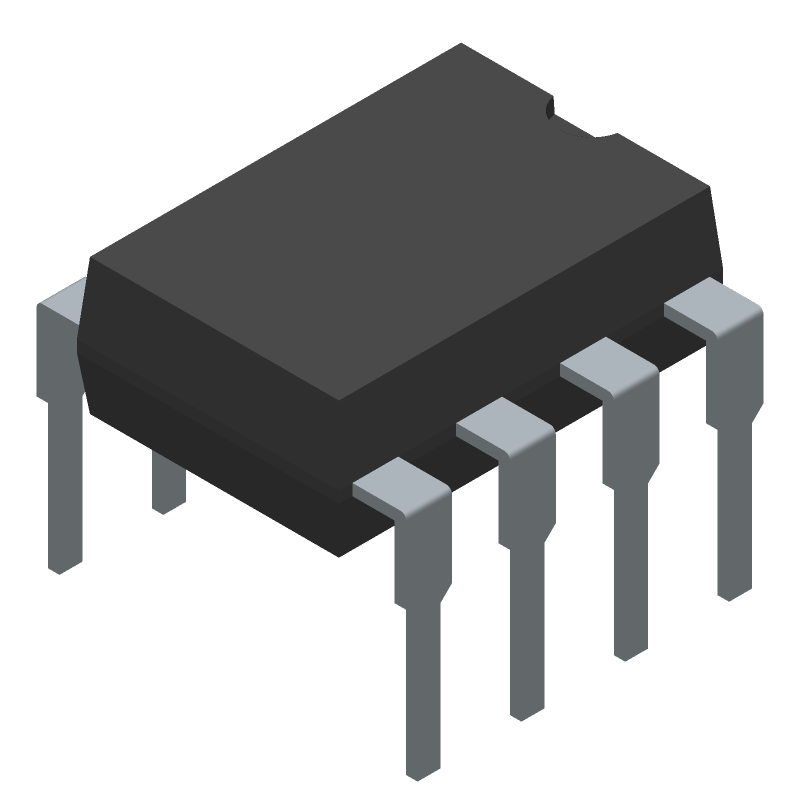

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PIC12C509A-04E/P Part Data Attributes

Parametric Data
PIC12C509A-04E/P Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
PIC12C509A-04E/P Microchip Technology Inc 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DIP
Package Description 0.300 INCH, PLASTIC, DIP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Date Of Intro 1996-05-10
Samacsys Manufacturer Microchip
Has ADC NO
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family PIC12
Clock Frequency-Max 4 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T8
JESD-609 Code e3
Length 9.4 mm
Low Power Mode YES
Number of I/O Lines 6
Number of Terminals 8
Number of Timers 2
On Chip Data RAM Width 8
On Chip Program ROM Width 12
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels NO
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
RAM (bytes) 41
ROM (words) 1024
ROM Programmability OTPROM
Seated Height-Max 4.06 mm
Speed 4 MHz
Supply Current-Max 1.4 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for PIC12C509A-04E/P

This table gives cross-reference parts and alternative options found for PIC12C509A-04E/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PIC12C509A-04E/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PIC12C509A-04/P Microchip Technology Inc $0.9696 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8 PIC12C509A-04E/P vs PIC12C509A-04/P
PIC12C509A-04I/P Microchip Technology Inc $47.6694 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8 PIC12C509A-04E/P vs PIC12C509A-04I/P
Part Number Manufacturer Composite Price Description Compare
PIC12LC509A-04I/SM Microchip Technology Inc $1.0000 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO8, 0.208 INCH, PLASTIC, SO-8 PIC12C509A-04E/P vs PIC12LC509A-04I/SM
PIC12C509A-04I/SM Microchip Technology Inc $1.0685 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO8, 0.208 INCH, PLASTIC, SO-8 PIC12C509A-04E/P vs PIC12C509A-04I/SM
PIC12C509AT-04/SN Microchip Technology Inc $51.5640 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO8, 0.150 INCH, PLASTIC, SO-8 PIC12C509A-04E/P vs PIC12C509AT-04/SN
PIC12C509A-04/JW Microchip Technology Inc Check for Price 8-BIT, UVPROM, 4 MHz, RISC MICROCONTROLLER, CDIP8, 0.300 INCH, WINDOWED, SIDE BRAZED, CERAMIC, DIP-8 PIC12C509A-04E/P vs PIC12C509A-04/JW
PIC12LC509AT-04/SN Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO8, 0.150 INCH, PLASTIC, SO-8 PIC12C509A-04E/P vs PIC12LC509AT-04/SN
PIC12C509AT-04E/SM Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO8, 0.208 INCH, PLASTIC, SO-8 PIC12C509A-04E/P vs PIC12C509AT-04E/SM
PIC12LC509A-04/SM Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO8, 0.208 INCH, PLASTIC, SO-8 PIC12C509A-04E/P vs PIC12LC509A-04/SM
PIC12LC509AT-04E/SN Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, PDSO8, 0.150 INCH, PLASTIC, SO-8 PIC12C509A-04E/P vs PIC12LC509AT-04E/SN
PIC12C509A/JW Microchip Technology Inc Check for Price 8-BIT, OTPROM, 4 MHz, RISC MICROCONTROLLER, CDIP8, 0.300 INCH, WINDOWED, SIDE BRAZED, CERAMIC, DIP-8 PIC12C509A-04E/P vs PIC12C509A/JW
PIC12C509A-04E/JW Microchip Technology Inc Check for Price 8-BIT, UVPROM, 4 MHz, RISC MICROCONTROLLER, CDIP8, 0.300 INCH, WINDOWED, SIDE BRAZED, CERAMIC, DIP-8 PIC12C509A-04E/P vs PIC12C509A-04E/JW

PIC12C509A-04E/P Frequently Asked Questions (FAQ)

  • The maximum operating frequency of PIC12C509A-04E/P is 4 MHz.

  • Yes, the PIC12C509A-04E/P can operate from 2.5V to 5.5V, making it suitable for 3.3V systems.

  • The PIC12C509A-04E/P consumes approximately 1.5 μA in sleep mode.

  • No, the PIC12C509A-04E/P does not have a built-in UART module. However, you can implement a software-based UART using the device's GPIO pins and timer modules.

  • The PIC12C509A-04E/P has 1 KB of flash memory.
