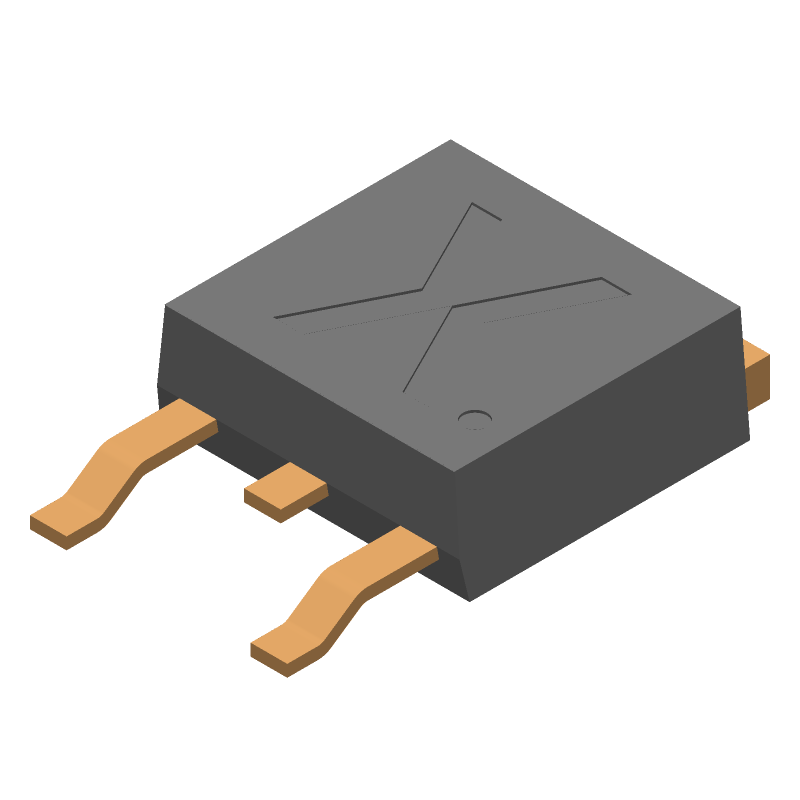

PHD21N06LT,118 Nexperia N-channel TrenchMOS logic level FET@en-us DPAK 3-Pin
Part Life Cycle Code Obsolete
Ihs Manufacturer NEXPERIA
Part Package Code DPAK
Package Description DPAK-3
Pin Count 3
Manufacturer Package Code SOT428
Reach Compliance Code not_compliant
ECCN Code EAR99
Date Of Intro 2017-02-01
Samacsys Manufacturer Nexperia
Additional Feature LOGIC LEVEL COMPATIBLE
Avalanche Energy Rating (Eas) 34 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min 55 V
Drain Current-Max (ID) 19 A
Drain-source On Resistance-Max 0.075 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JESD-30 Code R-PSSO-G2
Number of Elements 1
Number of Terminals 2
Operating Mode ENHANCEMENT MODE
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Pulsed Drain Current-Max (IDM) 76 A
Surface Mount YES
Terminal Form GULL WING
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
