PFSM.030.2 Information
PFSM.030.2 by Schurter Electronic Components is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for PFSM.030.2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
32C1910
|
Newark | Pfsm Ptc Fuse Smt 300 Ma/Blister Reel |Schurter PFSM.030.2 RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.4950 / $0.5360 | Buy Now |
|
DISTI #
29AC9250
|
Newark | Pfsm, Ihold 0.3 A, 60.0 Vdc, Resettable Fuse, Pcb Rohs Compliant: Yes |Schurter PFSM.030.2 RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4320 | Buy Now |
|
DISTI #
486-1174-1-ND
|
DigiKey | PTC RESET FUSE 60V 300MA 2SMD Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7002 In Stock |
|
$0.4012 / $0.5000 | Buy Now |
|
DISTI #
PFSM.030.2
|
Avnet Americas | PTC Resettable Fuse 10A 3s 60V 900m Ohm 2-Pin SMD T/R - Tape and Reel (Alt: PFSM.030.2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 3 Days Container: Reel | 2000 |
|
$0.4012 / $0.4311 | Buy Now |
|
DISTI #
693-PFSM.030.2
|
Mouser Electronics | Resettable Fuses - PPTC PTC 60V I hold 0.3A RoHS: Compliant | 6074 |
|
$0.4010 / $0.4800 | Buy Now |
|
DISTI #
70436121
|
RS | Fuse Ptc 0.30A 60V Fst-Trip Smd Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk | 2000 |
|
$0.4500 / $0.5500 | Buy Now |
|
|
Onlinecomponents.com | PFSM PTC FUSE SMT 300 mA RoHS: Compliant |
2000 In Stock |
|
$0.4028 / $0.4448 | Buy Now |
|
DISTI #
87345495
|
Verical | PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 60VDC 40A 1.7W 3s 0.9Ohm SMD Solder Pad 7.98 X 5.44 X 3.18mm T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 87 Package Multiple: 1 | Americas - 4000 |
|
$0.8120 | Buy Now |
|
DISTI #
78398269
|
Verical | PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 60VDC 40A 1.7W 3s 0.9Ohm SMD Solder Pad 7.98 X 5.44 X 3.18mm T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 | Americas - 2000 |
|
$0.3459 / $0.3528 | Buy Now |
|
DISTI #
53323358
|
Verical | PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 60VDC 40A 1.7W 3s 0.9Ohm SMD Solder Pad 7.98 X 5.44 X 3.18mm T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Date Code: 2036 | Americas - 2000 |
|
$0.5316 / $0.5782 | Buy Now |
Part Details for PFSM.030.2

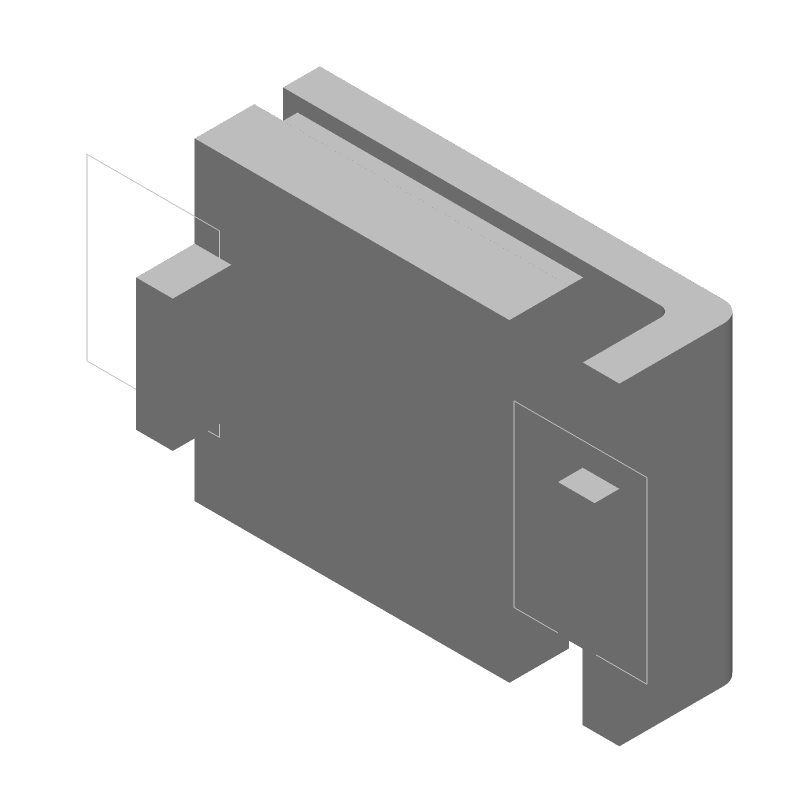

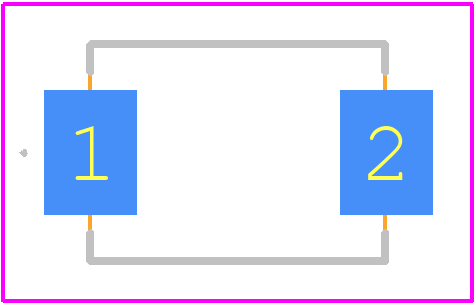

PFSM.030.2 CAD Models
PFSM.030.2 Part Data Attributes
|
|
PFSM.030.2
Schurter Electronic Components
Buy Now
Datasheet
|
Compare Parts:
PFSM.030.2
Schurter Electronic Components
PTC Resettable Fuse, 4.8ohm, Surface Mount, CHIP, 2029, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SCHURTER AG | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Factory Lead Time | 10 Weeks, 3 Days | |
| Samacsys Manufacturer | SCHURTER | |
| Additional Feature | RMIN AT 23 DEG CEL | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3.18 mm | |
| Package Length | 7.98 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 5.44 mm | |
| Packing Method | TR, 14 INCH | |
| Reference Standard | CUL; TUV; UL | |
| Resistance | 0.9 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermistor Application | TEMPERATURE SENSING | |
| Working Voltage | 60 V |
