PFRA.250 Information
PFRA.250 by Schurter Electronic Components is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for PFRA.250
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
486-3517-ND
|
DigiKey | PTC RESET FUSE 30V 2.5A RADIAL Min Qty: 1 Lead time: 10 Weeks Container: Bulk |
1327 In Stock |
|
$0.5042 / $1.3700 | Buy Now |
|
DISTI #
PFRA.250
|
Avnet Americas | PTC Resettable Fuse 40A 10.3s 30VDC 25m Ohm 2-Pin Radial Leaded T/R - Tape and Reel (Alt: PFRA.250) RoHS: Compliant Min Qty: 2000 Package Multiple: 500 Lead time: 10 Weeks, 3 Days Container: Reel | 0 |
|
$0.4863 / $0.5224 | Buy Now |
|
DISTI #
693-PFRA.250
|
Mouser Electronics | Resettable Fuses - PPTC PTC 30V I hold 2.5 RoHS: Compliant | 1653 |
|
$0.4860 / $0.5900 | Buy Now |
|
|
Onlinecomponents.com | PFRA PTC FUSE THT 2.5 A RoHS: Compliant | 0 |
|
$0.4957 / $0.6080 | Buy Now |
|
DISTI #
77784745
|
Verical | PTC Resettable Fuse 2.5A(hold) 5A(trip) 30VDC 40A 1.2W 10.3s 0.025Ohm Radial 12 X 3 X 18.3mm Bag Automotive RoHS: Compliant Min Qty: 87 Package Multiple: 1 | Americas - 459 |
|
$0.9355 | Buy Now |
|
DISTI #
PFRA.250
|
TME | Fuse: PTC polymer, 2.5A, 30VDC, 12x3x18.4mm, THT, PFRA, 4.4mm, bulk Min Qty: 1 | 460 |
|
$0.6160 / $0.8480 | Buy Now |
|
DISTI #
000000000000762061
|
Sager | Resettable Fuses - PPTC PTC 30V I hold 2.5 Min Qty: 1 | 0 |
|
$0.4687 / $0.5721 | Buy Now |
|
DISTI #
PFRA.250
|
Avnet Abacus | PTC Resettable Fuse 40A 103s 30VDC 25m Ohm 2Pin Radial Leaded TR (Alt: PFRA.250) RoHS: Compliant Min Qty: 2000 Package Multiple: 500 Lead time: 9 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | PFRA PTC FUSE THT 2.5 A RoHS: Compliant | 0 |
|
$0.4957 / $0.6080 | Buy Now |
Part Details for PFRA.250

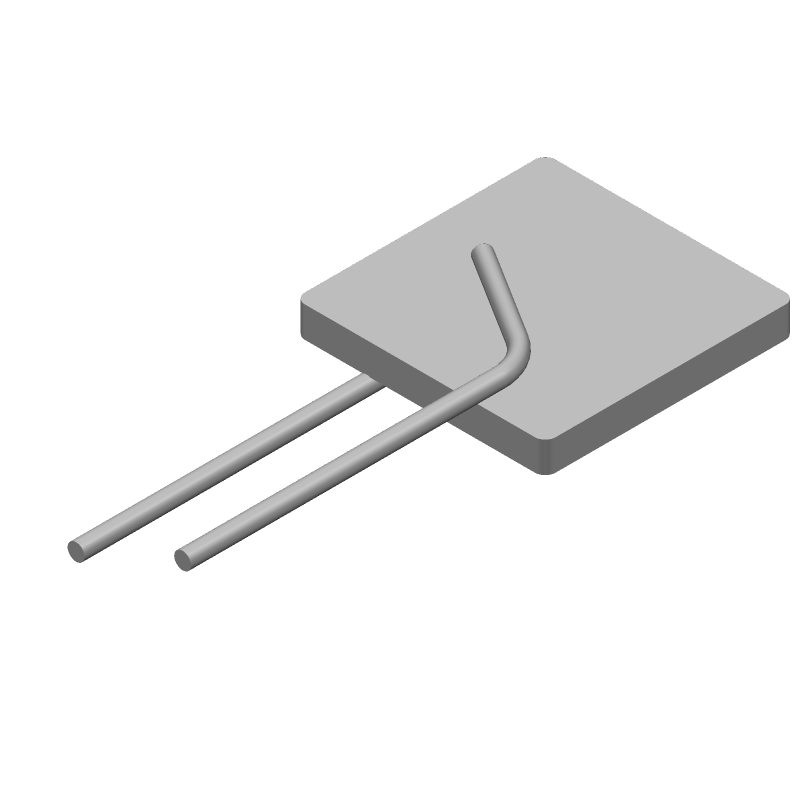

PFRA.250 CAD Models
PFRA.250 Part Data Attributes
|
|
PFRA.250
Schurter Electronic Components
Buy Now
Datasheet
|
Compare Parts:
PFRA.250
Schurter Electronic Components
PTC Resettable Fuse, 0.07ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SCHURTER AG | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Factory Lead Time | 10 Weeks, 3 Days | |
| Samacsys Manufacturer | SCHURTER | |
| Additional Feature | RMIN AT 23 DEG CEL | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 18.3 mm | |
| Package Length | 12 mm | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Package Width | 3 mm | |
| Packing Method | BULK | |
| Reference Standard | CUL; TUV; UL | |
| Resistance | 0.025 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Finish | TIN | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Working Voltage | 30 V |
