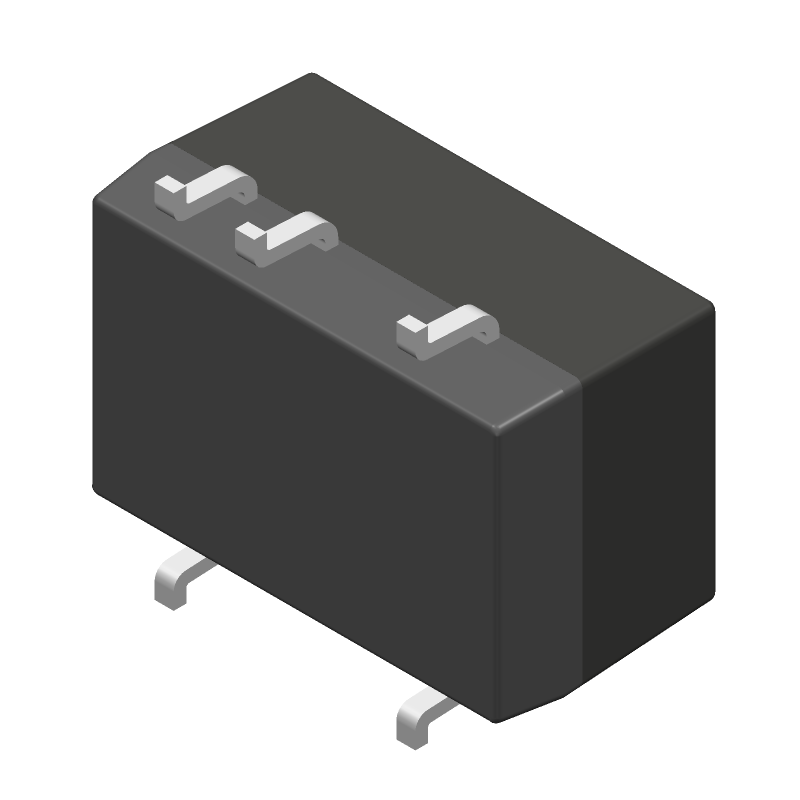

PESE2-S12-S12-M by: CUI Inc

DC-DC Unregulated Power Supply Module, 1 Output, 2W, Hybrid

Part Details for PESE2-S12-S12-M by CUI Inc

Results Overview of PESE2-S12-S12-M by CUI Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PESE2-S12-S12-M Information

PESE2-S12-S12-M by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
5962-9762101QEA Texas Instruments Quad LVDS Transmitter 16-CDIP -55 to 125
5962-9762201VFA Texas Instruments Quad LVDS Receiver 16-CFP -55 to 125
SN65LV1023ARHBT Texas Instruments 10:1 LVDS Serdes Transmitter 100 - 660Mbps 32-VQFN -40 to 85

Price & Stock for PESE2-S12-S12-M

Part # Distributor Description Stock Price Buy
DISTI # 90AJ6638
Newark Dc-Dc Converter, 12V, 0.167A Rohs Compliant: Yes |Cui PESE2-S12-S12-M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
Buy Now
DISTI # 102-PESE2-S12-S12-M-ND
DigiKey DC-DC 3KV ISOLATED, 2 W, 10.8~13 Min Qty: 38 Lead time: 16 Weeks Container: Tube Limited Supply - Call
  • 38 $5.9889
$5.9889 Buy Now

Part Details for PESE2-S12-S12-M

PESE2-S12-S12-M Part Data Attributes

Parametric Data
PESE2-S12-S12-M CUI Inc
Buy Now Datasheet
Compare Parts:
PESE2-S12-S12-M CUI Inc DC-DC Unregulated Power Supply Module, 1 Output, 2W, Hybrid
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer CUI INC
Package Description PACKAGE-8/5
Reach Compliance Code compliant
Samacsys Manufacturer CUI Inc.
Analog IC - Other Type DC-DC UNREGULATED POWER SUPPLY MODULE
Approvals EN
Efficiency (Main Output) 84%
Input Voltage-Max 13.2 V
Input Voltage-Min 10.8 V
Input Voltage-Nom 12 V
JESD-30 Code R-PDMA-G5
Length 13.2 mm
Line Regulation-Max 1.2%
Load Regulation-Max 10%
Number of Functions 1
Number of Outputs 1
Number of Terminals 5
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Output Current-Max 0.167 A
Output Voltage-Nom 12 V
Package Body Material PLASTIC/EPOXY
Package Code DMA
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Protections SHORT CIRCUIT
Ripple Voltage (Main Out) 0.053025 Vrms
Seated Height-Max 7.5 mm
Surface Mount YES
Technology HYBRID
Terminal Form GULL WING
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 2 W
Trim/Adjustable Output NO
Width 8.5 mm

Alternate Parts for PESE2-S12-S12-M

This table gives cross-reference parts and alternative options found for PESE2-S12-S12-M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PESE2-S12-S12-M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
PDM2-S12-S12-S CUI Inc Check for Price 12 Vdc, 0.17 A, 2 W, 10.8~13.2 Vdc Input Range PESE2-S12-S12-M vs PDM2-S12-S12-S
PEM2-S12-S12-S CUI Inc Check for Price 12 Vdc, 0.17 A, 2 W, 10.8~13.2 Vdc Input Range PESE2-S12-S12-M vs PEM2-S12-S12-S
AM2LS-1212S-NZTR Aimtec Check for Price DC-DC Unregulated Power Supply Module PESE2-S12-S12-M vs AM2LS-1212S-NZTR
AM2LS-1212SH30-NZ Aimtec Check for Price DC/DC Converter; Product Weight (grams): 1.5; Input voltage min (V): 10.8; Input voltage max (V): 13.2; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Single; Output Power (W): 2; Max Output current (A): 0.167; Efficiency (%): 82; Max Capacitive load (µF): 220; Package type: SMD; Mounting: PCB; W (in): 0.44; L (in): 0.5; H (in): 0.28; W (mm): 11.2; L (mm): 12.7; H (mm): 7.25; Min Operating temperature: -40; Max operating temperature (°C): 105; Isolation (VDC): 3000; EMC compliance 2: EN 55022 Class B; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; Application 6 (Lighting): 1; MTBF (h): 3500000; Derating : 85; Voltage Accuracy (%): ±2.5; Line Regulation (% of Vin): ±1.5; Load Regulation %: ±1.5; Ripple & Noise (mV p-p): 150; Switching Frequency typ (KHz): 300; Short circuit protection: Momentary PESE2-S12-S12-M vs AM2LS-1212SH30-NZ
PDME2-S12-S12-S CUI Inc Check for Price DC-DC Unregulated Power Supply Module, 1 Output, 2W, Hybrid PESE2-S12-S12-M vs PDME2-S12-S12-S
NMK1212SAC Murata Manufacturing Co Ltd Check for Price DC-DC Unregulated Power Supply Module, PESE2-S12-S12-M vs NMK1212SAC
AM2LS-1212SJZ Aimtec Check for Price DC-DC Unregulated Power Supply Module PESE2-S12-S12-M vs AM2LS-1212SJZ
AM2LS-1212SH30JZ Aimtec Check for Price DC-DC Unregulated Power Supply Module PESE2-S12-S12-M vs AM2LS-1212SH30JZ
PESE2-S12-S12-M-TR CUI Inc Check for Price DC-DC Unregulated Power Supply Module, 1 Output, 2W, Hybrid PESE2-S12-S12-M vs PESE2-S12-S12-M-TR
AM2LS-1212S-NZ Aimtec Check for Price DC/DC Converter; Product Weight (grams): 1.5; Input voltage min (V): 10.8; Input voltage max (V): 13.2; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Single; Output Power (W): 2; Max Output current (A): 0.167; Efficiency (%): 82; Max Capacitive load (µF): 220; Package type: SMD; Mounting: PCB; W (in): 0.44; L (in): 0.5; H (in): 0.28; W (mm): 11.2; L (mm): 12.7; H (mm): 7.25; Min Operating temperature: -40; Max operating temperature (°C): 105; Isolation (VDC): 1500; EMC compliance 2: EN 55022 Class B; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; Application 6 (Lighting): 1; MTBF (h): 3500000; Derating : 85; Voltage Accuracy (%): ±2.5; Line Regulation (% of Vin): ±1.5; Load Regulation %: ±1.5; Ripple & Noise (mV p-p): 150; Switching Frequency typ (KHz): 300; Short circuit protection: Momentary PESE2-S12-S12-M vs AM2LS-1212S-NZ
