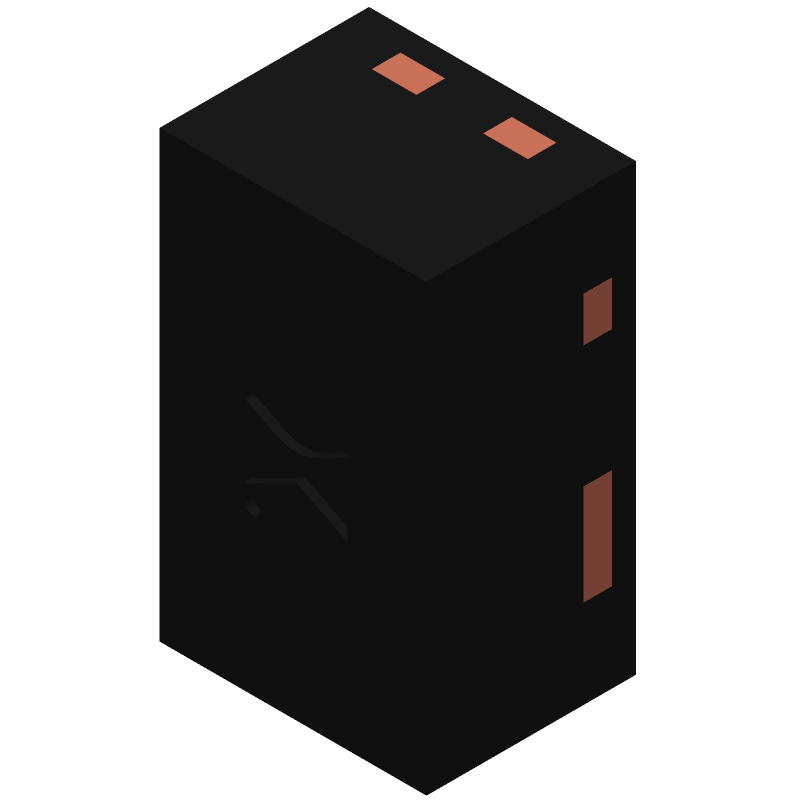

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PESD5V0V2BMYL by Nexperia
Results Overview of PESD5V0V2BMYL by Nexperia
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
PESD5V0V2BMYL Information
PESD5V0V2BMYL by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PESD5V0V2BMYL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82Y7160
|
Newark | Diode, Aec-Q101, Esd Protection, Sod-883, Clamping Voltage Vc Max:12.5V, Diode Case Style:Sot-883, No. Of Pins:3Pins, Operating Voltage:5V, Power Dissipation Pd:-, Product Range:Pesd5 Series, Automotive Qualification Rohs Compliant: Yes |Nexperia PESD5V0V2BMYL RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4605 |
|
$0.0790 / $0.2640 | Buy Now |
|
DISTI #
1727-2678-1-ND
|
DigiKey | TVS DIODE 5VWM 12.5VC SOT883 Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
21140 In Stock |
|
$0.0452 / $0.2400 | Buy Now |
|
DISTI #
PESD5V0V2BMYL
|
Avnet Americas | - Tape and Reel (Alt: PESD5V0V2BMYL) RoHS: Compliant Min Qty: 20000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0422 / $0.0461 | Buy Now |
|
DISTI #
771-PESD5V0V2BMYL
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes Very low capacitance unidirectional quadruple ESD protection diode arrays RoHS: Compliant | 31053 |
|
$0.0450 / $0.2400 | Buy Now |
|
DISTI #
V36:1790_09156716
|
Arrow Electronics | ESD Suppressor TVS Bi-Dir 5V 3-Pin DFN T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks Date Code: 2343 | Americas - 10000 |
|
$0.0434 | Buy Now |
|
DISTI #
86031296
|
Verical | ESD Suppressor TVS Bi-Dir 5V 3-Pin DFN T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 5435 Package Multiple: 1 Date Code: 1901 | Americas - 2120000 |
|
$0.0690 | Buy Now |
|
DISTI #
86010263
|
Verical | ESD Suppressor TVS Bi-Dir 5V 3-Pin DFN T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 5435 Package Multiple: 1 Date Code: 1801 | Americas - 730000 |
|
$0.0690 | Buy Now |
|
DISTI #
86005643
|
Verical | ESD Suppressor TVS Bi-Dir 5V 3-Pin DFN T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 5435 Package Multiple: 1 Date Code: 1701 | Americas - 143750 |
|
$0.0690 | Buy Now |
|
DISTI #
73540084
|
Verical | ESD Suppressor TVS Bi-Dir 5V 3-Pin DFN T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2343 | Americas - 10000 |
|
$0.0632 | Buy Now |
|
|
Rochester Electronics | Very Low Capacitance Bidirectional ESD Protection Diode RoHS: Compliant Status: Active Min Qty: 1 | 2993750 |
|
$0.0342 / $0.0552 | Buy Now |
Part Details for PESD5V0V2BMYL
PESD5V0V2BMYL CAD Models
PESD5V0V2BMYL Part Data Attributes
|
|
PESD5V0V2BMYL
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PESD5V0V2BMYL
Nexperia
PESD5V0V2BM - Very low capacitance bidirectional ESD protection diodes@en-us DFN 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | DFN | |
| Package Description | SC-101, DFN1006-3, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT883 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | IEC-61643-321 | |
| Breakdown Voltage-Max | 7.8 V | |
| Breakdown Voltage-Min | 5.5 V | |
| Case Connection | CATHODE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PBCC-N3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | IEC-60134; IEC-61000-4-2, 4-5 | |
| Rep Pk Reverse Voltage-Max | 5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | NO LEAD | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
PESD5V0V2BMYL Frequently Asked Questions (FAQ)
-
A good PCB layout for PESD5V0V2BMYL involves keeping the device close to the protected IC, using short and wide traces, and minimizing the distance between the device and the protected IC. Additionally, it's recommended to use a ground plane and to avoid routing signals under the device.
-
PESD5V0V2BMYL is designed to handle surge pulses and electrostatic discharges according to IEC 61000-4-2 and IEC 61000-4-5 standards. It can withstand up to 30kV contact discharge and 30kV air discharge, and can handle surge pulses up to 3.3A.
-
The maximum operating temperature range for PESD5V0V2BMYL is -40°C to 125°C. However, it's recommended to operate the device within the -40°C to 85°C range for optimal performance and reliability.
-
Yes, PESD5V0V2BMYL is AEC-Q101 qualified, which means it meets the stringent requirements for automotive applications. It's suitable for use in automotive systems, including infotainment, navigation, and advanced driver-assistance systems.
-
PESD5V0V2BMYL is designed to have minimal impact on signal integrity. It has a low capacitance of 0.4pF and a low clamping voltage of 6.5V, which ensures that the signal waveform is preserved and the protected IC operates correctly.
