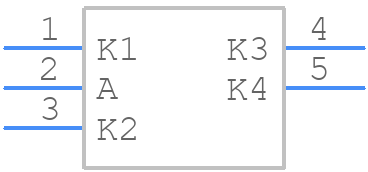

Part Symbol
-
Footprint
-

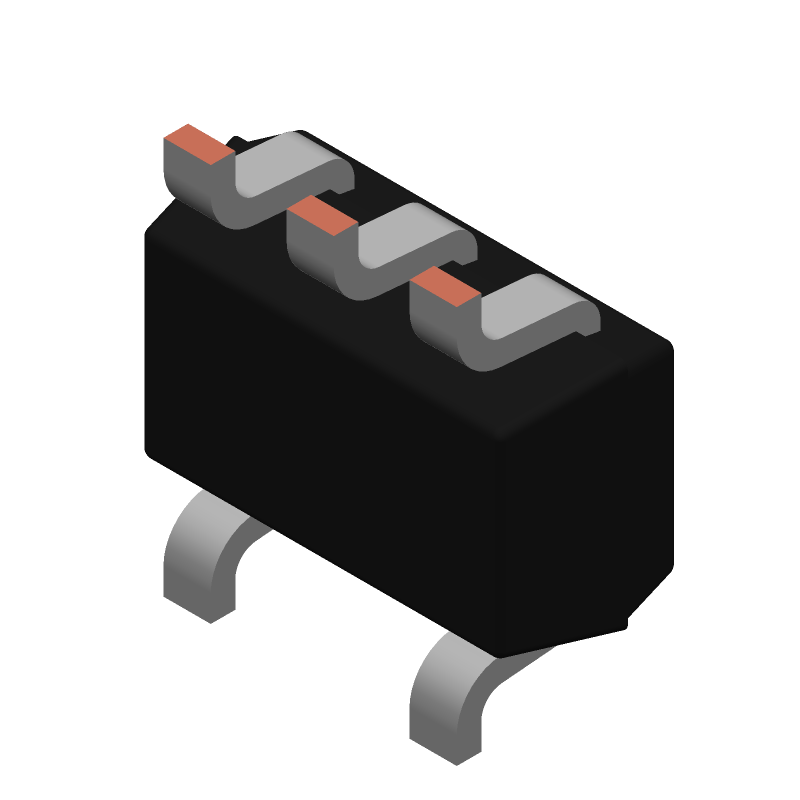

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PESD3V3L4UG by Nexperia
Results Overview of PESD3V3L4UG by Nexperia
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
PESD3V3L4UG Information
PESD3V3L4UG by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PESD3V3L4UG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 3000 |
|
RFQ | ||
|
|
Quest Components | TRANS VOLTAGE SUPPRESSOR DIODE, 30W, 3.3V V(RWM), UNIDIRECTIONAL, 4 ELEMENT, SILICON | 2400 |
|
$0.2220 / $0.5550 | Buy Now |
Part Details for PESD3V3L4UG
PESD3V3L4UG CAD Models
PESD3V3L4UG Part Data Attributes
|
|
PESD3V3L4UG
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PESD3V3L4UG
Nexperia
Trans Voltage Suppressor Diode
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Breakdown Voltage-Max | 5.88 V | |
| Breakdown Voltage-Min | 5.32 V | |
| Configuration | COMMON ANODE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 30 W | |
| Number of Elements | 4 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.3 W | |
| Reference Standard | IEC-60134; IEC-61000-4-2, 4-5 | |
| Rep Pk Reverse Voltage-Max | 3.3 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for PESD3V3L4UG
This table gives cross-reference parts and alternative options found for PESD3V3L4UG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PESD3V3L4UG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PESD3V3L4UG,115 | Nexperia | $0.2087 | PESD3V3L4UG - Low capacitance unidirectional quadruple ESD protection diode arrays@en-us TSSOP 5-Pin | PESD3V3L4UG vs PESD3V3L4UG,115 |
PESD3V3L4UG Frequently Asked Questions (FAQ)
-
The maximum surge current that PESD3V3L4UG can handle is 3A, as per the IEC 61000-4-5 standard.
-
PESD3V3L4UG protects against ESD by using a combination of TVS (Transient Voltage Suppressor) and ESD protection diodes to clamp voltage transients and absorb ESD pulses.
-
The response time of PESD3V3L4UG to an ESD event is typically in the range of 1-10 ns, which is fast enough to protect sensitive electronic components from ESD damage.
-
Yes, PESD3V3L4UG can be used for both signal lines and power lines, as it is designed to protect against overvoltage and ESD on both types of lines.
-
The operating temperature range of PESD3V3L4UG is -40°C to 125°C, making it suitable for use in a wide range of applications.
