PESD3V3L1UB Information
PESD3V3L1UB by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PESD3V3L1UB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 63000 |
|
RFQ |
Part Details for PESD3V3L1UB

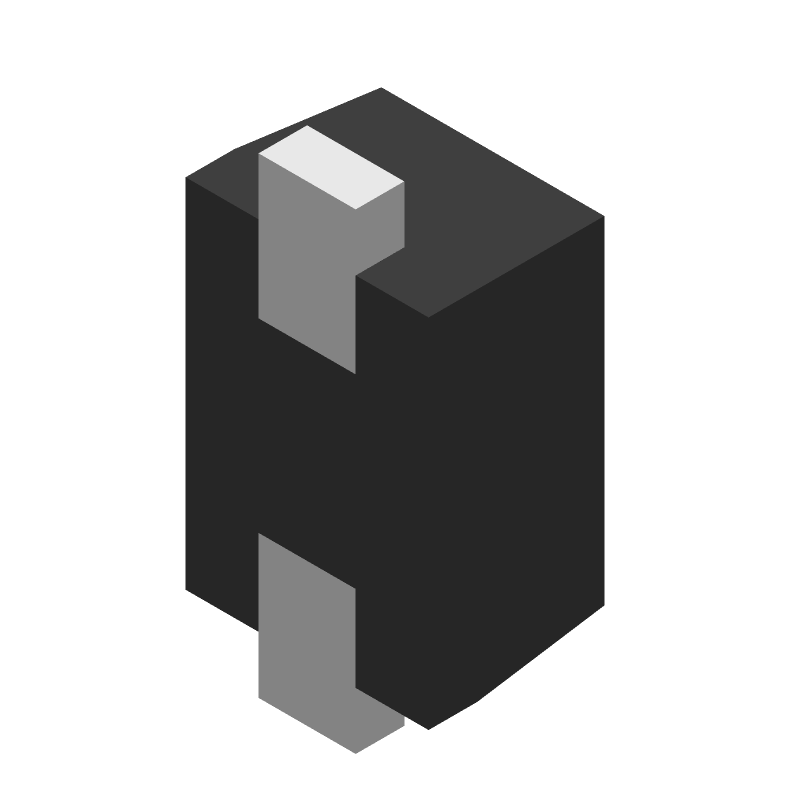

PESD3V3L1UB CAD Models
PESD3V3L1UB Part Data Attributes
|
|
PESD3V3L1UB
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PESD3V3L1UB
Nexperia
Trans Voltage Suppressor Diode, 45W, 3.3V V(RWM), Unidirectional, 1 Element, Silicon
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Package Description | SC-79, SOD-523, 2 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOW CAPACITANCE | |
| Breakdown Voltage-Max | 6 V | |
| Breakdown Voltage-Min | 5.3 V | |
| Breakdown Voltage-Nom | 5.6 V | |
| Clamping Voltage-Max | 8 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 45 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Reference Standard | IEC-60134; IEC-61000-4-5 | |
| Rep Pk Reverse Voltage-Max | 3.3 V | |
| Reverse Current-Max | 0.3 µA | |
| Reverse Test Voltage | 3.3 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
