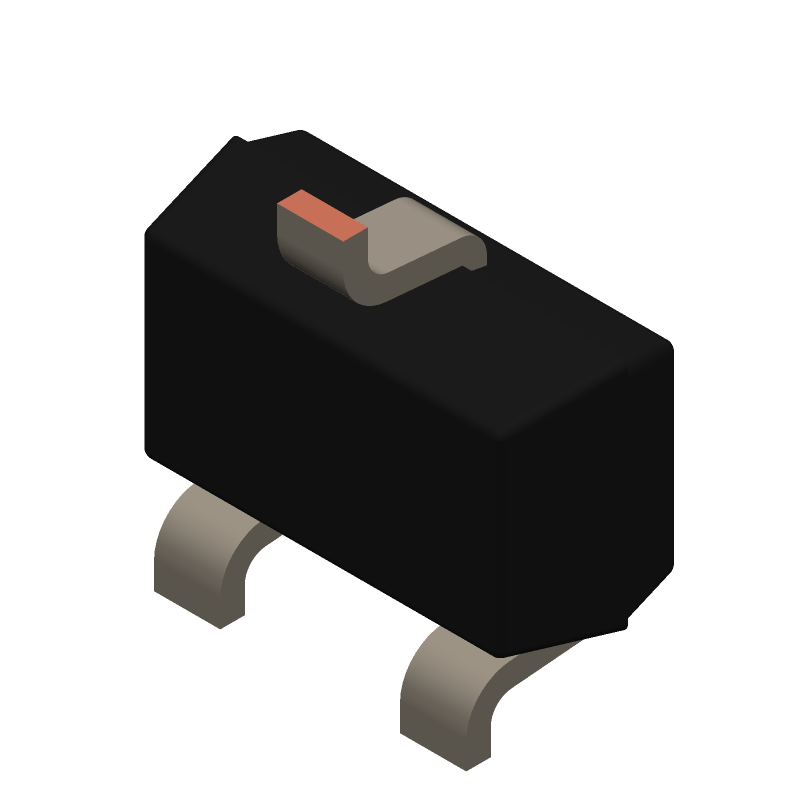

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PESD2CANFD24L-UX by Nexperia
Results Overview of PESD2CANFD24L-UX by Nexperia
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Telecommunications
Communication and Networking
PESD2CANFD24L-UX Information
PESD2CANFD24L-UX by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PESD2CANFD24L-UX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-PESD2CANFD24L-UXCT-ND
|
DigiKey | TVS DIODE 24VWM SC70 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
9883 In Stock |
|
$0.0432 / $0.3300 | Buy Now |
|
DISTI #
PESD2CANFD24L-UX
|
Avnet Americas | ESD Protection Device, 41 V, SOT-323, 3 Pins, 24 V, 10 pF - Tape and Reel (Alt: PESD2CANFD24L-UX) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0402 / $0.0440 | Buy Now |
|
DISTI #
771-PESD2CANFD24L-UX
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes ESD protection for In-vehicle networks RoHS: Compliant | 10035 |
|
$0.0430 / $0.3300 | Buy Now |
|
DISTI #
V36:1790_24634523
|
Arrow Electronics | ESD Suppressor TVS Bi-Dir 24V 3-Pin SC-70 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2342 | Americas - 3000 |
|
$0.0412 / $0.0492 | Buy Now |
|
DISTI #
PESD2CANFD24L-UX
|
TTI | ESD Protection Diodes / TVS Diodes ESD protection for In-vehicle networks RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 3000 In Stock |
|
$0.0580 / $0.0610 | Buy Now |
|
DISTI #
PESD2CANFD24L-UX
|
IBS Electronics | ESD SUPPRESSOR TVS BI-DIR 24V AUTOMOTIVE AEC-Q101 3-PIN SC-70 T/R Min Qty: 3000 Package Multiple: 1 | 366000 |
|
$0.0523 / $0.0567 | Buy Now |
|
DISTI #
PESD2CANFD24L-UX
|
Avnet Silica | ESD Protection Device 41 V SOT323 3 Pins 24 V 10 pF (Alt: PESD2CANFD24L-UX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | Silica - 9000 |
|
Buy Now | |
|
DISTI #
PESD2CANFD24L-UX
|
EBV Elektronik | ESD Protection Device 41 V SOT323 3 Pins 24 V 10 pF (Alt: PESD2CANFD24L-UX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 294000 |
|
$0.0671 / $0.0727 | Buy Now |
Part Details for PESD2CANFD24L-UX
PESD2CANFD24L-UX CAD Models
PESD2CANFD24L-UX Part Data Attributes
|
|
PESD2CANFD24L-UX
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PESD2CANFD24L-UX
Nexperia
PESD2CANFD24L-U - ESD protection for In-vehicle networks@en-us SC-70 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SC-70 | |
| Package Description | SOT-323, SC-70, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT323 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | ULTRA LOW CAPACITANCE | |
| Breakdown Voltage-Max | 35.5 V | |
| Breakdown Voltage-Min | 25.5 V | |
| Breakdown Voltage-Nom | 30.5 V | |
| Clamping Voltage-Max | 41 V | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | IEC-60134; IEC-61000-4-2, 4-5 | |
| Rep Pk Reverse Voltage-Max | 24 V | |
| Reverse Current-Max | 0.05 µA | |
| Reverse Test Voltage | 24 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
PESD2CANFD24L-UX Frequently Asked Questions (FAQ)
-
The PESD2CANFD24L-UX can operate in a temperature range of -40°C to 125°C.
-
Yes, the PESD2CANFD24L-UX is compliant with ISO 11898-2:2016, which is the standard for CAN FD (Flexible Data-Rate) transceivers.
-
The PESD2CANFD24L-UX supports data rates up to 5 Mbps for CAN FD and 1 Mbps for classical CAN.
-
Yes, the PESD2CANFD24L-UX has built-in ESD protection, which can withstand up to ±8 kV contact discharge and ±15 kV air discharge.
-
The PESD2CANFD24L-UX has a typical power consumption of 12 mA in normal mode and 5 μA in standby mode.
