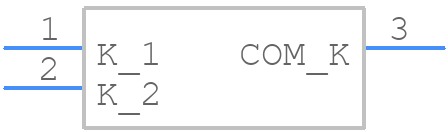

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PESD1CAN-U by Nexperia
Results Overview of PESD1CAN-U by Nexperia
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PESD1CAN-U Information
PESD1CAN-U by Nexperia is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PESD1CAN-U
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 6000 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 12 | 1790 |
|
$0.0900 / $0.4500 | Buy Now |
|
|
Quest Components | 4800 |
|
$0.1440 / $0.7200 | Buy Now | |
|
|
Greenchips | Date Code: 22+/MY | 11186 |
|
RFQ | |
|
|
Greenchips | Date Code: N/A | 0 |
|
RFQ |
Part Details for PESD1CAN-U

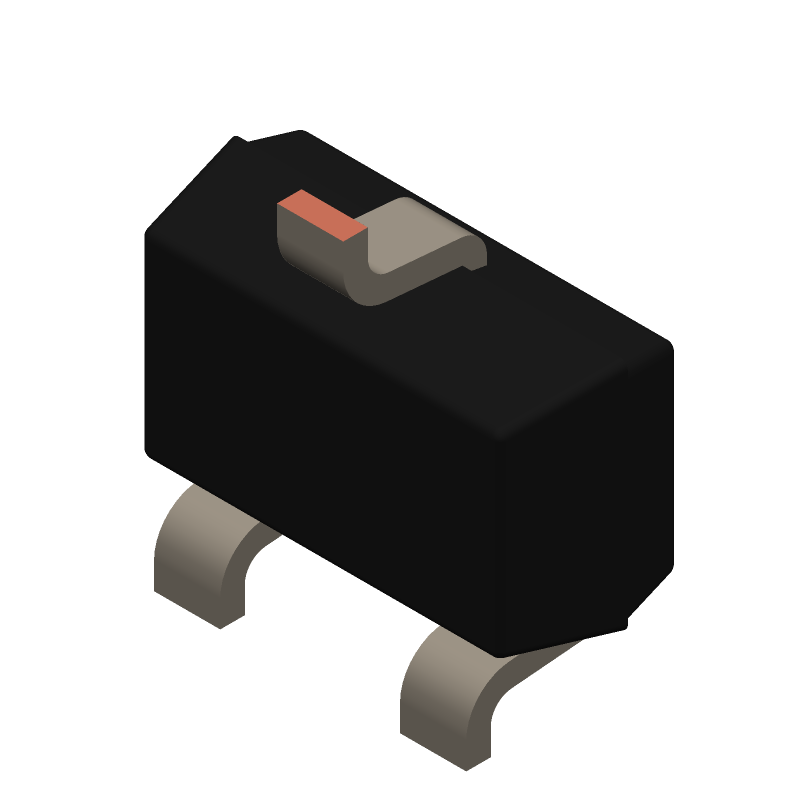

PESD1CAN-U CAD Models
PESD1CAN-U Part Data Attributes
|
|
PESD1CAN-U
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PESD1CAN-U
Nexperia
Trans Voltage Suppressor Diode
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | NEXPERIA | |
| Package Description | SC-70, SOT-323, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | IEC-61643-321 | |
| Breakdown Voltage-Max | 30.3 V | |
| Breakdown Voltage-Min | 25.4 V | |
| Breakdown Voltage-Nom | 27.8 V | |
| Clamping Voltage-Max | 50 V | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 150 W | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | IEC-60134; IEC-61000-4-2, 4-5 | |
| Rep Pk Reverse Voltage-Max | 24 V | |
| Reverse Current-Max | 0.05 µA | |
| Reverse Test Voltage | 24 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
PESD1CAN-U Frequently Asked Questions (FAQ)
-
The PESD1CAN-U can withstand a maximum surge current of 3A according to IEC 61000-4-5.
-
The PESD1CAN-U protects against ESD by using a combination of TVS diodes and resistors to clamp and absorb the ESD pulse, ensuring that the CAN bus is protected from damage.
-
The PESD1CAN-U has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
-
Yes, the PESD1CAN-U is compatible with ISO 11898-2, which is the standard for high-speed CAN bus systems.
-
The typical response time of the PESD1CAN-U is less than 1 ns, ensuring that it can respond quickly to transient voltage events.
