Connectors / Headers and Edge Type Connectors / PESC-04-40-04-01-L-VT
Datasheets
PESC-04-40-04-01-L-VT by: Samtec Inc

Board Connector, 48 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

Part Details for PESC-04-40-04-01-L-VT by Samtec Inc

Results Overview of PESC-04-40-04-01-L-VT by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

PESC-04-40-04-01-L-VT Information

PESC-04-40-04-01-L-VT by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for PESC-04-40-04-01-L-VT

Part # Distributor Description Stock Price Buy
DISTI # 97AH5103
Newark ".100" Powerstrip /40 A Signal/Power Combo Socket Strip" Rohs Compliant: Yes |Samtec PESC-04-40-04-01-L-VT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $24.7400
  • 10 $23.0000
  • 25 $21.0600
  • 50 $17.9900
  • 100 $13.9000
$13.9000 / $24.7400 Buy Now
DISTI # 612-PESC-04-40-04-01-L-VT-ND
DigiKey CONN SKT .1" PWR/SNGL COMBO Min Qty: 1 Lead time: 6 Weeks Container: Tray 39
In Stock
  • 1 $22.6500
  • 10 $20.9700
  • 25 $19.2900
  • 50 $16.7700
  • 100 $13.7431
$13.7431 / $22.6500 Buy Now
DISTI # PESC-04-40-04-01-L-VT
Avnet Americas Conn Power Terminal Strip HDR 8Power/40Signal POS Solder ST Thru-Hole 144 Terminal 1 Port - Trays (Alt: PESC-04-40-04-01-L-VT) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 3 Days Container: Tray 0
  • 1 $22.1970
  • 10 $20.2605
  • 30 $15.8482
  • 50 $15.5285
  • 100 $12.8736
$12.8736 / $22.1970 Buy Now
DISTI # 200-PESC04400401LVT
Mouser Electronics Power to the Board .100" PowerStrip(TM)/40 A Signal/Power Combo Socket Strip RoHS: Compliant 52
  • 1 $22.6500
  • 10 $20.9700
  • 25 $19.2900
  • 112 $13.6300
  • 256 $12.7500
  • 512 $12.0600
$12.0600 / $22.6500 Buy Now
DISTI # V36:1790_08586950
Arrow Electronics Conn Socket Strip SKT 8Power/40Signal POS 6.35mm/2.54mm Solder ST Top Entry Thru-Hole PowerStrip™ Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks Date Code: 2513 Americas - 16
  • 1 $22.6500
  • 10 $20.9700
  • 25 $19.2900
  • 50 $16.7700
  • 100 $15.2300
$15.2300 / $22.6500 Buy Now
Onlinecomponents.com .100" PowerStrip™/40 A Signal/Power Combo Socket Strip RoHS: Compliant 112 In Stock
  • 1 $25.1700
  • 10 $20.7800
  • 25 $18.9100
  • 50 $16.3600
  • 100 $13.4100
  • 250 $12.7900
  • 500 $11.2600
$11.2600 / $25.1700 Buy Now
DISTI # 77826623
Verical Conn Socket Strip SKT 8Power/40Signal POS 6.35mm/2.54mm Solder ST Top Entry Thru-Hole PowerStrip™ Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2407 Americas - 108
  • 2 $29.6118
  • 10 $24.4471
  • 25 $22.2471
  • 50 $19.2471
  • 100 $15.7765
$15.7765 / $29.6118 Buy Now
DISTI # 87336471
Verical Conn Socket Strip SKT 8Power/40Signal POS 6.35mm/2.54mm Solder ST Top Entry Thru-Hole PowerStrip™ Tray RoHS: Compliant Min Qty: 2 Package Multiple: 1 Americas - 10
  • 2 $37.6087
  • 3 $33.7000
  • 5 $29.9014
  • 10 $26.2222
$26.2222 / $37.6087 Buy Now
DISTI # 5cd91007cd7c1c4c3866db7e
Samtec .100" PowerStrip™/40 A Signal/Power Combo Socket Strip RoHS: Compliant Min Qty: 1 Lead time: 5 Weeks, 1 Days Container: Tray 0
  • 1 $22.6500
  • 10 $20.9700
  • 25 $19.2900
  • 50 $16.7700
  • 100 $13.6300
  • 250 $12.5900
  • 500 $10.4900
  • 1,000 $8.3900
$8.3900 / $22.6500 Buy Now
DISTI # PESC-04-40-04-01-L-VT
IBS Electronics CONN POWER TERMINAL STRIP HDR 8POWER/40SIGNAL POS SOLDER ST THRU-HOLE 144 TERMINAL 1 PORT Min Qty: 1 Package Multiple: 1 112
  • 1 $32.7210
  • 10 $27.0140
  • 25 $24.5830
  • 50 $21.2680
  • 100 $17.4330
  • 250 $16.6270
  • 500 $14.6380
$14.6380 / $32.7210 Buy Now
DISTI # 000000000003231333
Sager Power to the Board .100 PowerStrip/40 A Signal/Power Combo Socket Strip Min Qty: 1 0
  • 1 $22.6500
  • 10 $20.9700
  • 25 $19.2900
  • 50 $16.7700
  • 100 $13.6300
  • 250 $12.5900
$12.5900 / $22.6500 Buy Now
DISTI # PESC-04-40-04-01-L-VT
Avnet Abacus Conn Power Terminal Strip HDR 8Power40Signal POS Solder ST ThruHole 144 Terminal 1 Port (Alt: PESC-04-40-04-01-L-VT) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics .100" PowerStrip™/40 A Signal/Power Combo Socket Strip RoHS: Compliant 112 In Stock
  • 1 $25.1700
  • 10 $20.7800
  • 25 $18.9100
  • 50 $16.3600
  • 100 $13.4100
  • 250 $12.7900
  • 500 $11.2600
$11.2600 / $25.1700 Buy Now

Part Details for PESC-04-40-04-01-L-VT

PESC-04-40-04-01-L-VT CAD Models

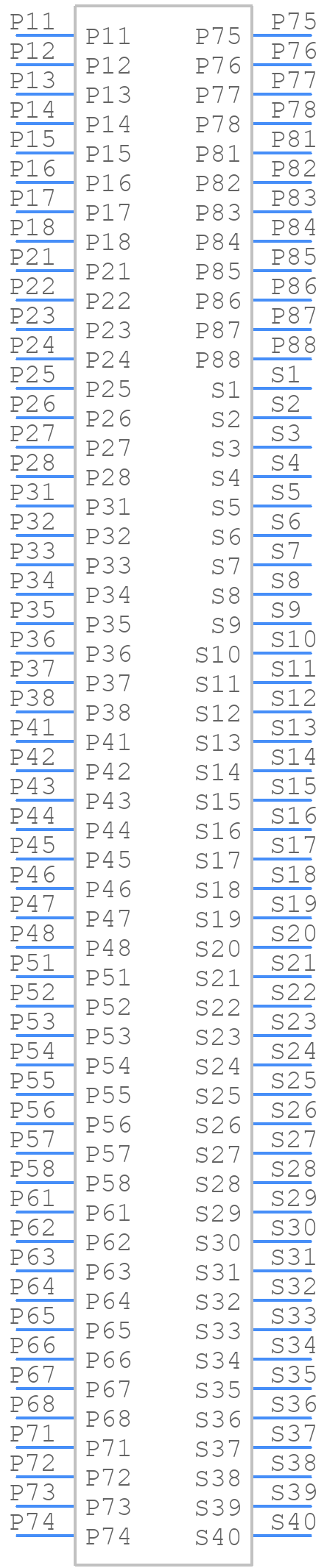

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

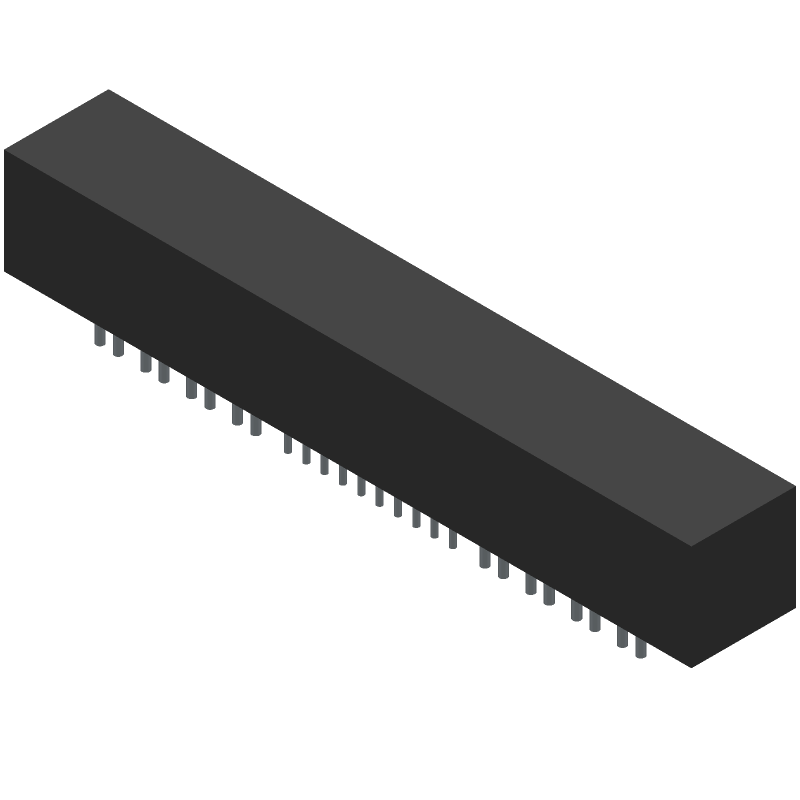

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

PESC-04-40-04-01-L-VT Part Data Attributes

Parametric Data
PESC-04-40-04-01-L-VT Samtec Inc
Buy Now Datasheet
Compare Parts:
PESC-04-40-04-01-L-VT Samtec Inc Board Connector, 48 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Factory Lead Time 2 Weeks, 3 Days
Samacsys Manufacturer SAMTEC
Additional Feature TERMINAL PITCH FOR POWER CONTACT: 6.35MM
Body Breadth 0.472 inch
Body Depth 0.497 inch
Body Length 3.75 inch
Body/Shell Style SOCKET
Connector Type BOARD CONNECTOR
Contact Arrangement S40P8
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Matte Tin (Sn)
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style HYBRID
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mixed Contacts YES
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 4
Number of Rows Loaded 4
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Plating Thickness 10u inch
Polarization Key POLARIZED HOUSING
Rated Current (Power) 22.9 A
Rated Current (Signal) 5.7 A
Reference Standard UL
Terminal Length 0.097 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 48

PESC-04-40-04-01-L-VT Related Parts

PESC-04-40-04-01-L-VT Frequently Asked Questions (FAQ)

  • The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.

  • Yes, the PESC-04-40-04-01-L-VT connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.

  • The maximum operating temperature for the PESC-04-40-04-01-L-VT connector is 125°C (257°F) according to Samtec's datasheet.

  • The PESC-04-40-04-01-L-VT connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends following their guidelines for environmental testing and ensuring proper sealing to prevent moisture ingress.

  • The mating cycle life of the PESC-04-40-04-01-L-VT connector is 500 cycles minimum according to Samtec's datasheet.
