PEH200KD5220MB2 Information
PEH200KD5220MB2 by KEMET Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for PEH200KD5220MB2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40P0703
|
Newark | Capacitor, 22000Uf, 40V, 35X95, Capacitance:22000Μf, Voltage Rating:40V, Product Range:Peh200 Series, Lifetime @ Temperature:60000 Hours @ 85°C, Capacitance Tolerance:± 20%, Capacitor Terminals:Radial Leaded, Diameter:35Mm, Lead Rohs Compliant: Yes |Kemet PEH200KD5220MB2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$25.5800 / $38.1900 | Buy Now |
|
DISTI #
399-5652-ND
|
DigiKey | CAP ALUM 22000UF 20% 40V SCREW Min Qty: 1 Lead time: 31 Weeks Container: Bulk |
57 In Stock |
|
$22.7997 / $35.2800 | Buy Now |
|
DISTI #
PEH200KD5220MB2
|
Avnet Americas | Aluminum Electrolytic Capacitor, 22000 uF, 40 V, ? 20%, Screw - Boxed Product (Development Kits) (Alt: PEH200KD5220MB2) RoHS: Compliant Min Qty: 100 Package Multiple: 50 Lead time: 21 Weeks, 0 Days Container: Box | 0 |
|
RFQ | |
|
DISTI #
80-PEH200KD5220MB2
|
Mouser Electronics | Aluminum Electrolytic Capacitors - Screw Terminal 40V 22000uF Screw Te With Mounting Stud RoHS: Compliant | 0 |
|
$22.7100 / $33.6000 | Order Now |
|
DISTI #
70395440
|
RS | 22000uF 40V dc ALUM Electrolytic Cap Can - Screw Terminals, Radial, PEH200 Series Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$28.8000 / $32.0000 | RFQ |
|
|
Bristol Electronics | 250 |
|
RFQ | ||
|
DISTI #
PEH200KD5220MB2
|
TTI | Aluminum Electrolytic Capacitors - Screw Terminal 40V 22000uF Screw Te With Mounting Stud RoHS: Compliant pbFree: Pb-Free Min Qty: 100 Package Multiple: 50 Container: Bulk | Americas - 0 |
|
$22.0400 | Buy Now |
|
DISTI #
PEH200KD5220MB2
|
Avnet Abacus | Aluminum Electrolytic Capacitor 22000 uF 40 V 20 Screw (Alt: PEH200KD5220MB2) RoHS: Compliant Min Qty: 100 Package Multiple: 50 Lead time: 31 Weeks, 0 Days | Abacus - 50 |
|
Buy Now | |
|
DISTI #
A451GK223M040A
|
Avnet Abacus | Aluminum Electrolytic Capacitor 22000 uF 40 V 20 Screw (Alt: A451GK223M040A) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 8 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for PEH200KD5220MB2

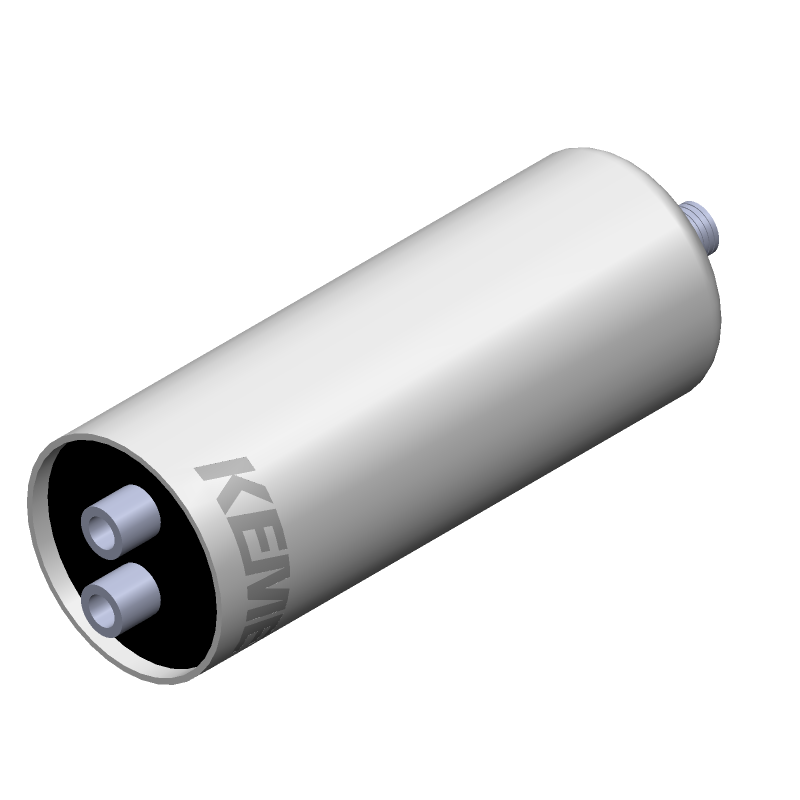

PEH200KD5220MB2 CAD Models
PEH200KD5220MB2 Part Data Attributes
|
|
PEH200KD5220MB2
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
PEH200KD5220MB2
KEMET Corporation
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 40V, 20% +Tol, 20% -Tol, 22000uF, Stud Mount, CAN, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Package Description | CAN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.40 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | KEMET | |
| Capacitance | 22000 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 35 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| ESR | 12 mΩ | |
| Leakage Current | 6.64 mA | |
| Length | 95 mm | |
| Mounting Feature | STUD MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Screw Ends | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 40 V | |
| Ripple Current | 17100 mA | |
| Surface Mount | NO | |
| Terminal Shape | SCREW |
