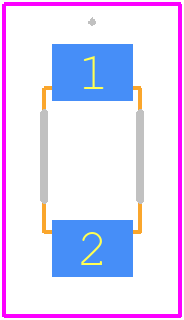

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDZVTFTR2.0B by ROHM Semiconductor
Results Overview of PDZVTFTR2.0B by ROHM Semiconductor
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
PDZVTFTR2.0B Information
PDZVTFTR2.0B by ROHM Semiconductor is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PDZVTFTR2.0B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
94AC7725
|
Newark | Zener Diode, 2V, 1W, Sod-128, Zener Voltage Nom:2V, Power Dissipation:1W, Diode Case Style:Sod-128, No. Of Pins:2Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:Pdzvtf Series, Qualification:Aec-Q101Rohs Compliant: Yes |Rohm PDZVTFTR2.0B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 5 |
|
$0.1300 / $0.4400 | Buy Now |
|
DISTI #
32AJ8472
|
Newark | Zener Diode, 2V, 1W, Sod-128, Zener Voltage Vz Typ:2V, Power Dissipation Pd:1W, Diode Case Style:Sod-128, Zener Tolerance ±:-, No. Of Pins:2Pins, Operating Temperature Max:150°C, Product Range:Pdzvtf Series, Automotive Qualification Rohs Compliant: Yes |Rohm PDZVTFTR2.0B RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0920 / $0.0980 | Buy Now |
|
DISTI #
PDZVTFTR2.0BCT-ND
|
DigiKey | DIODE ZENER 2.12V 1W PMDTM Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
9129 In Stock |
|
$0.0925 / $0.4300 | Buy Now |
|
DISTI #
94AC7725
|
Avnet Americas | Zener Single Diode, 2 V, 1 W, SOD-128, 2 Pins, 150 ?C, Surface Mount - Product that comes on tape, but is not reeled (Alt: 94AC7725) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks, 4 Days Container: Ammo Pack | 5 Partner Stock |
|
$0.2000 / $0.4470 | Buy Now |
|
DISTI #
755-PDZVTFTR2.0B
|
Mouser Electronics | Zener Diodes 2-2.24V 40mA SOD-128, PMDTM RoHS: Compliant | 2866 |
|
$0.0920 / $0.4300 | Buy Now |
|
DISTI #
69267651
|
Verical | Zener Diode Single 2.12V 6% 25Ohm 1000mW Automotive 2-Pin PMDT-M T/R Min Qty: 475 Package Multiple: 1 Date Code: 2318 | Americas - 3420 |
|
$0.1440 / $0.2730 | Buy Now |
|
DISTI #
65123297
|
Verical | Zener Diode Single 2.12V 6% 25Ohm 1000mW Automotive 2-Pin PMDT-M T/R Min Qty: 421 Package Multiple: 1 Date Code: 2201 | Americas - 2985 |
|
$0.1688 / $0.1865 | Buy Now |
|
|
Quest Components | 2388 |
|
$0.2080 / $0.5200 | Buy Now | |
|
DISTI #
PDZVTFTR2.0B
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: No Min Qty: 25 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 3420 |
|
$0.0869 / $0.2730 | Buy Now |
Part Details for PDZVTFTR2.0B
PDZVTFTR2.0B CAD Models
PDZVTFTR2.0B Part Data Attributes
|
|
PDZVTFTR2.0B
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
PDZVTFTR2.0B
ROHM Semiconductor
Zener Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 24 Weeks, 4 Days | |
| Date Of Intro | 2017-04-04 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Reference Standard | AEC-Q101 | |
| Reference Voltage-Nom | 2 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5.67% | |
| Working Test Current | 40 mA |
