PDZ9.1BGWX Information
PDZ9.1BGWX by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PDZ9.1BGWX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
PDZ9.1BGWX-ND
|
DigiKey | DIODE ZENER 9.1V 365MW SOD123 Min Qty: 3000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0170 / $0.0260 | Buy Now |
|
DISTI #
PDZ9.1BGWX
|
Avnet Americas | - Tape and Reel (Alt: PDZ9.1BGWX) RoHS: Compliant Min Qty: 45000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0182 / $0.0186 | Buy Now |
|
DISTI #
771-PDZ9.1BGWX
|
Mouser Electronics | Zener Diodes Single Zener diodes RoHS: Compliant | 0 |
|
$0.0170 / $0.1900 | Order Now |
|
|
Rochester Electronics | PDZ9.1BGW - General-Purpose Zener Diode RoHS: Compliant Status: Active Min Qty: 1 | 38785 |
|
$0.0166 / $0.0268 | Buy Now |
|
DISTI #
PDZ9.1BGWX
|
TTI | Zener Diodes Single Zener diodes RoHS: Compliant pbFree: Pb-Free Min Qty: 33000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0151 / $0.0168 | Buy Now |
|
DISTI #
PDZ9.1BGWX
|
Avnet Asia | PDZ9.1BGW/SOD123/SOD2 (Alt: PDZ9.1BGWX) RoHS: Compliant Min Qty: 45000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days | 0 |
|
$0.0193 / $0.0216 | Buy Now |
Part Details for PDZ9.1BGWX

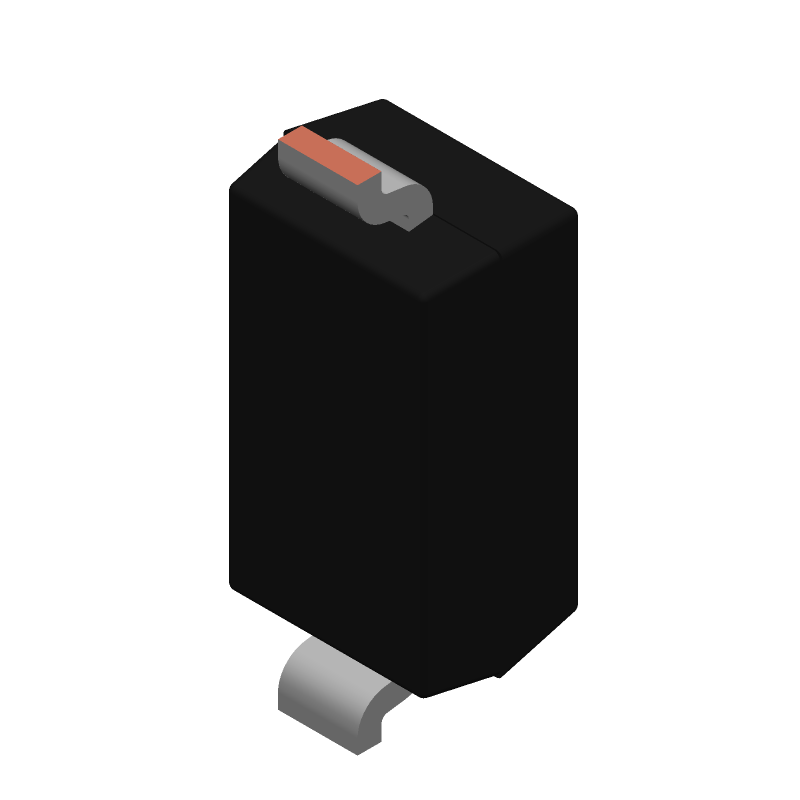

PDZ9.1BGWX CAD Models
PDZ9.1BGWX Part Data Attributes
|
|
PDZ9.1BGWX
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PDZ9.1BGWX
Nexperia
PDZ-GW series - Single Zener diodes in a SOD123 package@en-us
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Package Description | SOD-123, 2 PIN | |
| Manufacturer Package Code | SOD123 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 10 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Knee Impedance-Max | 60 Ω | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.365 W | |
| Reference Standard | IEC-60134 | |
| Reference Voltage-Nom | 9.1 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Test Voltage | 6 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Temp Coeff-Max | 5.5 mV/°C | |
| Voltage Tol-Max | 2% | |
| Working Test Current | 5 mA |
