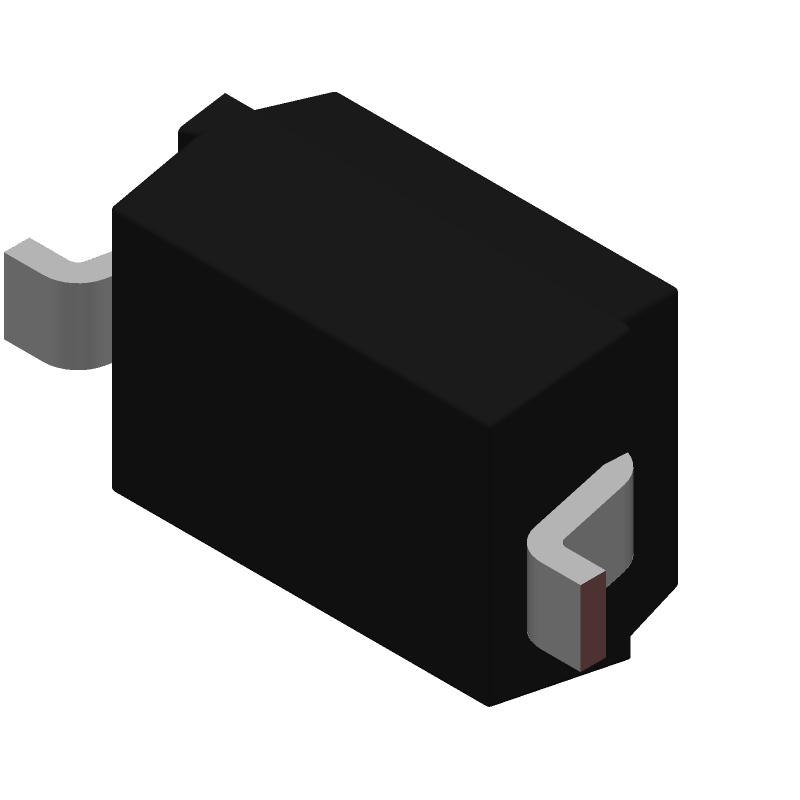

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDZ9.1B-QF by Nexperia
Results Overview of PDZ9.1B-QF by Nexperia
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
PDZ9.1B-QF Information
PDZ9.1B-QF by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PDZ9.1B-QF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-PDZ9.1B-QFTR-ND
|
DigiKey | DIODE ZENER 9.1V 400MW SOD323 Min Qty: 10000 Lead time: 8 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0163 / $0.0268 | Buy Now |
|
DISTI #
PDZ9.1B-QF
|
Avnet Americas | Diode Zener Single 9.04V 2% 400mW 2-Pin SOD-323 T/R - Tape and Reel (Alt: PDZ9.1B-QF) RoHS: Compliant Min Qty: 50000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0240 / $0.0245 | Buy Now |
|
DISTI #
771-PDZ9.1B-QF
|
Mouser Electronics | Zener Diodes Single Zener diodes RoHS: Compliant | 0 |
|
$0.0170 / $0.1900 | Order Now |
|
DISTI #
PDZ9.1B-QF
|
TTI | Zener Diodes Single Zener diodes RoHS: Compliant pbFree: Pb-Free Min Qty: 30000 Package Multiple: 10000 Container: Reel | Americas - 0 |
|
$0.0152 / $0.0204 | Buy Now |
|
DISTI #
PDZ9.1B-QF
|
Avnet Silica | Diode Zener Single 904V 2 400mW 2Pin SOD323 TR (Alt: PDZ9.1B-QF) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
PDZ9.1B-QF
|
EBV Elektronik | Diode Zener Single 904V 2 400mW 2Pin SOD323 TR (Alt: PDZ9.1B-QF) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for PDZ9.1B-QF
PDZ9.1B-QF CAD Models
PDZ9.1B-QF Part Data Attributes
|
|
PDZ9.1B-QF
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PDZ9.1B-QF
Nexperia
PDZ-B-Q series - Single Zener diodes@en-us SOD 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOD | |
| Package Description | SC-76, SOD-323, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD323 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 10 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| Knee Impedance-Max | 60 Ω | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.4 W | |
| Reference Standard | AEC-Q101; IEC-60134 | |
| Reference Voltage-Nom | 9.1 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Test Voltage | 6 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Voltage Temp Coeff-Max | 5.5 mV/°C | |
| Voltage Tol-Max | 2% | |
| Working Test Current | 5 mA |
