PDZ3.6BGWJ Information
PDZ3.6BGWJ by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PDZ3.6BGWJ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-PDZ3.6BGWJCT-ND
|
DigiKey | DIODE ZENER 3.6V 365MW SOD123 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
8128 In Stock |
|
$0.0164 / $0.1200 | Buy Now |
|
DISTI #
PDZ3.6BGWJ
|
Avnet Americas | PDZ3.6BGW/SOD123/SOD2 - Tape and Reel (Alt: PDZ3.6BGWJ) RoHS: Compliant Min Qty: 50000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0139 / $0.0155 | Buy Now |
|
DISTI #
771-PDZ3.6BGWJ
|
Mouser Electronics | Zener Diodes Single Zener diodes in a SOD123 package RoHS: Compliant | 9966 |
|
$0.0160 / $0.1200 | Buy Now |
|
DISTI #
V72:2272_17598644
|
Arrow Electronics | Diode Zener Single 3.725V 2% 625mW 2-Pin SOD-123 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 1901 Container: Cut Strips | Americas - 55958 |
|
$0.0073 / $0.0192 | Buy Now |
|
DISTI #
31652142
|
Verical | Diode Zener Single 3.725V 2% 625mW 2-Pin SOD-123 T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 863 Package Multiple: 1 Date Code: 1901 | Americas - 55958 |
|
$0.0073 / $0.0110 | Buy Now |
|
|
Rochester Electronics | PDZ3.6BGW - General-purpose Zener diodes RoHS: Compliant Status: Active Min Qty: 1 | 9900 |
|
$0.0166 / $0.0268 | Buy Now |
|
DISTI #
PDZ3.6BGWJ
|
TTI | Zener Diodes Single Zener diodes in a SOD123 package RoHS: Compliant pbFree: Pb-Free Min Qty: 40000 Package Multiple: 10000 Container: Reel | Americas - 0 |
|
$0.0158 | Buy Now |
|
DISTI #
PDZ3.6BGWJ
|
Avnet Silica | PDZ36BGWSOD123SOD2 (Alt: PDZ3.6BGWJ) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
PDZ3.6BGWJ
|
EBV Elektronik | PDZ36BGWSOD123SOD2 (Alt: PDZ3.6BGWJ) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for PDZ3.6BGWJ

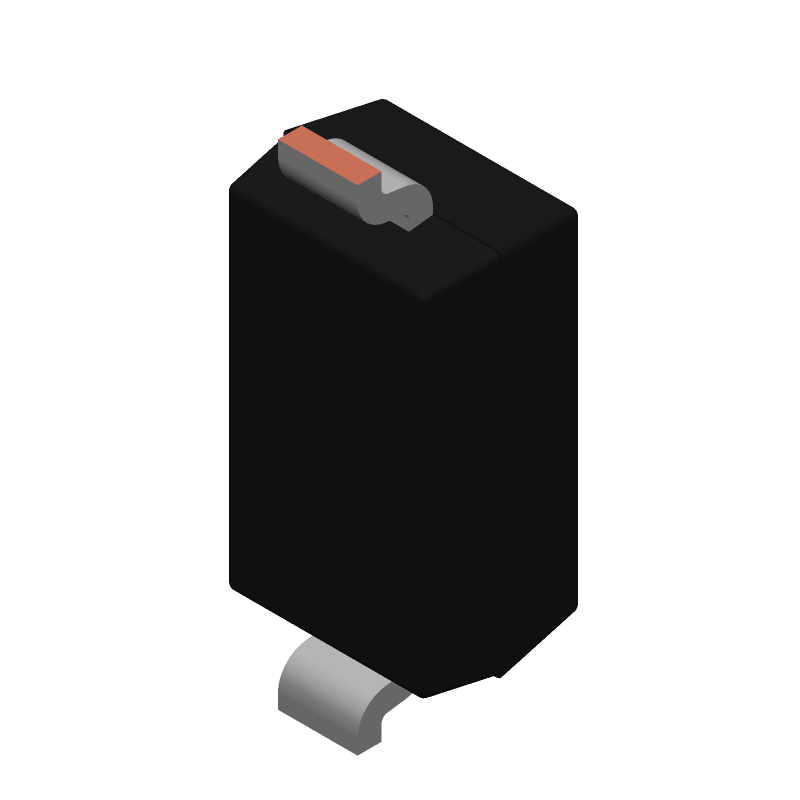

PDZ3.6BGWJ CAD Models
PDZ3.6BGWJ Part Data Attributes
|
|
PDZ3.6BGWJ
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PDZ3.6BGWJ
Nexperia
PDZ-GW series - Single Zener diodes in a SOD123 package@en-us
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Package Description | SOD-123, 2 PIN | |
| Manufacturer Package Code | SOD123 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 90 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Knee Impedance-Max | 500 Ω | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.365 W | |
| Reference Standard | IEC-60134 | |
| Reference Voltage-Nom | 3.6 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Test Voltage | 1 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Temp Coeff-Max | -2.4 mV/°C | |
| Voltage Tol-Max | 2% | |
| Working Test Current | 5 mA |
PDZ3.6BGWJ Frequently Asked Questions (FAQ)
-
Nexperia recommends a footprint with a minimum pad size of 0.5 mm x 0.5 mm and a spacing of 0.5 mm between pads. A larger pad size can be used for improved solderability.
-
Use a soldering temperature of 260°C (max) and a soldering time of 10 seconds (max). Ensure the PCB is clean and free of oxidation. Use a solder with a melting point above 217°C.
-
Nexperia recommends a maximum voltage derating of 10% to ensure reliable operation. This means that for a 3.6 V rated device, the maximum allowed voltage is 3.24 V.
-
Yes, PDZ3.6BGWJ is rated for operation up to 150°C. However, the device's performance and reliability may degrade at higher temperatures. Consult Nexperia's application notes for guidance on high-temperature operation.
-
PDZ3.6BGWJ has an integrated ESD protection diode. However, it's still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage.
