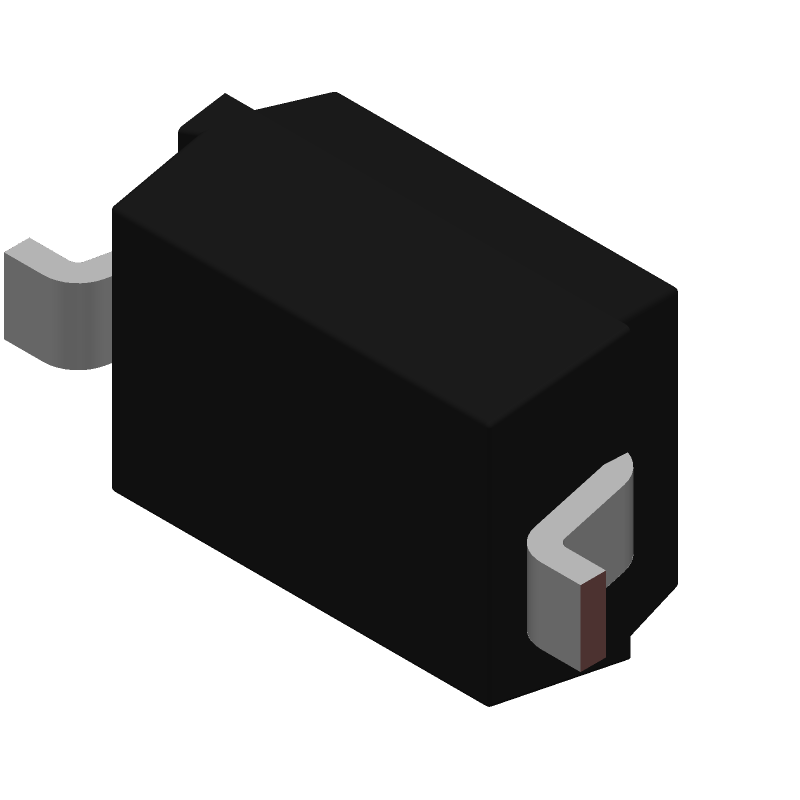

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDZ3.6B-QF by Nexperia
Results Overview of PDZ3.6B-QF by Nexperia
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
PDZ3.6B-QF Information
PDZ3.6B-QF by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for PDZ3.6B-QF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
PDZ3.6B-QF
|
Avnet Silica | Diode Zener Single 36V 2 400mW 2Pin SOD323 TR (Alt: PDZ3.6B-QF) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 | Silica - 0 |
|
Buy Now | |
|
DISTI #
PDZ3.6B-QF
|
EBV Elektronik | Diode Zener Single 36V 2 400mW 2Pin SOD323 TR (Alt: PDZ3.6B-QF) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 | EBV - 0 |
|
Buy Now |
Part Details for PDZ3.6B-QF
PDZ3.6B-QF CAD Models
PDZ3.6B-QF Part Data Attributes
|
|
PDZ3.6B-QF
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PDZ3.6B-QF
Nexperia
PDZ-B-Q series - Single Zener diodes@en-us SOD 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOD | |
| Package Description | SC-76, SOD-323, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD323 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 90 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| Knee Impedance-Max | 500 Ω | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.4 W | |
| Reference Standard | AEC-Q101; IEC-60134 | |
| Reference Voltage-Nom | 3.6 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Test Voltage | 1 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Voltage Temp Coeff-Max | -2.4 mV/°C | |
| Voltage Tol-Max | 2% | |
| Working Test Current | 5 mA |
