Part Details for PDTA114YQAZ by Nexperia
Results Overview of PDTA114YQAZ by Nexperia
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
PDTA114YQAZ Information
PDTA114YQAZ by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PDTA114YQAZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-PDTA114YQAZ-1727-ND
|
DigiKey | TRANS PREBIAS Min Qty: 9521 Lead time: 1 Weeks Container: Bulk MARKETPLACE PRODUCT |
124966 In Stock |
|
$0.0300 | Buy Now |
|
DISTI #
PDTA114YQAZ-ND
|
DigiKey | TRANS PREBIAS PNP 50V 0.1A 3DFN Min Qty: 5000 Lead time: 8 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0255 / $0.0421 | Buy Now |
|
DISTI #
PDTA114YQAZ
|
Avnet Americas | Trans Digital BJT PNP 50V 4-Pin DFN T/R - Tape and Reel (Alt: PDTA114YQAZ) RoHS: Compliant Min Qty: 30000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0226 / $0.0234 | Buy Now |
|
DISTI #
771-PDTA114YQAZ
|
Mouser Electronics | Digital Transistors 50 V, 100 mA PNP resistor-equipped transistors RoHS: Compliant | 0 |
|
$0.0260 / $0.2600 | Order Now |
|
DISTI #
86137518
|
Verical | Trans Digital BJT PNP 50V 0.1A 440mW 3-Pin DFN-D EP T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 13393 Package Multiple: 1 Date Code: 1801 | Americas - 124966 |
|
$0.0235 / $0.0280 | Buy Now |
|
|
Rochester Electronics | PDTA114YQA - Small Signal Bipolar Transistor, 0.1A, 50V, PNP RoHS: Compliant Status: Active Min Qty: 1 | 124966 |
|
$0.0188 / $0.0303 | Buy Now |
|
DISTI #
PDTA114YQAZ
|
TTI | Digital Transistors 50 V, 100 mA PNP resistor-equipped transistors RoHS: Compliant pbFree: Pb-Free Min Qty: 30000 Package Multiple: 5000 Container: Reel | Americas - 0 |
|
$0.0240 / $0.0290 | Buy Now |
Part Details for PDTA114YQAZ

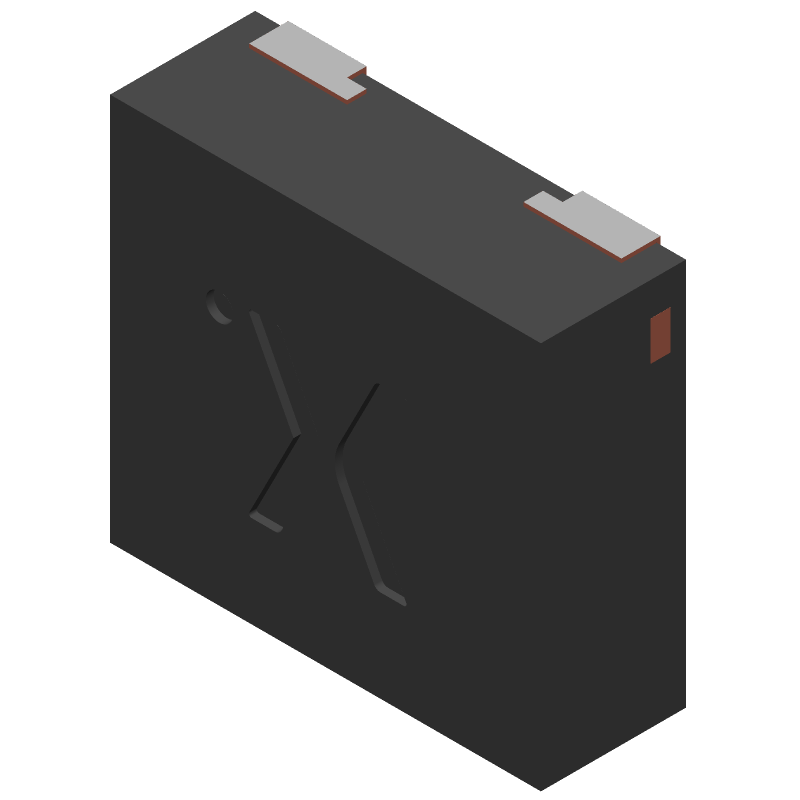

PDTA114YQAZ CAD Models
PDTA114YQAZ Part Data Attributes
|
|
PDTA114YQAZ
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PDTA114YQAZ
Nexperia
PDTA143X/123J/143Z/114YQA series - 50 V, 100 mA PNP resistor-equipped transistors@en-us DFN 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | DFN | |
| Package Description | DFN1010D-3, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT1215 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | BUILT IN BIAS RESISTANCE RATIO IS 4.7 | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SINGLE WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-30 Code | R-PDSO-N3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Reference Standard | AEC-Q101; IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 180 MHz |
