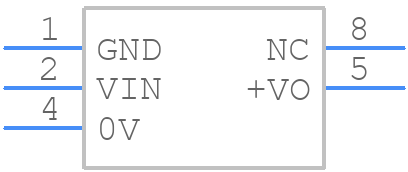

Part Symbol
-

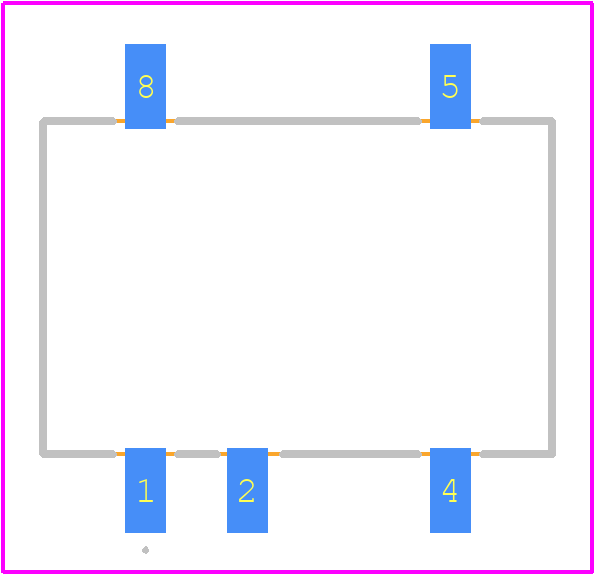

Footprint
-

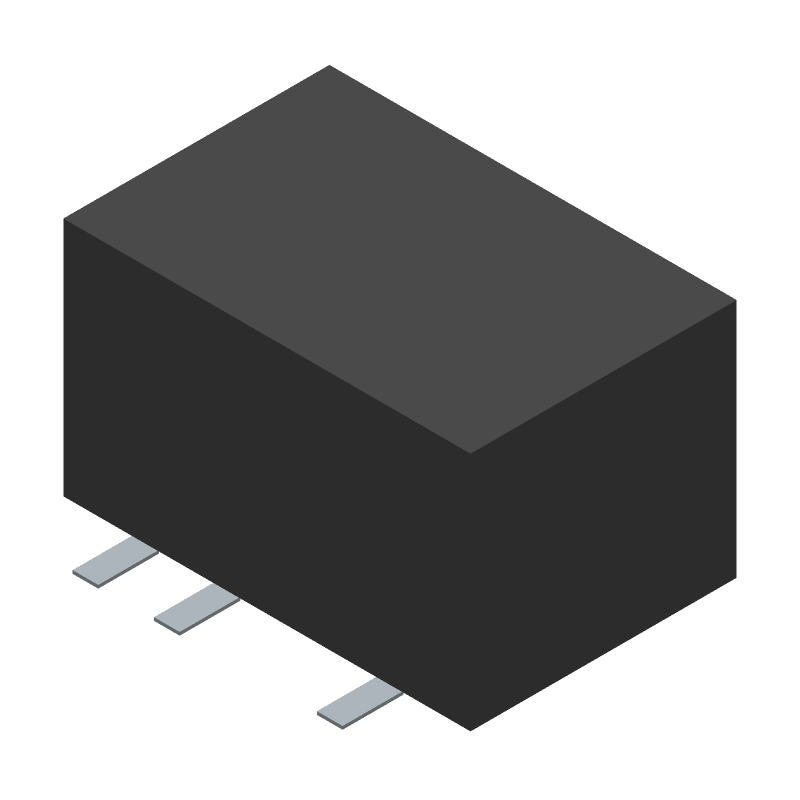

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDS2-S5-S3-M-TR by CUI Inc
Results Overview of PDS2-S5-S3-M-TR by CUI Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
PDS2-S5-S3-M-TR Information
PDS2-S5-S3-M-TR by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 5962-9762101QEA | Texas Instruments | Quad LVDS Transmitter 16-CDIP -55 to 125 | |
| 5962-9762201VFA | Texas Instruments | Quad LVDS Receiver 16-CFP -55 to 125 | |
| SN65LV1023ARHBT | Texas Instruments | 10:1 LVDS Serdes Transmitter 100 - 660Mbps 32-VQFN -40 to 85 |
Price & Stock for PDS2-S5-S3-M-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
102-5735-1-ND
|
DigiKey | DC DC CONVERTER 3.3V 2W Min Qty: 1 Lead time: 37 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
194 In Stock |
|
$6.5997 / $8.0600 | Buy Now |
|
|
Onlinecomponents.com | 2 W, 1:1 Input Range, Single Unregulated Output, 8 Pin SMT, 1500 Vdc Isolation, Dc-Dc Converter - 3.3 Vdc, 0.4 A, 1.32 W, 4.5~5.5 Vdc Input Range RoHS: Compliant |
55 Partner Stock |
|
$0 | Buy Now |
|
|
Neutron USA | Isolated DC/DC Converters 2W 5V to 3.3V 400mA | 0 |
|
$41.2500 | Buy Now |
Part Details for PDS2-S5-S3-M-TR
PDS2-S5-S3-M-TR CAD Models
PDS2-S5-S3-M-TR Part Data Attributes
|
|
PDS2-S5-S3-M-TR
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PDS2-S5-S3-M-TR
CUI Inc
DC-DC UNREG PWR SUPPLY MODULE
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | CUI INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | CUI Inc. | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDMA-G5 | |
| Length | 12.7 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 7.5 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1.32 W | |
| Trim/Adjustable Output | NO | |
| Width | 8.3 mm |
PDS2-S5-S3-M-TR Frequently Asked Questions (FAQ)
-
CUI recommends a PCB layout with a solid ground plane and thermal vias under the module to improve heat dissipation. A minimum of 2oz copper thickness is recommended.
-
Yes, the PDS2-S5-S3-M-TR is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications.
-
CUI recommends derating the output power by 2.5% per degree Celsius above 40°C to ensure reliable operation. Additionally, ensure good airflow and thermal management around the module.
-
CUI recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, rated for the input voltage range, to filter the input voltage and reduce ripple.
-
Yes, the PDS2-S5-S3-M-TR can be used in redundant or parallel configurations to achieve higher power output or improved reliability. However, consult with CUI's application engineers to ensure proper design and implementation.
