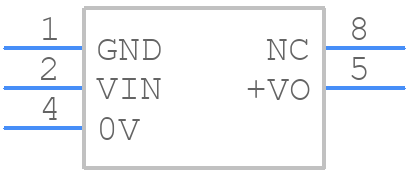

Part Symbol
-

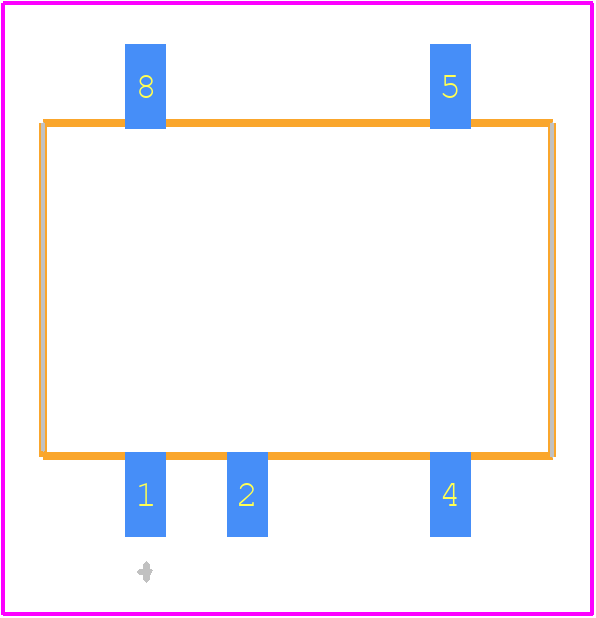

Footprint
-

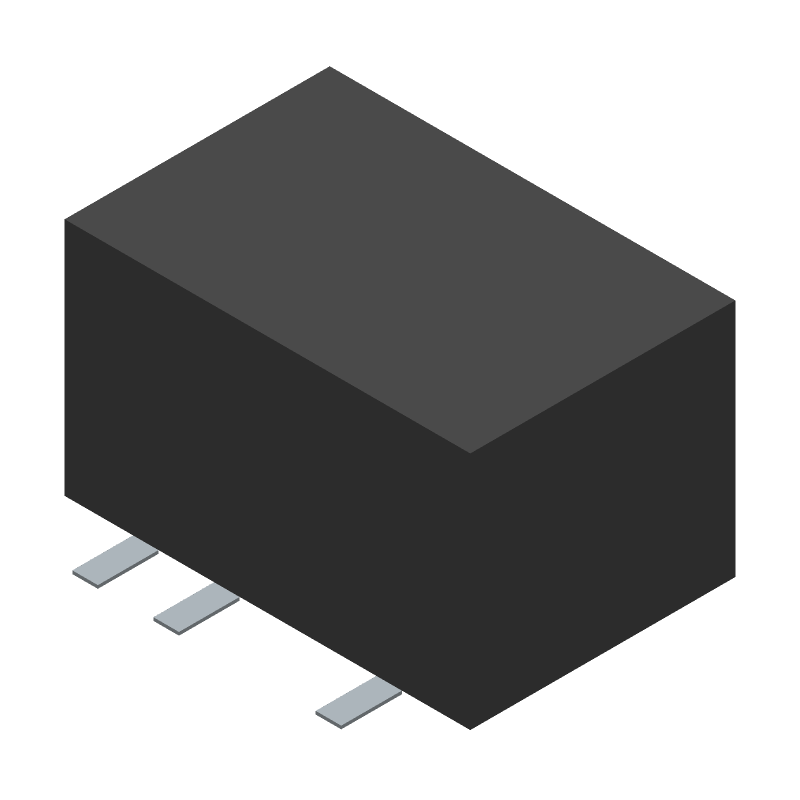

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDS1-S12-S12-M-TR by CUI Inc
Results Overview of PDS1-S12-S12-M-TR by CUI Inc
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Smart Cities
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
PDS1-S12-S12-M-TR Information
PDS1-S12-S12-M-TR by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part Details for PDS1-S12-S12-M-TR
PDS1-S12-S12-M-TR CAD Models
PDS1-S12-S12-M-TR Part Data Attributes
|
|
PDS1-S12-S12-M-TR
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PDS1-S12-S12-M-TR
CUI Inc
IC 1-OUTPUT 1W DC-DC UNREG PWR SUPPLY MODULE, ROHS COMPLIANT, PLASTIC, SMT-8/5, Power Supply Module
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | CUI INC | |
| Part Package Code | MODULE | |
| Pin Count | 8/5 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | CUI Inc. | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Approvals | UL | |
| Efficiency (Main Output) | 80% | |
| Input Voltage-Max | 13.2 V | |
| Input Voltage-Min | 10.8 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDMA-G5 | |
| Length | 12.7 mm | |
| Line Regulation-Max | 1.2% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.084 A | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | GWDIP5/8,.48 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Ripple Voltage (Main Out) | 0.021 Vrms | |
| Seated Height-Max | 7.5 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 8.3 mm |
PDS1-S12-S12-M-TR Frequently Asked Questions (FAQ)
-
CUI recommends a 2-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Ensure a 1mm keep-out zone around the module to prevent thermal interference.
-
CUI recommends following the IEC 61000-4-2 standard for EMC compliance. Ensure proper grounding, use of EMI filters, and shielding to minimize electromagnetic interference.
-
The derating curve is available upon request from CUI. It shows the module's performance degradation with increasing temperature. For optimal performance, operate the module within the recommended temperature range (0°C to 40°C).
-
Yes, the PDS1-S12-S12-M-TR is designed to withstand vibrations up to 10G (10-2000 Hz). However, ensure proper mounting and screw torque to prevent damage.
-
The MTBF rating for the PDS1-S12-S12-M-TR is >1 million hours, calculated according to MIL-HDBK-217F.
