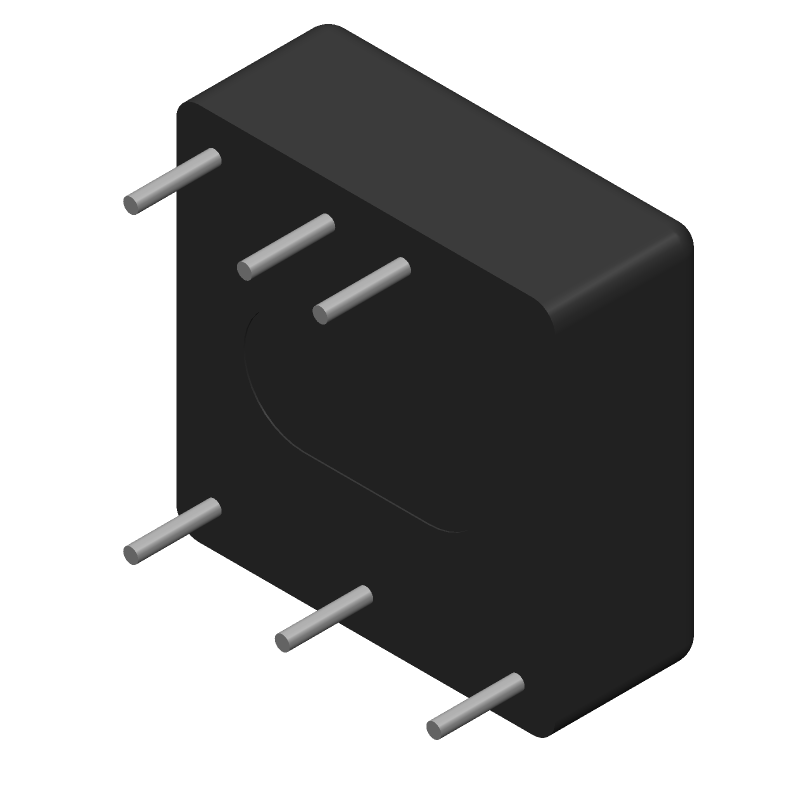

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDQ30-Q48-D12-D by CUI Inc
Results Overview of PDQ30-Q48-D12-D by CUI Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PDQ30-Q48-D12-D Information
PDQ30-Q48-D12-D by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PDQ30-Q48-D12-D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
102-3900-ND
|
DigiKey | DC DC CONVERTER +/-12V 30W Min Qty: 1 Lead time: 31 Weeks Container: Tube |
194 In Stock |
|
$44.9894 / $50.2500 | Buy Now |
|
DISTI #
490-PDQ30-Q48-D12-D
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 30W 18-75Vin +/-12V +/-1250mA Iso DIP RoHS: Compliant | 36 |
|
$44.9800 / $50.1900 | Buy Now |
|
DISTI #
84867614
|
Verical | Module DC-DC 48VIN 2-OUT -12V/12V 1.25A/-1.25A 30W 6-Pin DIP Min Qty: 1 Package Multiple: 1 Date Code: 2231 | Americas - 38 |
|
$47.9412 / $60.3412 | Buy Now |
Part Details for PDQ30-Q48-D12-D
PDQ30-Q48-D12-D CAD Models
PDQ30-Q48-D12-D Part Data Attributes
|
|
PDQ30-Q48-D12-D
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PDQ30-Q48-D12-D
CUI Inc
12/-12 Vdc, 1.25/-1.25 A, 30 W, 18 ~ 75 Vdc
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CUI INC | |
| Package Description | DIP-6 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | CUI Inc. | |
| Additional Feature | ALSO AVAILABLE WITH -12V DC OUTPUT | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 75 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | S-XDMA-P6 | |
| Length | 25.4 mm | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 55 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 12.18 V | |
| Output Voltage-Min | 11.82 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | SQUARE | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 10.7 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 30 W | |
| Trim/Adjustable Output | NO | |
| Width | 25.4 mm |
PDQ30-Q48-D12-D Frequently Asked Questions (FAQ)
-
A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the module's thermal pad, with multiple vias to dissipate heat effectively.
-
To ensure reliable start-up, ensure that the input voltage is within the specified range, and the input capacitance is sufficient to handle the inrush current. Also, ensure that the output voltage is not pre-biased before applying input power.
-
The maximum allowable capacitance on the output is 2200uF. Exceeding this value may affect the converter's stability and performance.
-
While the converter is rated for operation up to 80°C, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
-
To troubleshoot output voltage deviations, check the input voltage, output load, and ambient temperature. Verify that the output voltage sense lines are properly connected and not noisy. Also, ensure that the converter is not operating in a fault condition.
