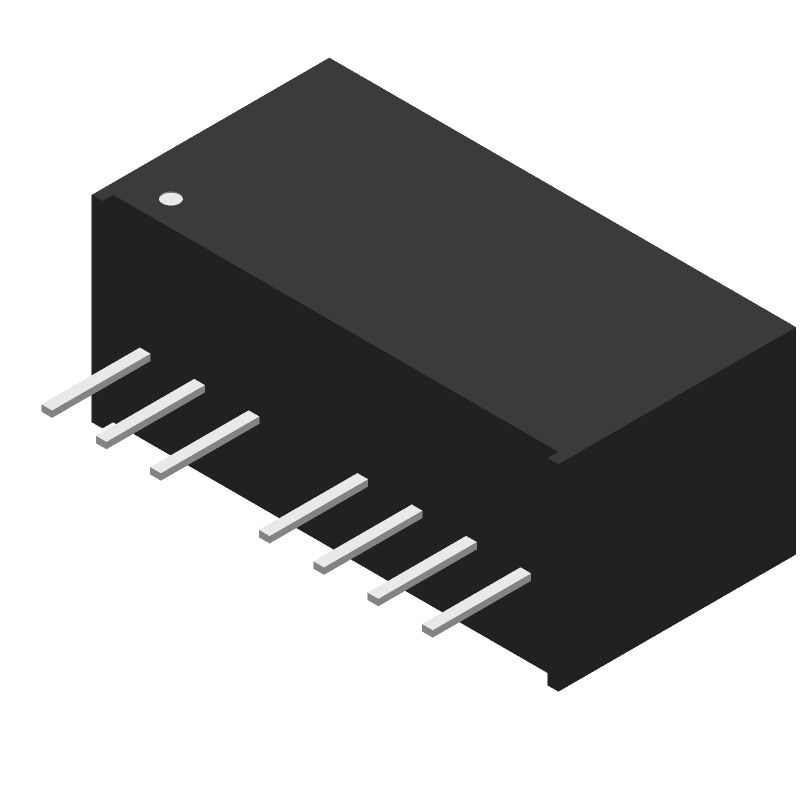

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDQ2-D5-D12-S by CUI Inc
Results Overview of PDQ2-D5-D12-S by CUI Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PDQ2-D5-D12-S Information
PDQ2-D5-D12-S by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74AC11000DR | Texas Instruments | Quadruple 2-Input Positive-NAND Gates 16-SOIC -40 to 85 | |
| 74AC11008PWR | Texas Instruments | Quadruple 2-Input Positive-AND Gates 16-TSSOP -40 to 85 | |
| 74AC11138N | Texas Instruments | 3-Line to 8-Line Decoders/Demultiplexers 16-PDIP -40 to 85 |
Price & Stock for PDQ2-D5-D12-S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
102-3960-ND
|
DigiKey | DC DC CONVERTER +/-12V 2W Min Qty: 1 Lead time: 31 Weeks Container: Tube | Temporarily Out of Stock |
|
$12.4472 / $14.4200 | Buy Now |
|
DISTI #
490-PDQ2-D5-D12-S
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 4.5-9Vin +/-12Vout +/-83mA 2W Iso SIP8 RoHS: Compliant | 28 |
|
$12.1600 / $13.8600 | Buy Now |
|
|
Onlinecomponents.com | DC-DC Converter - 12/-12 VDC - 0.083/-0.083 A - 2 W - 4.5~9 VDC Input Range - 8 Pin SIP RoHS: Compliant | Alternative Product Available |
|
$10.9000 / $12.9700 | Buy Now |
|
DISTI #
000000000006360392
|
Sager | Isolated DC/DC Converters - Through Hole 4.5-9Vin +/-12Vout +/-83mA 2W Iso SIP8 Min Qty: 1 | 0 |
|
$11.0700 / $12.7700 | Buy Now |
|
|
Master Electronics | DC-DC Converter - 12/-12 VDC - 0.083/-0.083 A - 2 W - 4.5~9 VDC Input Range - 8 Pin SIP RoHS: Compliant | Alternative Product Available |
|
$10.9000 / $12.9700 | Buy Now |
Part Details for PDQ2-D5-D12-S
PDQ2-D5-D12-S CAD Models
PDQ2-D5-D12-S Part Data Attributes
|
|
PDQ2-D5-D12-S
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PDQ2-D5-D12-S
CUI Inc
12/-12 Vdc, 0.083/-0.083 A, 2 W, 4.5~9 Vdc Input Range
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CUI INC | |
| Package Description | SIP-8/7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2018-06-13 | |
| Samacsys Manufacturer | CUI Inc. | |
| Additional Feature | ALSO HAS OUTPUT VOLTAGE-NOM= -12V | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 9 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PSMA-T7 | |
| JESD-609 Code | e3 | |
| Length | 21.8 mm | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 12.18 V | |
| Output Voltage-Min | 11.82 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 11.6 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.5 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 2 W | |
| Trim/Adjustable Output | NO | |
| Width | 9.2 mm |
PDQ2-D5-D12-S Frequently Asked Questions (FAQ)
-
CUI recommends a 4-layer PCB with a solid ground plane and a separate layer for the input and output signals to minimize EMI and noise. A minimum of 2 oz copper thickness is recommended for the PCB.
-
CUI recommends derating the output power by 2.5% per degree Celsius above 40°C to ensure reliable operation. Additionally, ensure good airflow and avoid blocking the vents on the converter.
-
CUI recommends a maximum output capacitance of 2200uF to prevent oscillation and ensure stability. Exceeding this value may cause the converter to malfunction.
-
Yes, the PDQ2-D5-D12-S can be used in redundant or parallel configurations, but CUI recommends consulting their application notes and seeking guidance from their technical support team to ensure proper implementation.
-
The typical efficiency of the PDQ2-D5-D12-S is around 85-90% depending on the input voltage and output load. Refer to the datasheet for detailed efficiency curves.
