PDQ2-D12-S12-S Information
PDQ2-D12-S12-S by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 64991-S12-3RLF | Amphenol Communications Solutions | 64991-S12-3RLF-GUIDE PIN 100 SHRD HDR |
Price & Stock for PDQ2-D12-S12-S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
102-3964-ND
|
DigiKey | DC DC CONVERTER 12V 2W Min Qty: 28 Lead time: 31 Weeks Container: Tube | Temporarily Out of Stock |
|
$13.3289 | Buy Now |
|
DISTI #
490-PDQ2-D12-S12-S
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 9-18Vin 12Vout 167mA 2W Iso SIP8 RoHS: Compliant | 0 |
|
$11.2100 / $12.1200 | Order Now |
|
|
Onlinecomponents.com | DC-DC Converter - 12 VDC - 0.167 A - 2 W - 9~18 VDC Input Range - 8 Pin SIP RoHS: Compliant | Alternative Product Available |
|
$10.9000 / $12.9700 | Buy Now |
|
DISTI #
000000000006360374
|
Sager | Isolated DC/DC Converters - Through Hole 9-18Vin 12Vout 167mA 2W Iso SIP8 Min Qty: 1 | 0 |
|
$11.0700 / $12.7700 | Buy Now |
|
|
Master Electronics | DC-DC Converter - 12 VDC - 0.167 A - 2 W - 9~18 VDC Input Range - 8 Pin SIP RoHS: Compliant | Alternative Product Available |
|
$10.9000 / $12.9700 | Buy Now |
Part Details for PDQ2-D12-S12-S

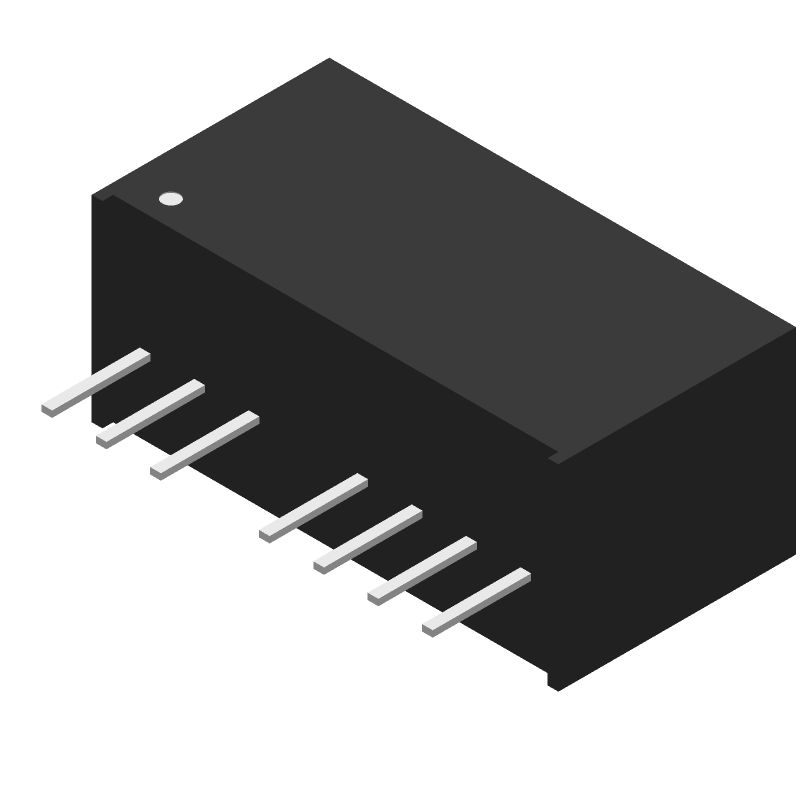

PDQ2-D12-S12-S CAD Models
PDQ2-D12-S12-S Part Data Attributes
|
|
PDQ2-D12-S12-S
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PDQ2-D12-S12-S
CUI Inc
12 Vdc, 0.167 A, 2 W, 9~18 Vdc Input Range
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CUI INC | |
| Package Description | SIP-8/7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2018-06-13 | |
| Samacsys Manufacturer | CUI Inc. | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PSMA-T7 | |
| JESD-609 Code | e3 | |
| Length | 21.8 mm | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 12.18 V | |
| Output Voltage-Min | 11.82 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 11.6 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.5 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 2 W | |
| Trim/Adjustable Output | NO | |
| Width | 9.2 mm |
