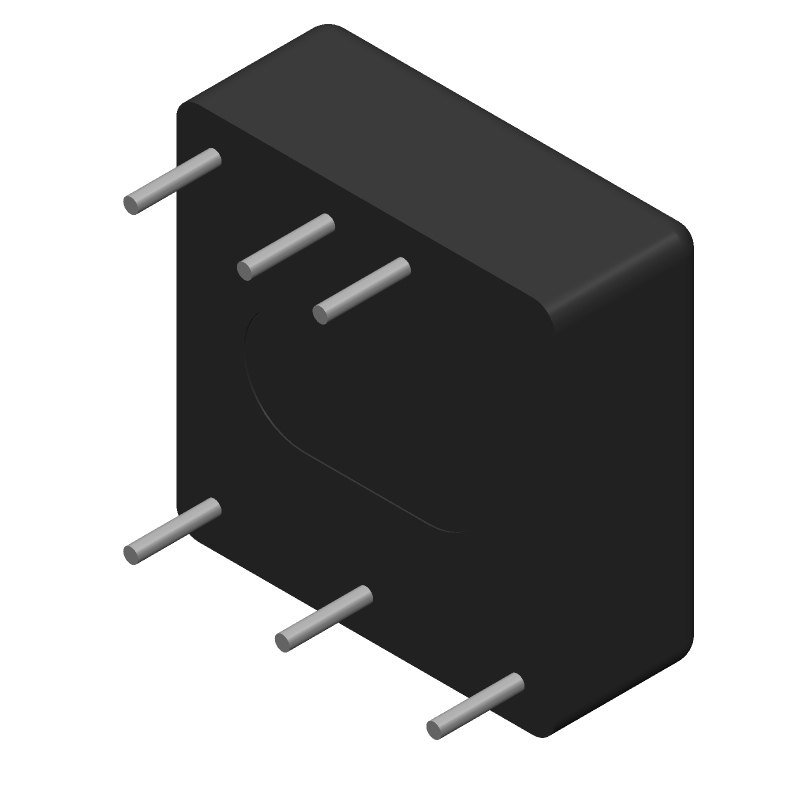

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PDQ10-Q48-S3-D by CUI Inc
Results Overview of PDQ10-Q48-S3-D by CUI Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
PDQ10-Q48-S3-D Information
PDQ10-Q48-S3-D by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PDQ10-Q48-S3-D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
25AM1259
|
Newark | Dc-Dc Isolated, 10 W, 18 ~ 75 Vdc Input, 3.3 Vdc, |Cui PDQ10-Q48-S3-D RoHS: Not Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Bulk | 13 |
|
$31.0200 / $31.8800 | Buy Now |
|
DISTI #
2266-PDQ10-Q48-S3-D-ND
|
DigiKey | DC DC CONVERTER 3.3V 10W Min Qty: 3 Lead time: 31 Weeks Container: Tube MARKETPLACE PRODUCT |
13 In Stock |
|
$27.6700 / $29.8800 | Buy Now |
|
DISTI #
102-3875-ND
|
DigiKey | DC DC CONVERTER 3.3V 10W Min Qty: 3 Lead time: 31 Weeks Container: Tube | Temporarily Out of Stock |
|
$31.4800 | Buy Now |
|
DISTI #
490-PDQ10-Q48-S3-D
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 10W 18-75Vin 3.3Vout 2.5A Iso Reg DIP RoHS: Compliant | 13 |
|
$32.5700 / $33.2400 | Buy Now |
|
|
Onlinecomponents.com | 10 W, 4:1 Input Range, Single/Dual Regulated Output, 1500 Vdc Isolation, Dc-Dc Converter - 3.3 Vdc, 2.5 A, 8.25 W, 18 ~ 75 Vdc RoHS: Compliant |
13 Partner Stock |
|
$26.2300 / $34.4400 | Buy Now |
|
DISTI #
PDQ10-Q48-S3-D
|
IBS Electronics | ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 18-75VIN 3.3VOUT 2.5A ISO REG DIP Min Qty: 12 Package Multiple: 1 | 0 |
|
$33.0590 / $33.5660 | Buy Now |
|
DISTI #
000000000006360355
|
Sager | Isolated DC/DC Converters - Through Hole 10W 18-75Vin 3.3Vout 2.5A Iso Reg DIP Min Qty: 1 | 0 |
|
$26.1100 / $30.1200 | Buy Now |
|
|
Master Electronics | 10 W, 4:1 Input Range, Single/Dual Regulated Output, 1500 Vdc Isolation, Dc-Dc Converter - 3.3 Vdc, 2.5 A, 8.25 W, 18 ~ 75 Vdc RoHS: Compliant |
13 Partner Stock |
|
$26.2300 / $34.4400 | Buy Now |
Part Details for PDQ10-Q48-S3-D
PDQ10-Q48-S3-D CAD Models
PDQ10-Q48-S3-D Part Data Attributes
|
|
PDQ10-Q48-S3-D
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PDQ10-Q48-S3-D
CUI Inc
3.3 Vdc, 2.5 A, 8.25 W, 18 ~ 75 Vdc
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CUI INC | |
| Package Description | DIP-6 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | CUI Inc. | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 75 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | S-XDMA-T6 | |
| Length | 25.4 mm | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 3.63 V | |
| Output Voltage-Min | 2.97 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | SQUARE | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 10.7 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 8.25 W | |
| Trim/Adjustable Output | YES | |
| Width | 25.4 mm |
