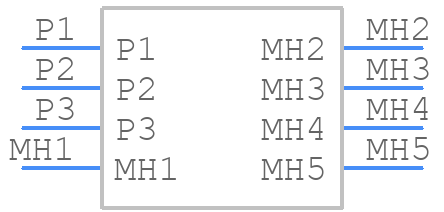

Part Symbol
-

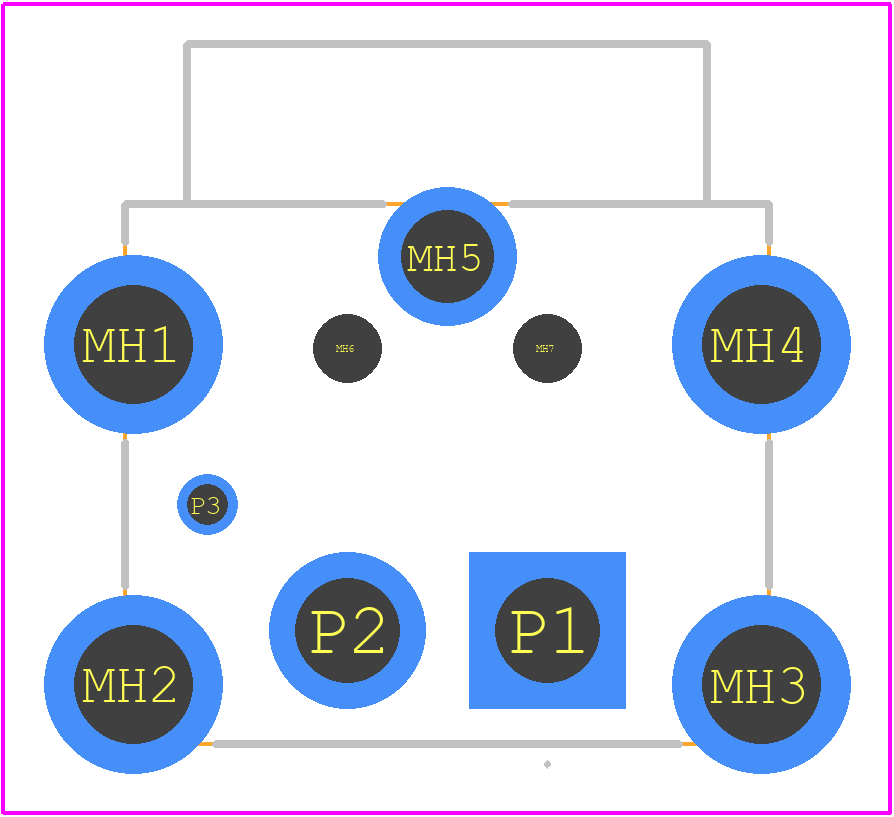

Footprint
-

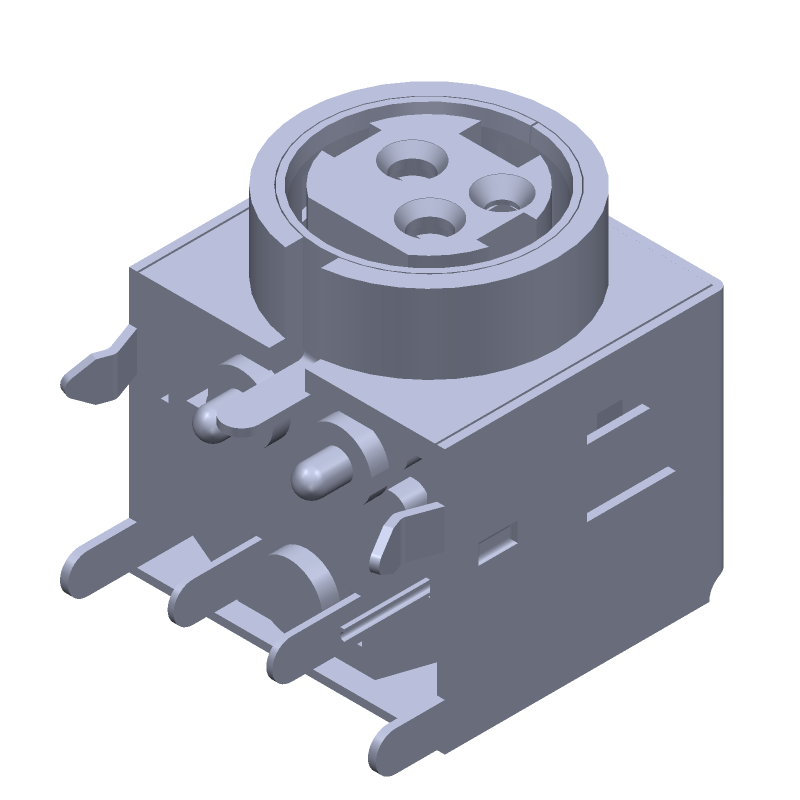

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PD-30S by Same Sky
Results Overview of PD-30S by Same Sky
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
PD-30S Information
PD-30S by Same Sky is a DIN Connector.
DIN Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for PD-30S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CP-7230-ND
|
DigiKey | CONN JACK FMALE 3POS TIN SOLDER Min Qty: 1 Lead time: 10 Weeks Container: Tray |
2113 In Stock |
|
$1.5896 / $2.7800 | Buy Now |
|
DISTI #
490-PD-30S
|
Mouser Electronics | Circular DIN Connectors Power Din Conn eConnectors | 736 |
|
$1.5700 / $2.7800 | Buy Now |
|
DISTI #
V99:2348_17650825
|
Arrow Electronics | Conn DC Power Jack RCP 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Box RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2231 | Americas - 1112 |
|
$1.4670 | Buy Now |
|
DISTI #
V36:1790_17650825
|
Arrow Electronics | Conn DC Power Jack RCP 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Box RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2408 | Americas - 670 |
|
$1.4280 / $2.4050 | Buy Now |
|
|
Onlinecomponents.com | 3 Position, 7.5 A, Horizontal, Through Hole, Shielded, Power DIN Connector RoHS: Compliant |
404 In Stock |
|
$1.4700 / $2.4000 | Buy Now |
|
DISTI #
65209204
|
Verical | Conn DC Power Jack RCP 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Box RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2231 | Americas - 1112 |
|
$1.4670 | Buy Now |
|
DISTI #
87132950
|
Verical | Conn DC Power Jack RCP 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Box RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2408 | Americas - 670 |
|
$1.4280 / $2.4050 | Buy Now |
|
|
Master Electronics | 3 Position, 7.5 A, Horizontal, Through Hole, Shielded, Power DIN Connector RoHS: Compliant |
404 In Stock |
|
$1.4700 / $2.4000 | Buy Now |
Part Details for PD-30S
PD-30S CAD Models
PD-30S Part Data Attributes
|
|
PD-30S
Same Sky
Buy Now
Datasheet
|
Compare Parts:
PD-30S
Same Sky
3 Position, 7.5 A, Horizontal, Through Hole, Shielded, Power DIN Connector
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | CUI DEVICES | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Same Sky | |
| Body/Shell Style | JACK | |
| Connector Type | DIN CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Gender | FEMALE | |
| Contact Material | NOT APPLICABLE | |
| DIN Conformance | YES | |
| EMI Shielded | YES | |
| IEC Conformance | NO | |
| MIL Conformance | NO | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Option | GENERAL PURPOSE | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 3 |
