PCS1206DR0200ET Information
PCS1206DR0200ET by Ohmite Mfg Co is a Metal Alloy Resistor.
Metal Alloy Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for PCS1206DR0200ET
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41AH5324
|
Newark | Res, 0R02, 1W, 1206, Metal Alloy, Resistance:0.02Ohm, Product Range:Pcs Series, Resistor Case/Package:1206 [3216 Metric], Power Rating:1W, Resistance Tolerance:± 0.5%, Resistor Technology:Metal Alloy, Product Length:3.2Mm Rohs Compliant: Yes |Ohmite PCS1206DR0200ET RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 911 |
|
$0.0470 | Buy Now |
|
DISTI #
273-PCS1206DR0200ETCT-ND
|
DigiKey | 1W 0.020 OHMS 0.5% 1206 Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4699 In Stock |
|
$0.2750 / $1.1400 | Buy Now |
|
DISTI #
588-PCS1206DR0200ET
|
Mouser Electronics | Current Sense Resistors - SMD 1W 0.020 OHMS 0.5% RoHS: Compliant | 7826 |
|
$0.2950 / $0.9900 | Buy Now |
|
DISTI #
V36:1790_28699741
|
Arrow Electronics | Res Metal Alloy 1206 0.02 Ohm 0.5% 1W ±50ppm/°C Pad SMD T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 20 Weeks Date Code: 2504 | Americas - 5000 |
|
$0.9121 / $0.9501 | Buy Now |
|
DISTI #
72491031
|
RS | Current Sense Resistors - SMDPCS Series Low Res Val Chip Resistors Min Qty: 5000 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk | 0 |
|
$0.4240 / $0.4990 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.1410 / $0.3438 | Buy Now |
|
DISTI #
87744424
|
Verical | Res Metal Alloy 1206 0.02 Ohm 0.5% 1W ±50ppm/°C Pad SMD T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Date Code: 2504 | Americas - 5000 |
|
$0.9121 / $0.9501 | Buy Now |
|
DISTI #
PCS1206DR0200ET
|
TTI | Current Sense Resistors - SMD 1W 0.020 OHMS 0.5% RoHS: Compliant pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel |
Americas - 10000 In Stock |
|
$0.2570 / $0.2670 | Buy Now |
|
DISTI #
PCS1206DR0200ET
|
Richardson RFPD | METAL FILM RESISTOR RoHS: Compliant Min Qty: 5000 | 0 |
|
$0.1400 / $0.3000 | Buy Now |
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$0.1410 / $0.3438 | Buy Now |
Part Details for PCS1206DR0200ET
PCS1206DR0200ET CAD Models
PCS1206DR0200ET Part Data Attributes
|
|

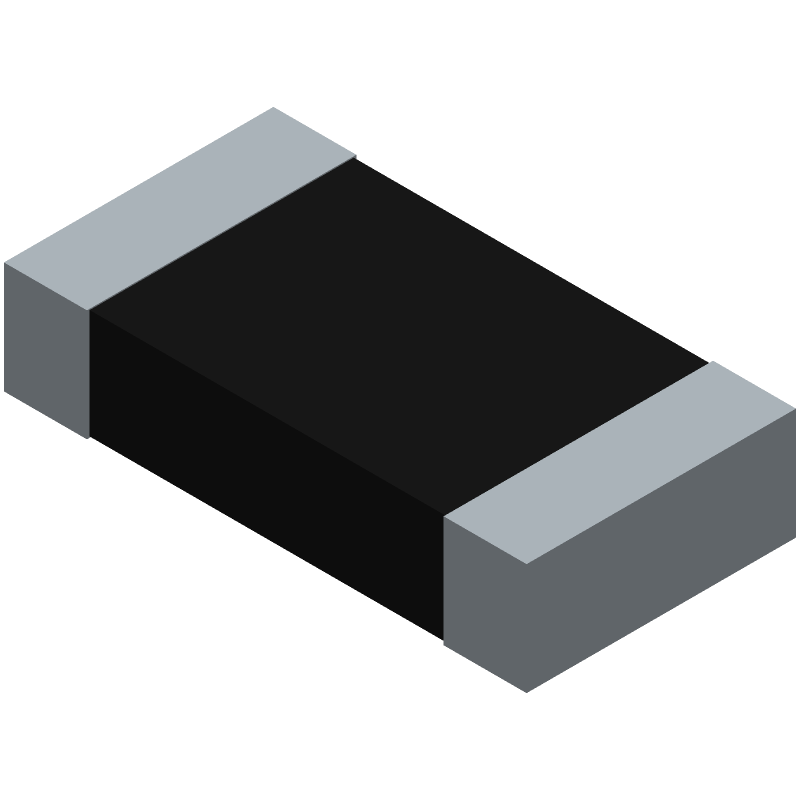

PCS1206DR0200ET
Ohmite Mfg Co
Buy Now
Datasheet
|
Compare Parts:
PCS1206DR0200ET
Ohmite Mfg Co
Fixed Resistor, Metal Alloy, 1W, 0.02ohm, 0.1414V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | OHMITE MANUFACTURING CO | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Ohmite | |
| Additional Feature | HIGH PRECISION | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.43 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 1.65 mm | |
| Packing Method | TR, 7 Inch | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Resistance | 0.02 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Technology | METAL FILM | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 0.5% | |
| Working Voltage | 0.1 V |
PCS1206DR0200ET Frequently Asked Questions (FAQ)
-
The thermal resistance of the PCS1206DR0200ET is typically around 20-30°C/W, depending on the PCB layout and airflow. This information is usually provided in the manufacturer's application notes or can be obtained by contacting Ohmite's technical support.
-
The PCS1206DR0200ET is a general-purpose resistor and not specifically designed for high-frequency applications. While it may work in some high-frequency circuits, its performance may degrade due to parasitic inductance and capacitance. For high-frequency applications, it's recommended to use resistors specifically designed for high-frequency use, such as those with a high self-resonant frequency.
-
The PCS1206DR0200ET has a maximum operating temperature of 150°C, which is relatively high for a standard thick-film resistor. However, its power rating decreases with temperature, and it's essential to derate the power accordingly to ensure reliable operation. For extremely high-temperature applications, consider using resistors with a higher temperature rating, such as those made with thin-film or metal-film technology.
-
The PCS1206DR0200ET is a standard thick-film resistor and may not be suitable for high-vibration or high-shock environments. Ohmite offers specialized resistors with enhanced mechanical robustness, such as their VSH series, which are designed to withstand harsh environmental conditions.
-
Yes, the PCS1206DR0200ET is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental protection.
