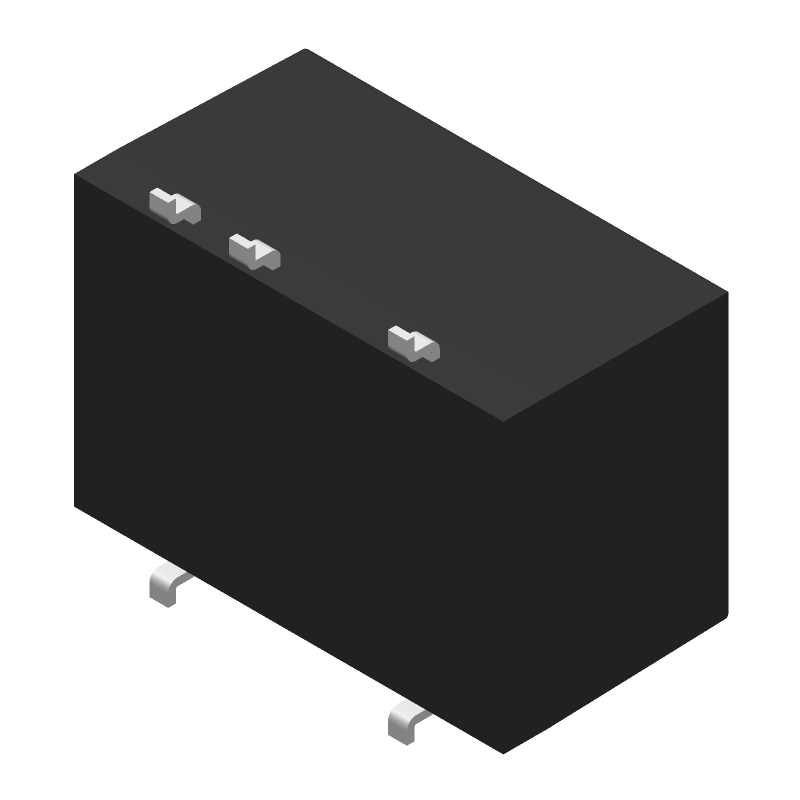

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCN1-S5-S5-M by CUI Inc
Results Overview of PCN1-S5-S5-M by CUI Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
PCN1-S5-S5-M Information
PCN1-S5-S5-M by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PCN1-S5-S5-M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
490-PCN1-S5-S5-M
|
Mouser Electronics | Isolated DC/DC Converters - SMD 4.5-5.5Vin 5Vout 200mA 1W Iso SMT RoHS: Compliant | 420 |
|
$4.4800 / $6.8800 | Buy Now |
|
|
Onlinecomponents.com | 1 W, 1:1 Input Voltage Range, Single/Dual Unregulated Output, 8 Pin SMT, 1,500 Vdc Isolation, Dc-Dc Converter - 5 Vdc, 0.2 A, 1 W, 4.5~5.5 Vdc Input Range RoHS: Compliant | Alternative Product Available |
|
$4.4500 / $7.3100 | Buy Now |
|
|
Master Electronics | 1 W, 1:1 Input Voltage Range, Single/Dual Unregulated Output, 8 Pin SMT, 1,500 Vdc Isolation, Dc-Dc Converter - 5 Vdc, 0.2 A, 1 W, 4.5~5.5 Vdc Input Range RoHS: Compliant | Alternative Product Available |
|
$4.4500 / $7.3100 | Buy Now |
Part Details for PCN1-S5-S5-M
PCN1-S5-S5-M CAD Models
PCN1-S5-S5-M Part Data Attributes
|
|
PCN1-S5-S5-M
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PCN1-S5-S5-M
CUI Inc
5 Vdc, 0.2 A, 1 W, 4.5~5.5 Vdc Input Range
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CUI INC | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2018-06-13 | |
| Samacsys Manufacturer | CUI Inc. | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Approvals | EN | |
| Efficiency (Main Output) | 79% | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDMA-G5 | |
| Length | 13.7 mm | |
| Line Regulation-Max | 1.2% | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 200 A | |
| Output Voltage-Max | 5.15 V | |
| Output Voltage-Min | 4.85 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,5/8LEAD,.44 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | REVERSE POLARITY PROTECTION, SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.0265 Vrms | |
| Screening Level | EN 62368-1 | |
| Seated Height-Max | 7.95 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 9.2 mm |
Alternate Parts for PCN1-S5-S5-M
This table gives cross-reference parts and alternative options found for PCN1-S5-S5-M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCN1-S5-S5-M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IE0305D-H | XP Power | Check for Price | DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, DIP-4 | PCN1-S5-S5-M vs IE0305D-H |
| PEM1A-S5-S5-S | CUI Inc | Check for Price | 5 Vdc, 0.2 A, 1 W, 4.5 ~ 5.5 Vdc Input Range | PCN1-S5-S5-M vs PEM1A-S5-S5-S |
| VEFT1-S5-S5-SMT | CUI Inc | Check for Price | IC 1-OUTPUT 1 W DC-DC UNREG PWR SUPPLY MODULE, ROHS COMPLIANT, PLASTIC, SMD-12/10, Power Supply Module | PCN1-S5-S5-M vs VEFT1-S5-S5-SMT |
| VEFT1-S5-S5-SMT-TR | CUI Inc | Check for Price | DC-DC Unregulated Power Supply Module | PCN1-S5-S5-M vs VEFT1-S5-S5-SMT-TR |
| R05P05S/R6.4/P/X2 | RECOM Power GmbH | Check for Price | DC-DC Unregulated Power Supply Module, | PCN1-S5-S5-M vs R05P05S/R6.4/P/X2 |
| REM10-505S/ACTRL | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module | PCN1-S5-S5-M vs REM10-505S/ACTRL |
| PDSE1-S5-S5-M-TR | CUI Inc | Check for Price | DC-DC Unregulated Power Supply Module | PCN1-S5-S5-M vs PDSE1-S5-S5-M-TR |
| RB-0505S/P | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, SIP-7/5 | PCN1-S5-S5-M vs RB-0505S/P |
| RB-0505S/HP | RECOM Power GmbH | Check for Price | DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, ROHS COMPLIANT, SIP-7/5 | PCN1-S5-S5-M vs RB-0505S/HP |
PCN1-S5-S5-M Frequently Asked Questions (FAQ)
-
CUI Inc recommends a PCB layout with a solid ground plane, minimal trace lengths, and a decoupling capacitor (e.g., 10uF) between the input and output pins to ensure stable operation and minimize EMI.
-
While the PCN1-S5-S5-M is rated for operation up to 85°C, it's essential to consider the derating curves and thermal management in high-temperature applications. Consult with CUI Inc or a thermal expert to ensure reliable operation.
-
To ensure EMC, follow proper PCB layout and design guidelines, use a metal enclosure, and add EMI filters or shielding if necessary. CUI Inc also recommends consulting with an EMC expert or performing EMC testing to ensure compliance with relevant standards.
-
The PCN1-S5-S5-M can support a maximum capacitive load of 10uF to 22uF, depending on the output voltage and application. Exceeding this limit may cause instability or oscillations. Consult with CUI Inc or a power supply expert for specific guidance.
-
Yes, the PCN1-S5-S5-M can be used in redundant or parallel configurations, but it's crucial to follow CUI Inc's guidelines and recommendations for synchronization, current sharing, and fault detection to ensure reliable operation and avoid potential issues.
