PCN1-S5-S15-M Information
PCN1-S5-S15-M by CUI Inc is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for PCN1-S5-S15-M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
93AJ3877
|
Newark | Dc-Dc Unregulated Power Supply Module |Cui PCN1-S5-S15-M RoHS: Not Compliant Min Qty: 430 Package Multiple: 1 Date Code: 0 Container: Bulk | 85 |
|
$4.5900 | Buy Now |
|
DISTI #
PCN1-S5-S15-M-ND
|
DigiKey | DC DC CONVERTER 15V 1W Min Qty: 430 Lead time: 13 Weeks Container: Tape & Reel (TR) | Limited Supply - Call |
|
$3.7953 | Buy Now |
|
DISTI #
490-PCN1-S5-S15-M
|
Mouser Electronics | Isolated DC/DC Converters - SMD 4.5-5.5Vin 15Vout 67mA 1W Iso SMT RoHS: Compliant | 0 |
|
$3.9300 / $5.4500 | Order Now |
|
|
Onlinecomponents.com | Module DC-DC 5VIN 1-OUT 15V 0.067A 1W 5-Pin SMD Module Standard RoHS: Compliant |
85 Partner Stock |
|
$4.7100 / $7.6500 | Buy Now |
|
|
Master Electronics | Module DC-DC 5VIN 1-OUT 15V 0.067A 1W 5-Pin SMD Module Standard RoHS: Compliant |
85 Partner Stock |
|
$4.7100 / $7.6500 | Buy Now |
Part Details for PCN1-S5-S15-M

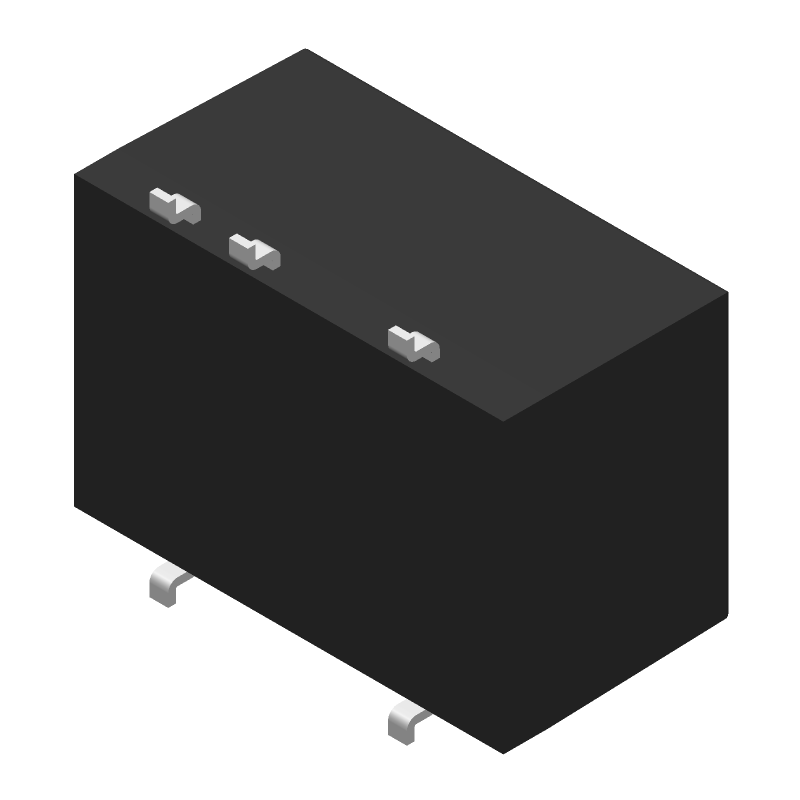

PCN1-S5-S15-M CAD Models
PCN1-S5-S15-M Part Data Attributes
|
|
PCN1-S5-S15-M
CUI Inc
Buy Now
Datasheet
|
Compare Parts:
PCN1-S5-S15-M
CUI Inc
15 Vdc, 0.067 A, 1 W, 4.5~5.5 Vdc Input Range
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CUI INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2018-06-13 | |
| Samacsys Manufacturer | CUI Inc. | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Approvals | EN | |
| Efficiency (Main Output) | 79% | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDMA-G5 | |
| Length | 13.7 mm | |
| Line Regulation-Max | 1.2% | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 67 A | |
| Output Voltage-Max | 15.45 V | |
| Output Voltage-Min | 14.55 V | |
| Output Voltage-Nom | 15 V | |
| Package Body Material | PLASTIC | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,5/8LEAD,.44 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | REVERSE POLARITY PROTECTION, SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.0265 Vrms | |
| Screening Level | EN 62368-1 | |
| Seated Height-Max | 7.95 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Width | 9.2 mm |
