PCL2224V150B Information
PCL2224V150B by Visual Communications Company is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for PCL2224V150B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31AC5962
|
Newark | Pilot Light, 22Mm, Red/Grn, 24V, Led Color:Red, Green, Mounting Hole Dia:22Mm, Forward Current/Color:R 50Ma, G 50Ma, Operating Voltage/Color:R 24V, G 24V, Luminous Intensity/Color:R 75Mcd, G 75Mcd, Ip/Nema Rating:Ip65, Msl:- Rohs Compliant: Yes |Vcc/visual Communications Company PCL2224V150B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 229 |
|
$8.9000 / $14.3700 | Buy Now |
|
DISTI #
PCL2224V150B-ND
|
DigiKey | PMI RND 22MM LED 24V SCREW BLOCK Min Qty: 1 Lead time: 12 Weeks Container: Bulk |
29 In Stock |
|
$8.1125 / $14.3700 | Buy Now |
|
DISTI #
593-PCL2224V150B
|
Mouser Electronics | LED Panel Mount Indicators PMI RND 22mm LED 24V Flat Lens Red/Green RoHS: Compliant | 37 |
|
$8.1900 / $14.3700 | Buy Now |
|
DISTI #
71079002
|
RS | Indicator Panel Mount 22mm Flat RedGreen Lens 24VDC Screw Terminals Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk | 133 |
|
$12.4600 / $14.6600 | Buy Now |
|
|
Future Electronics | PMI22mmLED24VScrewBlockRed/Green RoHS: Compliant pbFree: Yes Min Qty: 15 Package Multiple: 90 Lead time: 12 Weeks Container: Bag | 90Bag |
|
$9.0200 | Buy Now |
|
|
Onlinecomponents.com | PMI 22mm LED 24V Screw Block Red/Green RoHS: Compliant |
37 In Stock |
|
$7.9100 / $8.9400 | Buy Now |
|
DISTI #
86232583
|
Verical | Panel Mount Indicator 22mm LED 24V Screw Block Red/Green RoHS: Compliant Min Qty: 45 Package Multiple: 15 Date Code: 2431 | Americas - 45 |
|
$11.2419 | Buy Now |
|
DISTI #
54441603
|
Verical | Panel Mount Indicator 22mm LED 24V Screw Block Red/Green RoHS: Compliant Min Qty: 15 Package Multiple: 15 Date Code: 2113 | Americas - 30 |
|
$11.3230 / $11.6220 | Buy Now |
|
|
Future Electronics | PMI22mmLED24VScrewBlockRed/Green Min Qty: 90 Package Multiple: 90 |
90 null |
|
$9.0200 | Buy Now |
|
|
Master Electronics | PMI 22mm LED 24V Screw Block Red/Green RoHS: Compliant |
37 In Stock |
|
$7.9100 / $8.9400 | Buy Now |
Part Details for PCL2224V150B

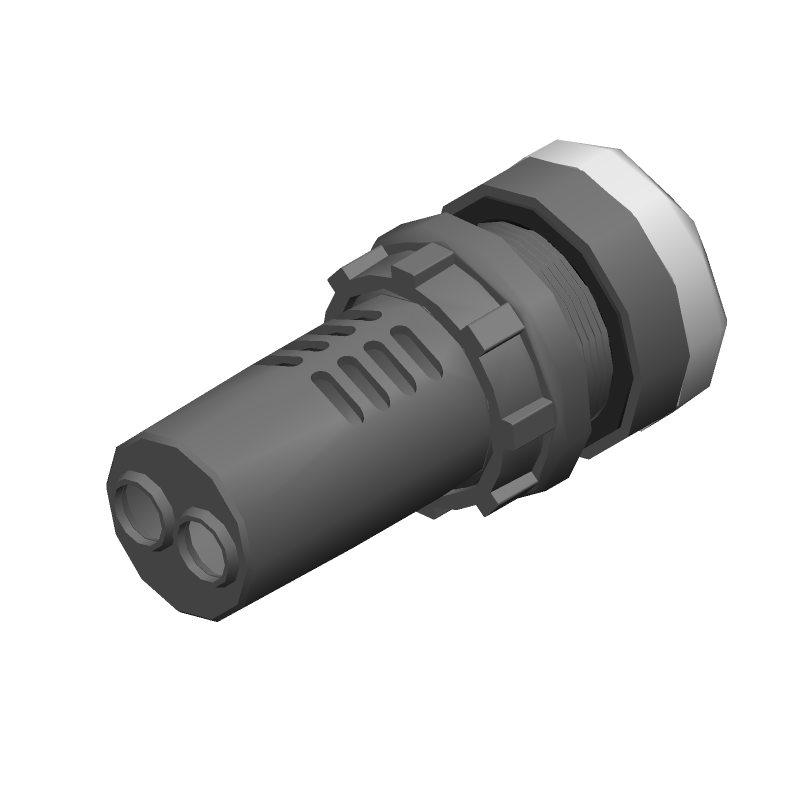

PCL2224V150B CAD Models
PCL2224V150B Part Data Attributes
|
|
PCL2224V150B
Visual Communications Company
Buy Now
Datasheet
|
Compare Parts:
PCL2224V150B
Visual Communications Company
Dual Color LED,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISUAL COMMUNICATIONS COMPANY LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8531.80.90.51 | |
| Date Of Intro | 2017-06-26 | |
| Samacsys Manufacturer | Visual Communications Company | |
| Color | RED/GREEN | |
| Forward Current-Max | 0.05 A | |
| Forward Voltage-Max | 24 V | |
| Lens Type | TRANSPARENT | |
| Luminous Intensity-Min | 0.075 cd | |
| Mounting Feature | PANEL MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 55 °C | |
| Operating Temperature-Min | -25 °C | |
| Optoelectronic Device Type | DUAL COLOR LED | |
| Overall Height | 13.4 mm | |
| Packing Method | BULK | |
| Shape | CYLINDRICAL | |
| Size | 29.2 mm | |
| Surface Mount | NO | |
| Viewing Angle | 110 deg |
