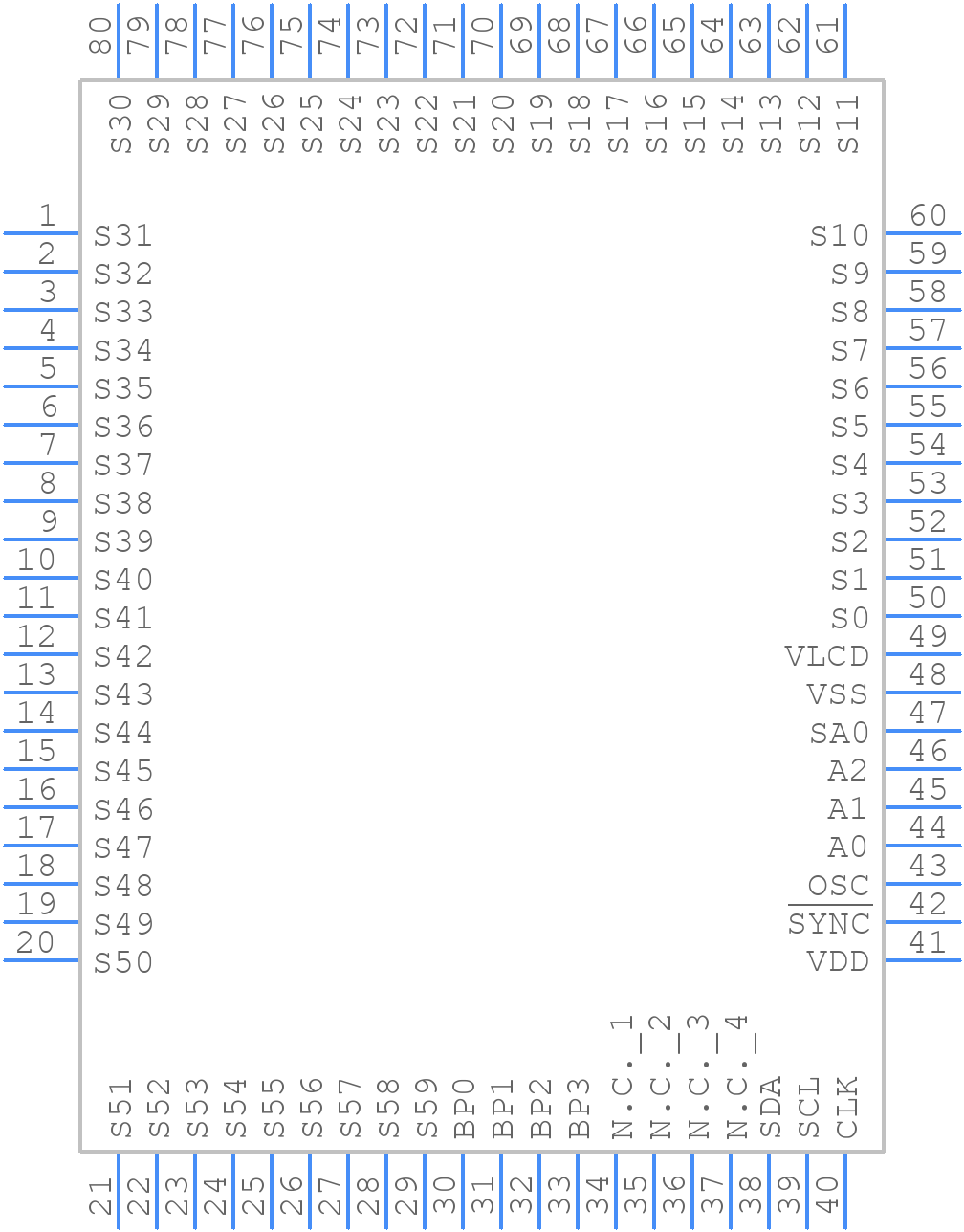

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCF85134HL/1,118 by NXP Semiconductors
Results Overview of PCF85134HL/1,118 by NXP Semiconductors
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Electronic Manufacturing
Automotive
PCF85134HL/1,118 Information
PCF85134HL/1,118 by NXP Semiconductors is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for PCF85134HL/1,118
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71T9822
|
Newark | Lcd Display Drvr, 60Seg, 80Lqfp, No. Of Digits:15, No. Of Segments:60, Driver Case Style:Lqfp, No. Of Pins:80Pins, Supply Voltage Min:1.8V, Supply Voltage Max:5.5V, Interface Type:I2C, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Nxp PCF85134HL/1,118 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1346 |
|
$2.4300 / $3.6800 | Buy Now |
|
DISTI #
72R6227
|
Newark | Universal 60 X 4 Lcd Segment Driver For Multiplex Rates Up To 1:4/ Reel Rohs Compliant: Yes |Nxp PCF85134HL/1,118 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.8300 / $2.3400 | Buy Now |
|
DISTI #
568-5060-1-ND
|
DigiKey | IC DRVR 60 SEGMENT 80LQFP Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4008 In Stock |
|
$1.9928 / $3.7500 | Buy Now |
|
DISTI #
568-5060-6-ND
|
DigiKey | IC DRVR 60 SEGMENT 80LQFP Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel® | Temporarily Out of Stock |
|
Buy Now | |
|
DISTI #
PCF85134HL/1,118
|
Avnet Americas | - Tape and Reel (Alt: PCF85134HL/1,118) Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$1.6816 / $1.8006 | Buy Now |
|
DISTI #
771-PCF85134HL/1-118
|
Mouser Electronics | LCD Drivers UNIVERSAL LCD DRIVER FOR LO MLTIPLX RATE RoHS: Compliant | 18045 |
|
$1.9300 / $3.7500 | Buy Now |
|
DISTI #
75723934
|
Verical | Dot Matrix Display LCD Driver 30Digit 2.5V/3.3V/5V 80-Pin LQFP T/R RoHS: Compliant Min Qty: 15 Package Multiple: 1 Date Code: 2332 | Americas - 970 |
|
$2.1100 / $3.5800 | Buy Now |
|
|
NXP Semiconductors | Universal 60 x 4 LCD segment driver for multiplex rates up to 1:4, Reel 13" Q1/T1 RoHS: Compliant pbFree: Yes Lead time: 16 Weeks, 0 Days Container: Reel | 1000 |
|
$1.9900 | Buy Now |
|
DISTI #
PCF85134HL/1,118
|
Avnet Silica | Display LCD Driver 60 Segments 18 V to 55 V I2C Interface LQFP80 (Alt: PCF85134HL/1,118) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
PCF85134HL/1,118
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 970 |
|
$1.6900 / $3.5800 | Buy Now |
Part Details for PCF85134HL/1,118
PCF85134HL/1,118 CAD Models
PCF85134HL/1,118 Part Data Attributes
|
|
PCF85134HL/1,118
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
PCF85134HL/1,118
NXP Semiconductors
PCF85134 - Universal 60 x 4 LCD segment driver for multiplex rates up to 1:4 QFP 80-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | QFP | |
| Package Description | LQFP-80 | |
| Pin Count | 80 | |
| Manufacturer Package Code | SOT315-1 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | NXP | |
| Data Input Mode | SERIAL | |
| Display Mode | DOT MATRIX; SEGMENT | |
| Interface IC Type | LIQUID CRYSTAL DISPLAY DRIVER | |
| JESD-30 Code | S-PQFP-G80 | |
| JESD-609 Code | e3 | |
| Length | 12 mm | |
| Moisture Sensitivity Level | 1 | |
| Multiplexed Display Capability | YES | |
| Number of Digits/Characters | 7-DIGIT | |
| Number of Functions | 1 | |
| Number of Segments | 60 | |
| Number of Terminals | 80 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP80,.55SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.8 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 12 mm | |
| fmax-Min | 0.4 MHz |
PCF85134HL/1,118 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range is 2.5V to 5.5V, with a typical voltage of 3.3V.
-
To ensure reliable communication, use a pull-up resistor on the SCL line, and ensure the clock frequency is within the recommended range of 10 kHz to 400 kHz.
-
The maximum clock frequency is 400 kHz, but it's recommended to operate at a frequency below 100 kHz for reliable communication.
-
The POR and BOD features are enabled by default. To disable them, tie the POR/BOD pin to VCC. For proper operation, ensure the power supply is stable and within the recommended voltage range.
-
The internal oscillator is used for the real-time clock (RTC) and watchdog timer. To use it, connect the X1 and X2 pins to a crystal oscillator, and configure the device to use the internal oscillator as the clock source.
