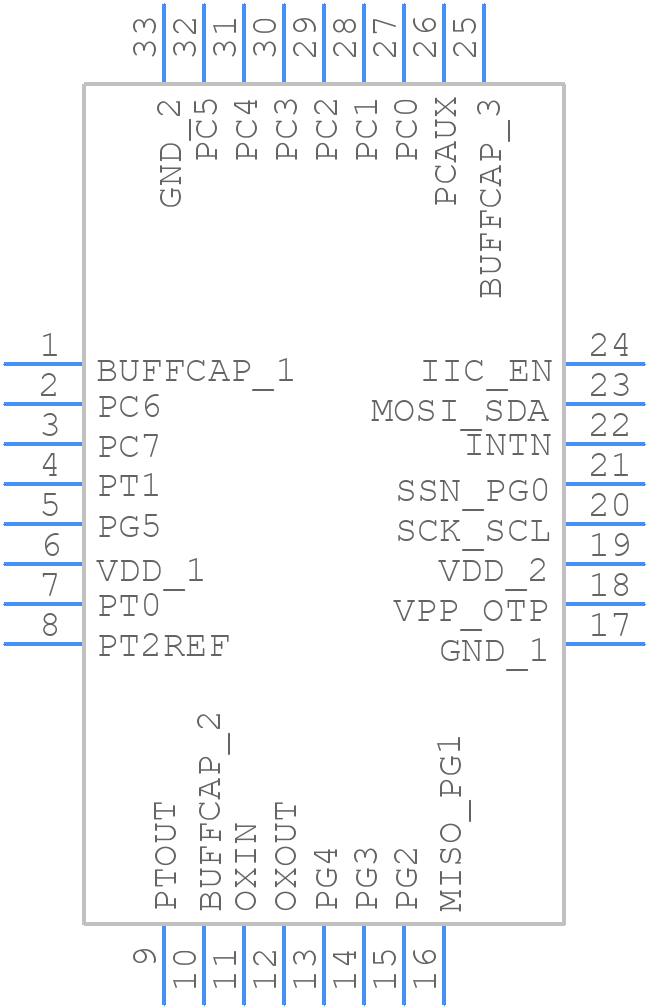

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCAP01AD by ams OSRAM Group
Results Overview of PCAP01AD by ams OSRAM Group
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Audio and Video Systems
Financial Technology (Fintech)
Healthcare
Medical Imaging
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Renewable Energy
Telecommunications
Entertainment and Gaming
Automotive
Robotics and Drones
PCAP01AD Information
PCAP01AD by ams OSRAM Group is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Part Details for PCAP01AD
PCAP01AD CAD Models
PCAP01AD Part Data Attributes
|
|
PCAP01AD
ams OSRAM Group
Buy Now
Datasheet
|
Compare Parts:
PCAP01AD
ams OSRAM Group
Digital Signal Processor, 0-Ext Bit, 20MHz, CMOS, QFN-32
|
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | AMS-OSRAM AG | |
| Package Description | QFN-32 | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | ams OSRAM | |
| Address Bus Width | ||
| Boundary Scan | NO | |
| Clock Frequency-Max | 20 MHz | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-XQCC-N32 | |
| Length | 5 mm | |
| Low Power Mode | YES | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Seated Height-Max | 0.9 mm | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.1 V | |
| Supply Voltage-Nom | 2.4 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 5 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
