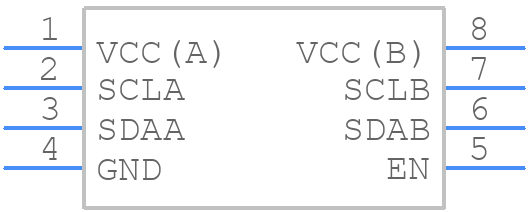

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCA9517ADP by NXP Semiconductors
Results Overview of PCA9517ADP by NXP Semiconductors
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Aerospace and Defense
Healthcare
Telecommunications
Automotive
PCA9517ADP Information
PCA9517ADP by NXP Semiconductors is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for PCA9517ADP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 344 |
|
RFQ | ||
|
|
Bristol Electronics | 11 |
|
RFQ | ||
|
|
Quest Components | SPECIALTY INTERFACE CIRCUIT, PDSO8 | 1612 |
|
$2.6250 / $7.5000 | Buy Now |
|
|
Quest Components | SPECIALTY INTERFACE CIRCUIT, PDSO8 | 1236 |
|
$4.2702 / $8.5404 | Buy Now |
|
|
Quest Components | SPECIALTY INTERFACE CIRCUIT, PDSO8 | 275 |
|
$4.1250 / $7.5000 | Buy Now |
|
|
Quest Components | SPECIALTY INTERFACE CIRCUIT, PDSO8 | 8 |
|
$1.6000 / $2.0000 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Cytech Systems Limited | 25000 |
|
RFQ | ||
|
|
Vyrian | Interface ICs | 1182 |
|
RFQ | |
|
|
Win Source Electronics | I2C Repeater 3.3V/5V 8-Pin TSSOP / Level translating I2C-bus repeater | 52500 |
|
$0.2118 / $0.2735 | Buy Now |
Part Details for PCA9517ADP
PCA9517ADP CAD Models
PCA9517ADP Part Data Attributes
|
|
PCA9517ADP
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
PCA9517ADP
NXP Semiconductors
IC SPECIALTY INTERFACE CIRCUIT, PDSO8, 3 MM, PLASTIC, SOT505-1, TSSOP-8, Interface IC:Other
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOIC | |
| Package Description | 3 MM, PLASTIC, SOT505-1, TSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 11 Weeks, 1 Day | |
| Samacsys Manufacturer | NXP | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 0.9 V | |
| Supply Voltage-Nom | 1.2 V | |
| Supply Voltage1-Max | 5.5 V | |
| Supply Voltage1-Min | 2.7 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for PCA9517ADP
This table gives cross-reference parts and alternative options found for PCA9517ADP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCA9517ADP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PCA9517ADP-T | NXP Semiconductors | Check for Price | IC,REPEATER INTERFACE,CMOS,TSSOP,8PIN,PLASTIC | PCA9517ADP vs PCA9517ADP-T |
PCA9517ADP Frequently Asked Questions (FAQ)
-
The PCA9517ADP can operate up to 400 kHz, but the maximum frequency of operation depends on the specific application and the capacitive load of the bus.
-
The PCA9517ADP can be configured for I2C or SMBus operation by setting the SEL pin high or low, respectively. Additionally, the device can be configured for fast or standard mode operation by setting the F/S pin high or low, respectively.
-
The PCA9517ADP can drive up to 400 pF of capacitive load, but the actual maximum load depends on the specific application and the frequency of operation.
-
The PCA9517ADP has built-in hot-swapping capability, which allows devices to be connected or disconnected from the bus without disrupting the operation of the bus. However, it is recommended to use external circuitry to ensure safe hot-swapping.
-
The power consumption of the PCA9517ADP depends on the specific application and the frequency of operation. However, the typical quiescent current is around 1.5 mA, and the typical dynamic current is around 10 mA.
