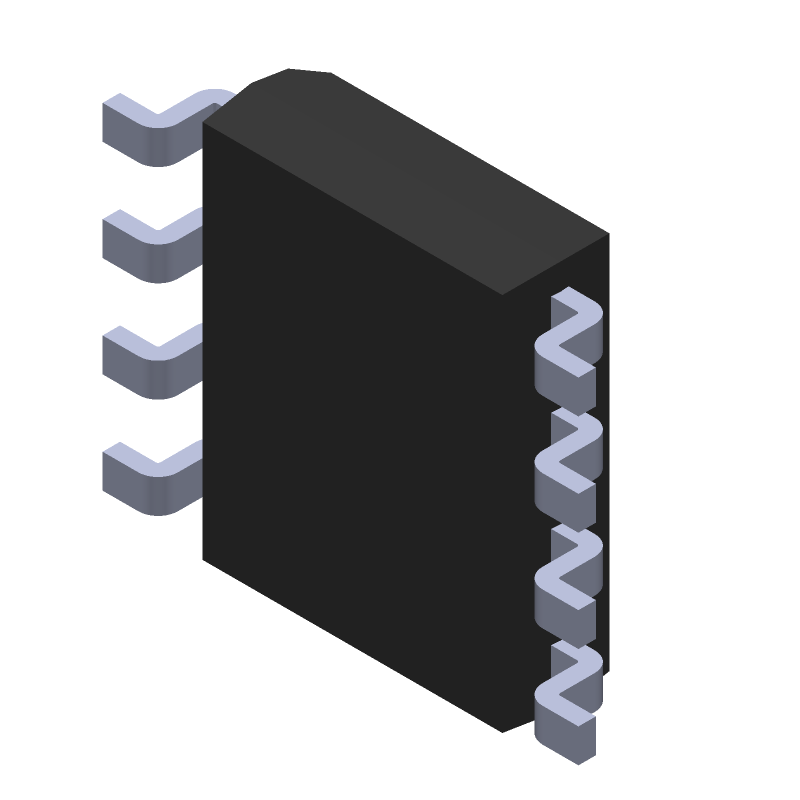

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PCA82C250T/N4 by NXP Semiconductors
Results Overview of PCA82C250T/N4 by NXP Semiconductors
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
PCA82C250T/N4 Information
PCA82C250T/N4 by NXP Semiconductors is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for PCA82C250T/N4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 12 |
|
RFQ | ||
|
|
Quest Components | DATACOM, INTERFACE CIRCUIT, PDSO8 | 9 |
|
$8.3400 / $12.5100 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 3287 |
|
RFQ | |
|
|
Vyrian | Telecommunications | 1235 |
|
RFQ | |
|
|
Win Source Electronics | 1766 |
|
$1.0430 / $1.5650 | Buy Now |
Part Details for PCA82C250T/N4
PCA82C250T/N4 CAD Models
PCA82C250T/N4 Part Data Attributes
|
|
PCA82C250T/N4
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
PCA82C250T/N4
NXP Semiconductors
IC DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, MS-012, SOT96-1, SOP-8, Network Interface
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOIC | |
| Package Description | 3.90 MM, ROHS COMPLIANT, PLASTIC, MS-012, SOT96-1, SOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | NXP | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Telecom IC Type | INTERFACE CIRCUIT | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 3.9 mm |
Alternate Parts for PCA82C250T/N4
This table gives cross-reference parts and alternative options found for PCA82C250T/N4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PCA82C250T/N4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PCA82C250T/YM,115 | NXP Semiconductors | $1.0238 | PCA82C250 - CAN controller interface SOIC 8-Pin | PCA82C250T/N4 vs PCA82C250T/YM,115 |
| PCA82C250TD | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO8, PLASTIC, SO-8, Network Interface | PCA82C250T/N4 vs PCA82C250TD |
| SN65HVD1050DRG4 | Texas Instruments | Check for Price | High-Speed CAN Transceiver with Silent Mode 8-SOIC -40 to 125 | PCA82C250T/N4 vs SN65HVD1050DRG4 |
| 935085330112 | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, PLASTIC, MS-012, SOT96-1, SOP-8, Network Interface | PCA82C250T/N4 vs 935085330112 |
| TJA1050TD-T | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO8, ROHS COMPLIANT, 3.90 MM, PLASTIC, MS-012, SOT-96-1, SOP-8, Network Interface | PCA82C250T/N4 vs TJA1050TD-T |
| 935085330118 | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, PLASTIC, MS-012, SOT96-1, SOP-8, Network Interface | PCA82C250T/N4 vs 935085330118 |
| V62/07608-01XE | Texas Instruments | Check for Price | Enhanced Product Emc Optimized Can Transceiver 8-SOIC -55 to 125 | PCA82C250T/N4 vs V62/07608-01XE |
| PCA82C250TN4S421/N | NXP Semiconductors | Check for Price | PCA82C250 - CAN controller interface SOIC 8-Pin | PCA82C250T/N4 vs PCA82C250TN4S421/N |
| PCA82C250T/N4/G | NXP Semiconductors | Check for Price | PCA82C250T/N4/G | PCA82C250T/N4 vs PCA82C250T/N4/G |
PCA82C250T/N4 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for PCA82C250T/N4 is 4.5V to 5.5V.
-
To ensure reliable communication, use twisted pair wiring, add common-mode chokes or ferrite beads to the transmission lines, and consider using differential signaling and/or shielding to reduce electromagnetic interference (EMI).
-
The PCA82C250T/N4 supports data transfer rates up to 1 Mbps.
-
The PCA82C250T/N4 is rated for operation up to 125°C, but it's recommended to derate the device's performance and consider thermal management strategies to ensure reliable operation in high-temperature environments.
-
Use a logic analyzer or oscilloscope to monitor the transmission lines, check the device's configuration and settings, and verify that the device is properly powered and connected.
