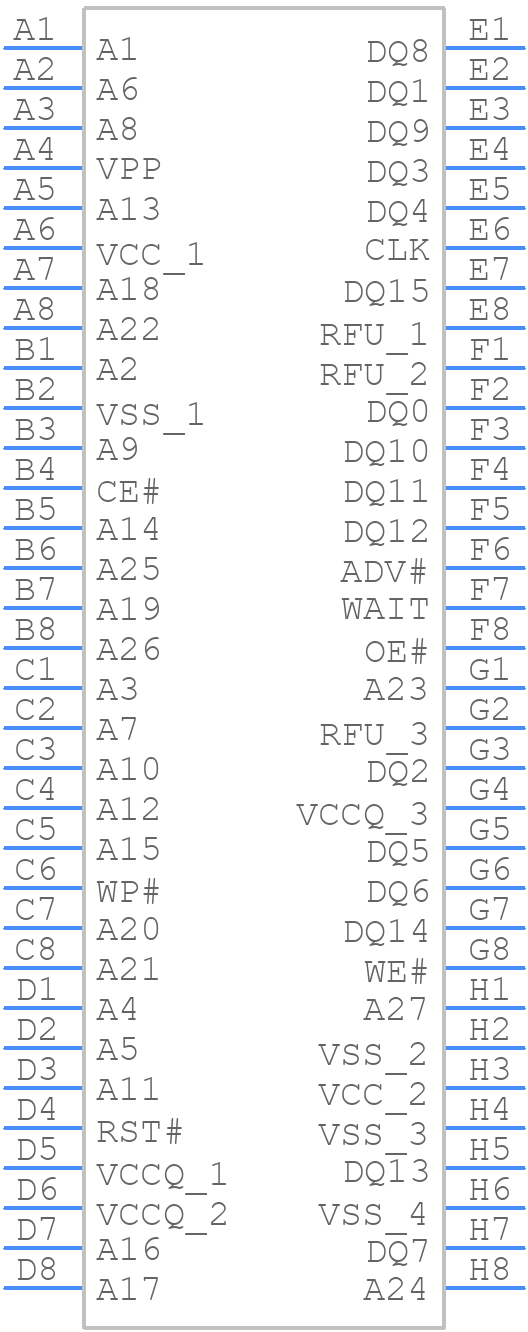

Part Symbol
-

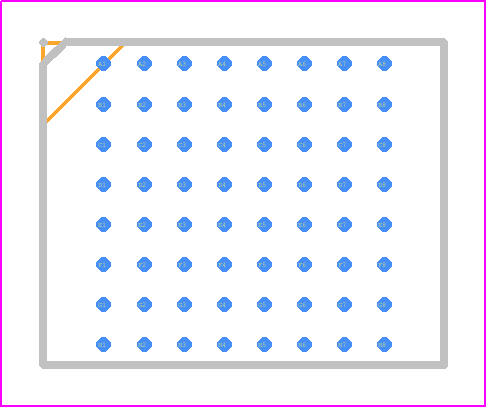

Footprint
-

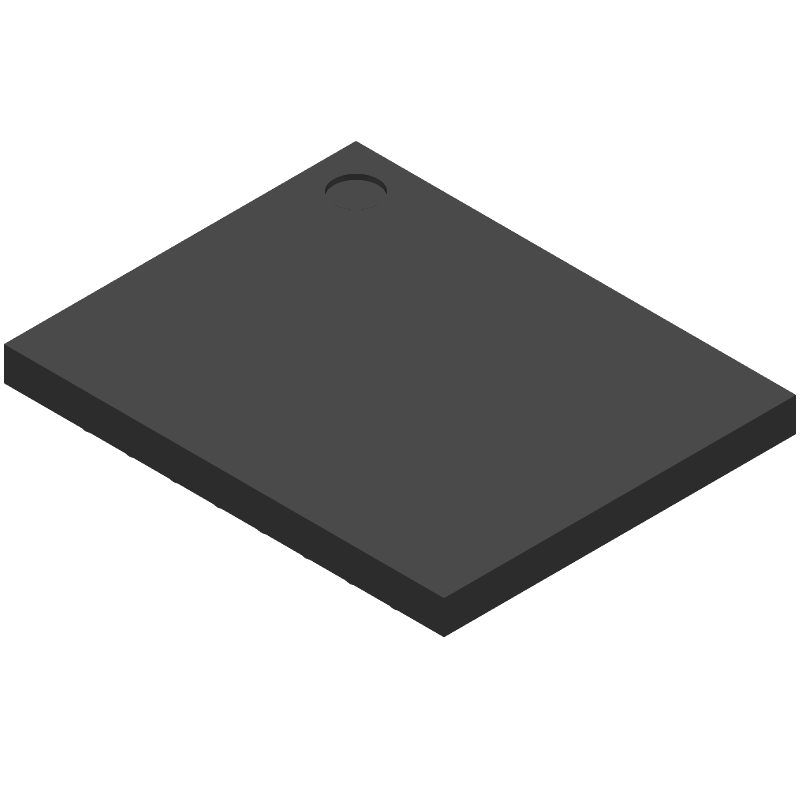

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PC28F512P30TFA by Micron Technology Inc
Results Overview of PC28F512P30TFA by Micron Technology Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
PC28F512P30TFA Information
PC28F512P30TFA by Micron Technology Inc is a Flash Memory.
Flash Memories are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for PC28F512P30TFA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Win Source Electronics | NOR Flash Parallel/Serial 1.8V 512M-bit 32M x 16 100ns 64-Pin BGA Tray / IC FLASH 512M PARALLEL 64EASYBGA | 50000 |
|
$7.7001 / $9.9459 | Buy Now |
Part Details for PC28F512P30TFA
PC28F512P30TFA CAD Models
PC28F512P30TFA Part Data Attributes
|
|
PC28F512P30TFA
Micron Technology Inc
Buy Now
Datasheet
|
Compare Parts:
PC28F512P30TFA
Micron Technology Inc
Flash, 32MX16, 100ns, PBGA64, BGA-64
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MICRON TECHNOLOGY INC | |
| Package Description | BGA-64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | Micron | |
| Access Time-Max | 100 ns | |
| Additional Feature | TOP BOOT | |
| Boot Block | TOP | |
| Command User Interface | YES | |
| Common Flash Interface | YES | |
| Data Polling | NO | |
| JESD-30 Code | R-PBGA-B64 | |
| JESD-609 Code | e1 | |
| Length | 10 mm | |
| Memory Density | 536870912 bit | |
| Memory IC Type | FLASH | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Sectors/Size | 4,511 | |
| Number of Terminals | 64 | |
| Number of Words | 33554432 words | |
| Number of Words Code | 32000000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 32MX16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TBGA | |
| Package Equivalence Code | BGA64,8X8,40 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, THIN PROFILE | |
| Page Size | 16 words | |
| Parallel/Serial | PARALLEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 1.8 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Sector Size | 16K,64K | |
| Standby Current-Max | 0.000225 A | |
| Supply Current-Max | 0.031 mA | |
| Supply Voltage-Max (Vsup) | 2 V | |
| Supply Voltage-Min (Vsup) | 1.7 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 1 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Toggle Bit | NO | |
| Type | NOR TYPE | |
| Width | 8 mm |
Alternate Parts for PC28F512P30TFA
This table gives cross-reference parts and alternative options found for PC28F512P30TFA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of PC28F512P30TFA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| PC28F512P30TFB | Micron Technology Inc | Check for Price | Flash, 32MX16, 100ns, PBGA64, BGA-64 | PC28F512P30TFA vs PC28F512P30TFB |
PC28F512P30TFA Frequently Asked Questions (FAQ)
-
The PC28F512P30TFA has an operating temperature range of -40°C to 85°C.
-
The HOLD# signal should be asserted low to pause the current operation and de-asserted high to resume the operation.
-
The WP# signal is used to prevent accidental writes to the device. When WP# is low, the device is in write-protect mode, and when WP# is high, the device is in read/write mode.
-
The PC28F512P30TFA has a density of 512 Mbits and is organized as 64M x 8 bits or 32M x 16 bits.
-
The typical programming time for the PC28F512P30TFA is 10-15 seconds for a full chip erase and 10-20 microseconds for a byte program operation.
