PBSS9110X,135 Information
PBSS9110X,135 by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PBSS9110X,135
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1757971RL
|
Farnell | TRANS PNP 100V 1A LOW SAT SOT89 RoHS: Compliant Min Qty: 50 Lead time: 9 Weeks, 1 Days Container: Reel | 3834 |
|
$0.1349 / $0.3912 | Buy Now |
|
DISTI #
1757971
|
Farnell | TRANS PNP 100V 1A LOW SAT SOT89 RoHS: Compliant Min Qty: 5 Lead time: 9 Weeks, 1 Days Container: Cut Tape | 3834 |
|
$0.1349 / $0.6326 | Buy Now |
|
DISTI #
2439556
|
Farnell | TRANS PNP 100V 1A LOW SAT SOT89, REEL RoHS: Compliant Min Qty: 4000 Lead time: 9 Weeks, 1 Days Container: Reel | 0 |
|
$0.1047 / $0.1325 | Buy Now |
|
DISTI #
1727-5781-1-ND
|
DigiKey | TRANS PNP 100V 1A SOT-89 Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
15230 In Stock |
|
$0.0938 / $0.5800 | Buy Now |
|
DISTI #
PBSS9110X,135
|
Avnet Americas | Trans GP BJT PNP 100V 1A 4-Pin(3+Tab) SOT-89 T/R - Tape and Reel (Alt: PBSS9110X,135) RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0824 / $0.0841 | Buy Now |
|
DISTI #
771-PBSS9110X135
|
Mouser Electronics | Bipolar Transistors - BJT 100 V, 1 A PNP low VCEsat (BISS) transistor RoHS: Compliant | 65582 |
|
$0.0970 / $0.5200 | Buy Now |
|
DISTI #
E02:0323_00017277
|
Arrow Electronics | Trans GP BJT PNP 100V 1A 2000mW Automotive AEC-Q101 4-Pin(3+Tab) SOT-89 T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 8 Weeks Date Code: 2444 | Europe - 4000 |
|
$0.0865 / $0.0959 | Buy Now |
|
DISTI #
V72:2272_06535338
|
Arrow Electronics | Trans GP BJT PNP 100V 1A 2000mW Automotive AEC-Q101 4-Pin(3+Tab) SOT-89 T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2249 Container: Cut Strips | Americas - 25 |
|
$0.1643 | Buy Now |
|
DISTI #
87864600
|
Verical | Trans GP BJT PNP 100V 1A 2000mW Automotive AEC-Q101 4-Pin(3+Tab) SOT-89 T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2444 | Americas - 4000 |
|
$0.0864 / $0.0959 | Buy Now |
|
DISTI #
PBSS9110X,135
|
Avnet Asia | Trans GP BJT PNP 100V 1A 4-Pin(3+Tab) SOT-89 T/R (Alt: PBSS9110X,135) RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days | 0 |
|
$0.0800 / $0.0936 | Buy Now |
Part Details for PBSS9110X,135

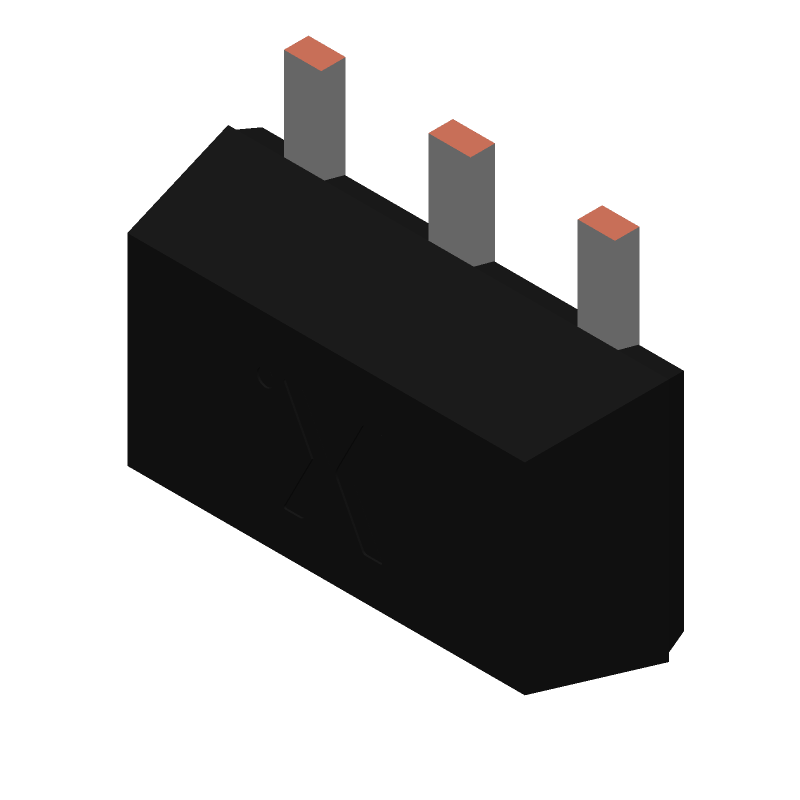

PBSS9110X,135 CAD Models
PBSS9110X,135 Part Data Attributes
|
|
PBSS9110X,135
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PBSS9110X,135
Nexperia
PBSS9110X - 100 V, 1 A PNP low VCEsat (BISS) transistor@en-us SOT-89 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOT-89 | |
| Package Description | SC-62, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT89 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 1 A | |
| Collector-Emitter Voltage-Max | 100 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 150 | |
| JEDEC-95 Code | TO-243AA | |
| JESD-30 Code | R-PSSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | FLAT | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz |
