PBSS5440D,115 Information
PBSS5440D,115 by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for PBSS5440D,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34R4430
|
Newark | Bipolar (Bjt) Single Transistor, Pnp, -40 V, 110 Mhz, 1.1 W, -4 A, 200 Rohs Compliant: Yes |Nexperia PBSS5440D,115 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 554 |
|
$0.2160 / $0.7500 | Buy Now |
|
DISTI #
1727-5775-1-ND
|
DigiKey | TRANS PNP 40V 4A 6-TSOP Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4913 In Stock |
|
$0.1482 / $0.8100 | Buy Now |
|
DISTI #
PBSS5440D,115
|
Avnet Americas | Trans GP BJT PNP 40V 4A 6-Pin TSOP T/R - Tape and Reel (Alt: PBSS5440D,115) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.1352 / $0.1589 | Buy Now |
|
DISTI #
771-PBSS5440D115
|
Mouser Electronics | Bipolar Transistors - BJT 40 V, 4 A PNP low VCEsat transistor RoHS: Compliant | 17808 |
|
$0.1560 / $0.6100 | Buy Now |
|
DISTI #
PBSS5440D,115
|
Avnet Silica | Trans GP BJT PNP 40V 4A 6Pin TSOP TR (Alt: PBSS5440D,115) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
PBSS5440D,115
|
EBV Elektronik | Trans GP BJT PNP 40V 4A 6Pin TSOP TR (Alt: PBSS5440D,115) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | EBV - 3000 |
|
Buy Now |
Part Details for PBSS5440D,115

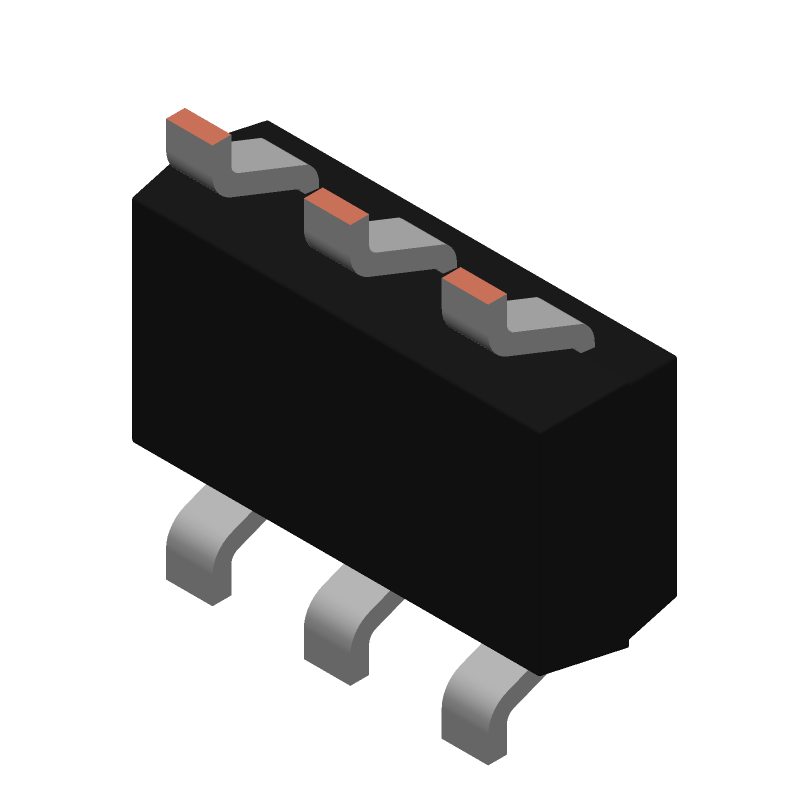

PBSS5440D,115 CAD Models
PBSS5440D,115 Part Data Attributes
|
|
PBSS5440D,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
PBSS5440D,115
Nexperia
PBSS5440D - 40 V PNP low V_CEsat (BISS) transistor@en-us TSOP 6-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TSOP | |
| Package Description | PLASTIC, SMD, SC-74, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | SOT457 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Collector Current-Max (IC) | 4 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 30 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 110 MHz |
