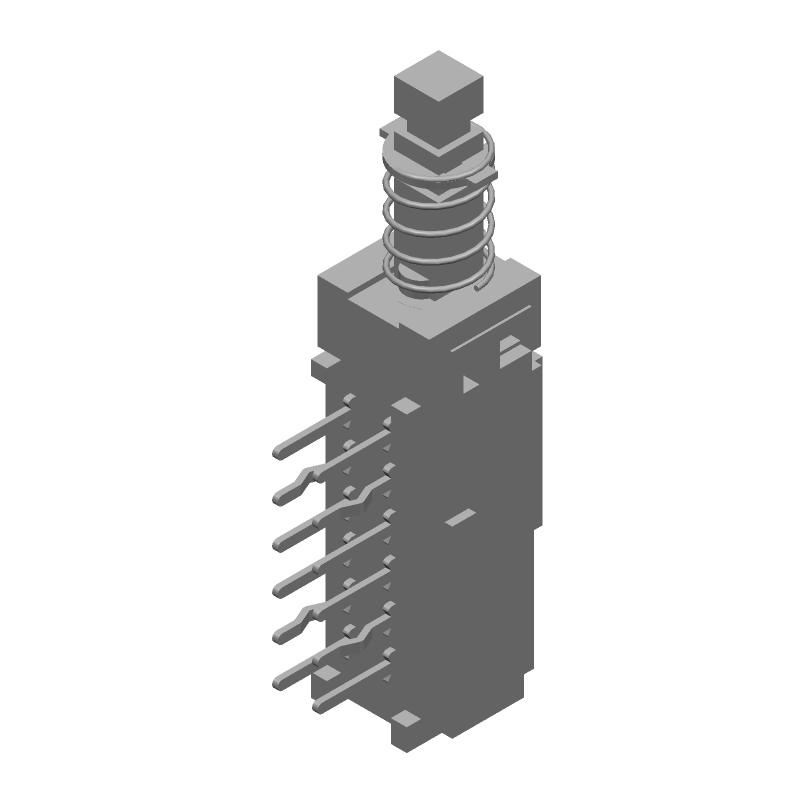

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for PBH4UEESNPNAGX by E-Switch Inc
Results Overview of PBH4UEESNPNAGX by E-Switch Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
PBH4UEESNPNAGX Information
PBH4UEESNPNAGX by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for PBH4UEESNPNAGX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
PBH4UEESNPNAGX-ND
|
DigiKey | SWITCH PUSH 4PDT 0.1A 30V Min Qty: 624 Lead time: 14 Weeks Container: Bulk | Temporarily Out of Stock |
|
$1.4752 | Buy Now |
|
DISTI #
612-PBH4UEESNPNAGX
|
Mouser Electronics | Pushbutton Switches 100mA 30VDC Latching Snap in PC Pin RoHS: Compliant | 310 |
|
$1.4700 / $2.1200 | Buy Now |
Part Details for PBH4UEESNPNAGX
PBH4UEESNPNAGX CAD Models
PBH4UEESNPNAGX Part Data Attributes
|
|
PBH4UEESNPNAGX
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
PBH4UEESNPNAGX
E-Switch Inc
Pushbutton Switch, 4PDT, Latched, 0.1A, 30VDC, 12 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.33 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.413 inch | |
| Actuator Material | POLYOXYMETHYLENE | |
| Actuator Travel | 2.9972 mm | |
| Actuator Type | PUSHBUTTON | |
| Body Breadth | 9.0932 mm | |
| Body Height | 22.1996 mm | |
| Body Length or Diameter | 7.2898 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | 0.1A@30VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Timing | BREAK-BEFORE-MAKE | |
| Contact Voltage(DC)-Max | 30 V | |
| Dielectric Withstand Volts | 250VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | SILVER | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | POLYAMIDE | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| PCB Hole Count | 12 | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | 4PDT | |
| Switch Type | PUSHBUTTON SWITCH | |
| Terminal Length | 0.157 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
