P9-221121 Information
P9-221121 by OTTO Engineering Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 54122-112102400LF | Amphenol Communications Solutions | BergStik®, Board to Board connector, Unshrouded stacking vertical header, through hole, double Row, 10 position, 2.54mm (0.100in) pitch | |
| 54122-112182300LF | Amphenol Communications Solutions | BergStik®, Board to Board connector, Unshrouded stacking vertical header, through hole, double Row, 18 position, 2.54mm (0.100in) pitch | |
| 54122-112101850RLF | Amphenol Communications Solutions | BergStik®, Board to Board connector, Unshrouded stacking vertical header, through hole, double Row, 10 position, 2.54mm (0.100in) pitch |
Price & Stock for P9-221121
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
999-P9-221121
|
Mouser Electronics | Pushbutton Switches 5A Red Raised Dome N.O. PCB RoHS: Compliant | 14 |
|
$7.5500 / $12.6200 | Buy Now |
|
|
Onlinecomponents.com | Momentary Action, Sealed, Dome Style, Pushbutton Switch RoHS: Compliant | 0 |
|
$6.2400 / $10.4100 | Buy Now |
|
DISTI #
000000000001096778
|
Sager | SEALED DOME PUSHBUTTON SWITCH Min Qty: 18 | 0 |
|
$6.0800 / $10.4100 | Buy Now |
Part Details for P9-221121
P9-221121 CAD Models
P9-221121 Part Data Attributes
|
|
P9-221121
OTTO Engineering Inc
Buy Now
Datasheet
|
Compare Parts:
P9-221121
OTTO Engineering Inc

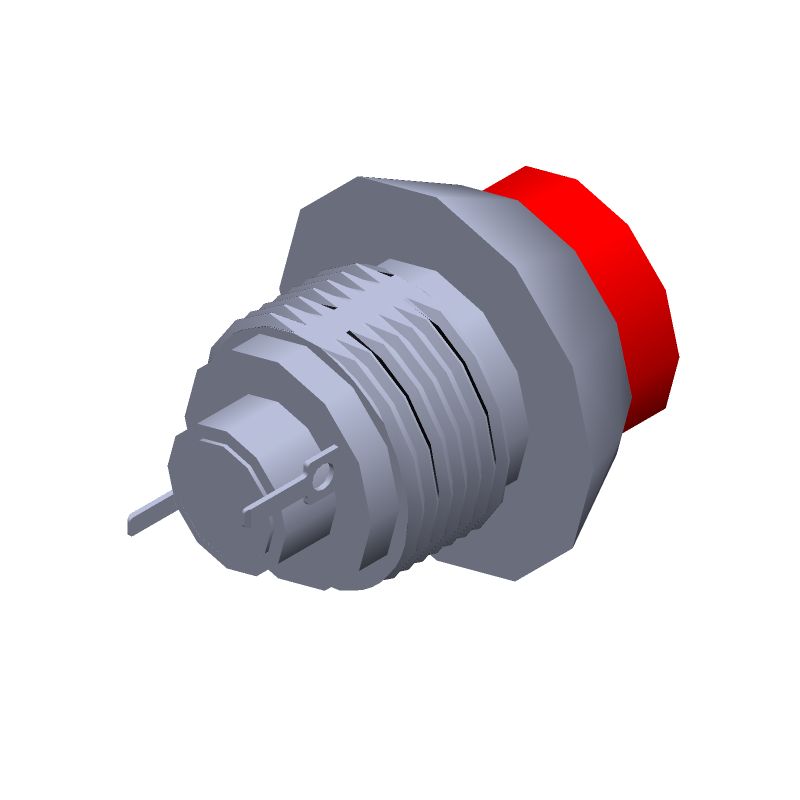

Pushbutton Switch, SPST, Momentary-tactile, 5A, 28VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | OTTO ENGINEERING INC | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.31 | |
| Samacsys Manufacturer | OTTO | |
| Actuator Color | RED | |
| Actuator Length | 0.39 inch | |
| Actuator Material | THERMOPLASTIC | |
| Actuator Travel | 2.032 mm | |
| Actuator Type | RAISED DOME | |
| Body Color | BLACK | |
| Body Height | 11.43 mm | |
| Body Length or Diameter | 11.38 mm | |
| Bushing Type | 15/32-32 | |
| Contact (AC) Max Rating R Load | 5A@115VAC | |
| Contact Current(AC)-Max | 5 A | |
| Contact Current(DC)-Max | 5 A | |
| Contact (DC) Max Rating R Load | 5A@28VDC | |
| Contact Voltage(AC)-Max | 115 V | |
| Contact Voltage(DC)-Max | 28 V | |
| Dielectric Withstand Volts | 1050VAC V | |
| Electrical Life | 25000 Cycle(s) | |
| Illumination | NON-ILLUMINATED | |
| Insulator Material | THERMOPLASTIC | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Force-Max | 9.79 N | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| PCB Hole Count | 4 | |
| Sealing | IP64 | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | PUSHBUTTON SWITCH | |
| Terminal Finish | Gold (Au) | |
| Terminal Length | 0.093 inch | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
