P87LPC764BN,112 Information
P87LPC764BN,112 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| P87LPC764BN | Rochester Electronics LLC | P87LPC764 - 80C51, 8-Bit Microcontroller |
Price & Stock for P87LPC764BN,112
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
P87LPC764BN,112
|
Avnet Silica | (Alt: P87LPC764BN,112) RoHS: Compliant Min Qty: 18 Package Multiple: 18 | Silica - 0 |
|
Buy Now | |
|
DISTI #
P87LPC764BN,112
|
EBV Elektronik | (Alt: P87LPC764BN,112) RoHS: Compliant Min Qty: 18 Package Multiple: 18 | EBV - 0 |
|
Buy Now |
Part Details for P87LPC764BN,112

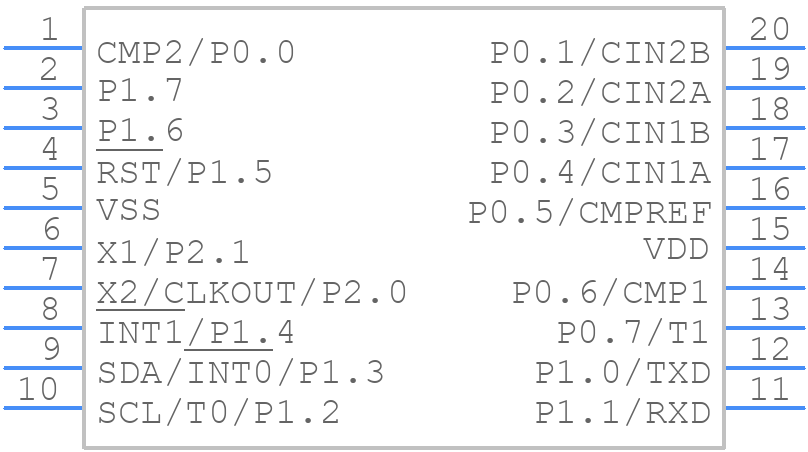

P87LPC764BN,112 CAD Models
P87LPC764BN,112 Part Data Attributes
|
|
P87LPC764BN,112
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
P87LPC764BN,112
NXP Semiconductors

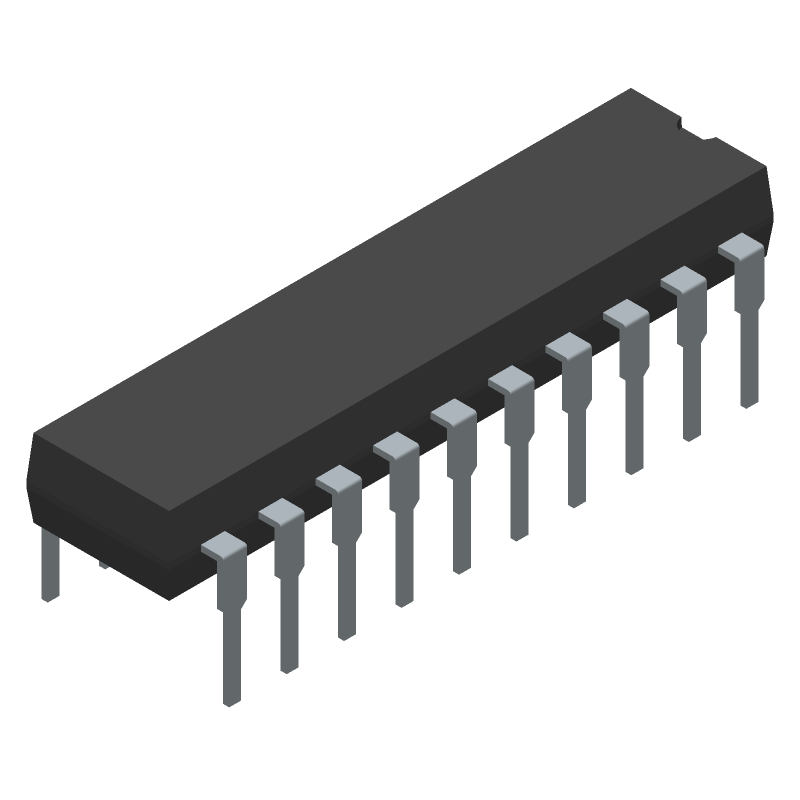

IC 8-BIT, OTPROM, 20 MHz, MICROCONTROLLER, PDIP20, 0.300 INCH, PLASTIC, MS-001, SOT-146-1, DIP-20, Microcontroller
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | DIP | |
| Package Description | 0.300 INCH, PLASTIC, MS-001, SOT-146-1, DIP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | NXP | |
| Has ADC | NO | |
| Additional Feature | OPERATES AT 2.7 V MINIMUM SUPPLY @ 10 MHZ | |
| Address Bus Width | ||
| Bit Size | 8 | |
| CPU Family | 8051 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | R-PDIP-T20 | |
| JESD-609 Code | e4 | |
| Length | 26.73 mm | |
| Number of I/O Lines | 18 | |
| Number of Terminals | 20 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| PWM Channels | NO | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 128 | |
| ROM (words) | 4096 | |
| ROM Programmability | OTPROM | |
| Seated Height-Max | 4.2 mm | |
| Speed | 20 MHz | |
| Supply Current-Max | 25 mA | |
| Supply Voltage-Max | 6 V | |
| Supply Voltage-Min | 5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
