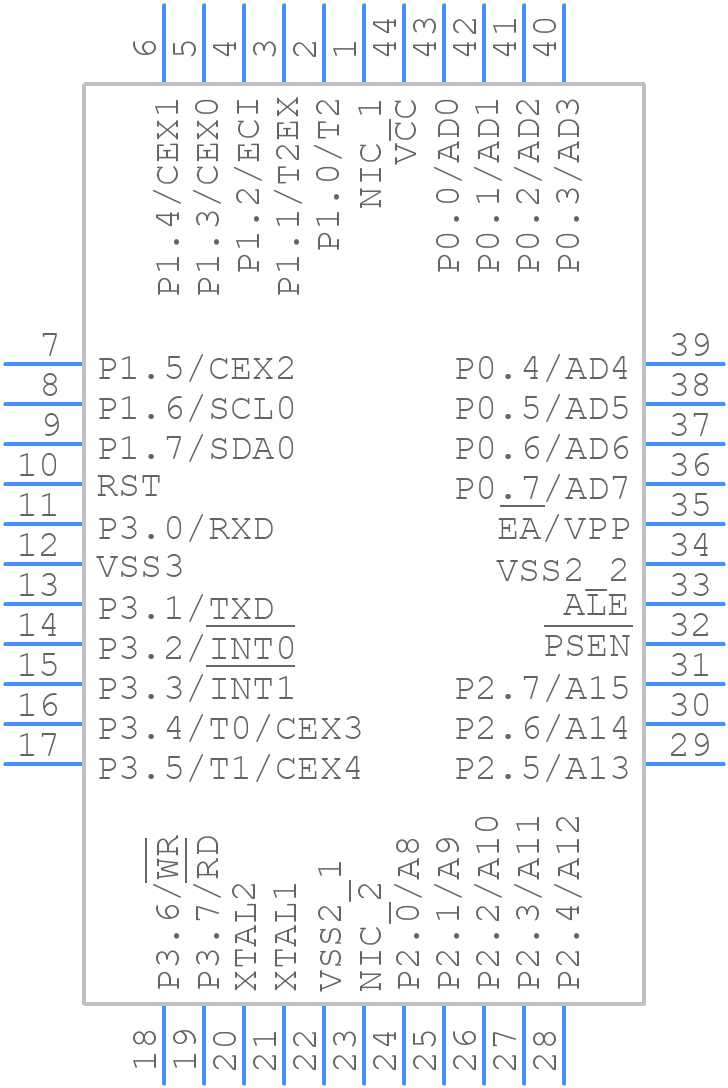

Part Symbol
-

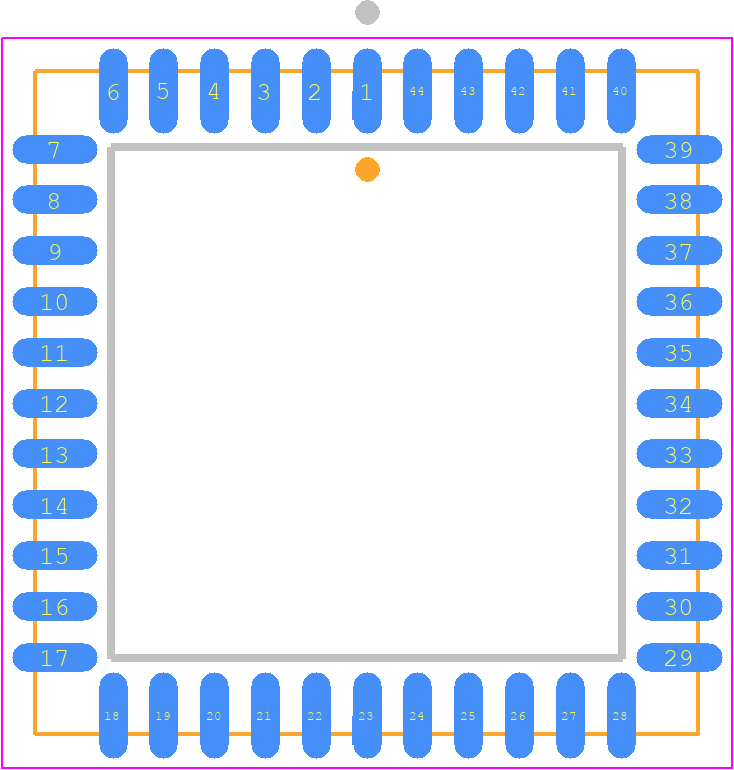

Footprint
-

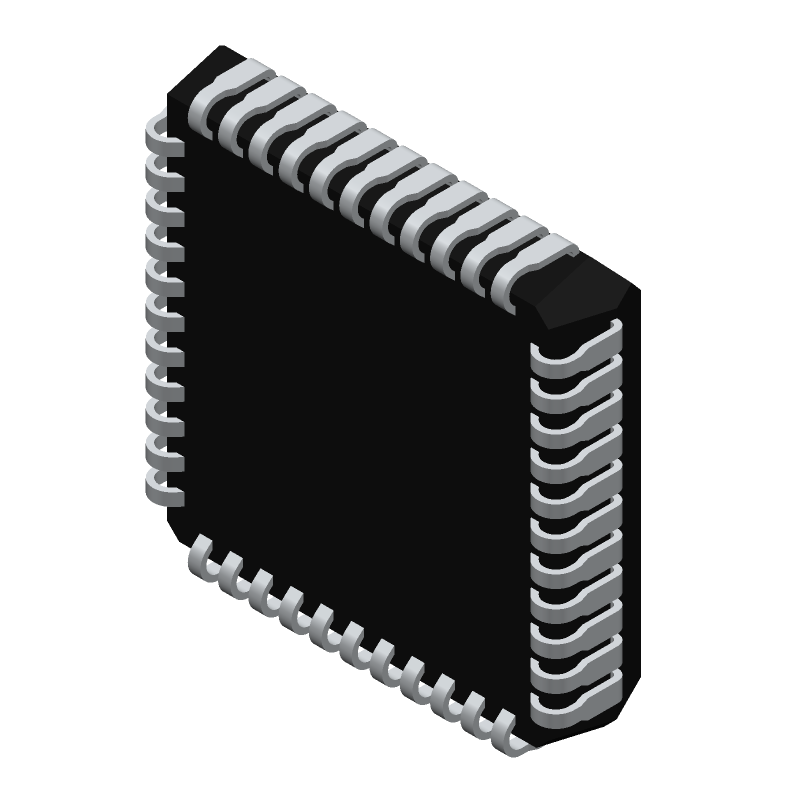

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P87C660X2FA,529 by NXP Semiconductors
Results Overview of P87C660X2FA,529 by NXP Semiconductors
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
P87C660X2FA,529 Information
P87C660X2FA,529 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for P87C660X2FA,529
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | P87C660 - Microcontroller, 8-Bit, 80C51 CPU, 16KB OTP 44PLCC RoHS: Compliant Status: Obsolete Min Qty: 1 | 5 |
|
$8.2300 / $10.2900 | Buy Now |
Part Details for P87C660X2FA,529
P87C660X2FA,529 CAD Models
P87C660X2FA,529 Part Data Attributes
|
|
P87C660X2FA,529
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
P87C660X2FA,529
NXP Semiconductors
P83C660X2, P87C660X2, P83C661X2, P87C661X2 - 80C51 8-bit microcontroller family LCC 44-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | LCC | |
| Package Description | PLASTIC, MS-018, SOT-187-2, LCC-44 | |
| Pin Count | 44 | |
| Manufacturer Package Code | SOT187-2 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | NXP | |
| Has ADC | NO | |
| Additional Feature | OPERATES AT 2.7 V MINIMUM SUPPLY @ 16 MHZ | |
| Address Bus Width | 16 | |
| Bit Size | 8 | |
| Clock Frequency-Max | 33 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | 8 | |
| JESD-30 Code | S-PQCC-J44 | |
| JESD-609 Code | e3 | |
| Length | 16.5862 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 32 | |
| Number of Terminals | 44 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QCCJ | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| ROM Programmability | OTPROM | |
| Seated Height-Max | 4.57 mm | |
| Speed | 33 MHz | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | J BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 16.5862 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
