Part Details for P87C51FB-4A by NXP Semiconductors
Results Overview of P87C51FB-4A by NXP Semiconductors
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
P87C51FB-4A Information
P87C51FB-4A by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for P87C51FB-4A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 155 |
|
RFQ | ||
|
|
Quest Components | IC,MICROCONTROLLER,8-BIT,8051 CPU,CMOS,LDCC,44PIN,PLASTIC | 124 |
|
$6.4750 / $10.5000 | Buy Now |
Part Details for P87C51FB-4A

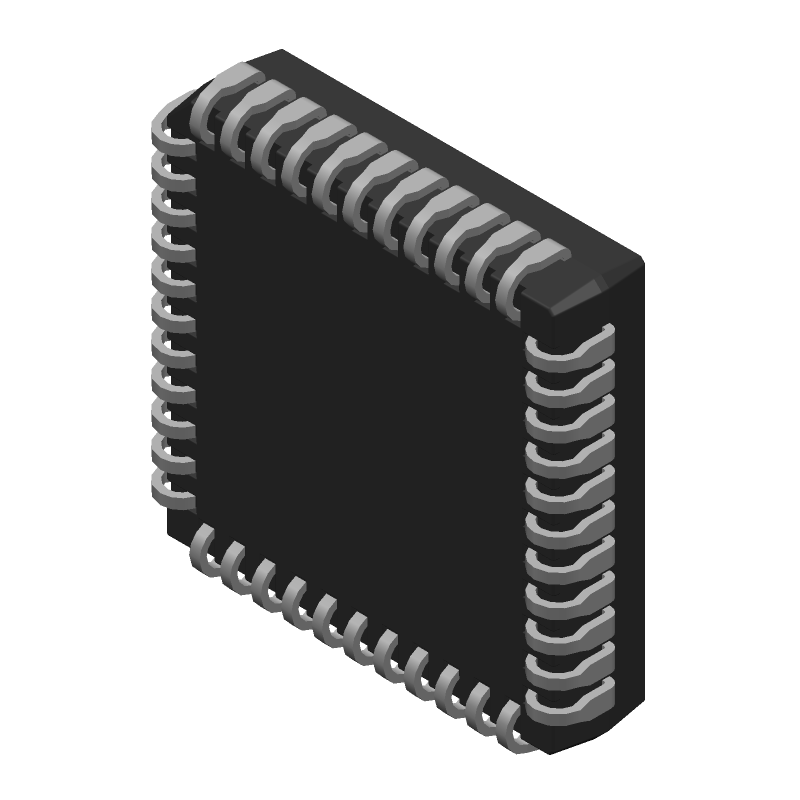

P87C51FB-4A CAD Models
P87C51FB-4A Part Data Attributes
|
|
P87C51FB-4A
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
P87C51FB-4A
NXP Semiconductors
8-BIT, OTPROM, 16MHz, MICROCONTROLLER, PQCC44, PLASTIC, MO-047, SOT187-2, LCC-44
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | LPCC | |
| Package Description | PLASTIC, MO-047, SOT187-2, LCC-44 | |
| Pin Count | 44 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | NXP | |
| Has ADC | NO | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | 8051 | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQCC-J44 | |
| JESD-609 Code | e3 | |
| Length | 16.585 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 32 | |
| Number of Terminals | 44 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QCCJ | |
| Package Equivalence Code | LDCC44,.7SQ | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 256 | |
| ROM (words) | 16384 | |
| ROM Programmability | OTPROM | |
| Seated Height-Max | 4.57 mm | |
| Speed | 16 MHz | |
| Supply Current-Max | 15 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | J BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 16.585 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for P87C51FB-4A
This table gives cross-reference parts and alternative options found for P87C51FB-4A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P87C51FB-4A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| P87C51FB-4A | Philips Semiconductors | Check for Price | Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, PQCC44, | P87C51FB-4A vs P87C51FB-4A |
P87C51FB-4A Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the P87C51FB-4A is 40 MHz, but it can be overclocked up to 44 MHz with careful consideration of power supply and temperature.
-
The P87C51FB-4A has a built-in watchdog timer that can be enabled by setting the WDTE bit in the WDTCON register. The watchdog timer can be configured to timeout after 16ms, 32ms, or 64ms.
-
Yes, the P87C51FB-4A can operate with a 3.3V power supply, but it is recommended to use a 5V power supply for optimal performance and to ensure compatibility with all features.
-
The UART on the P87C51FB-4A can be configured using the SCON and SBUF registers. The baud rate can be set using the Timer 1 overflow interrupt, and the UART mode can be set using the SM0 and SM1 bits in the SCON register.
-
The P87C51FB-4A has 16KB of flash memory, which can be programmed using a variety of programming tools and software.
