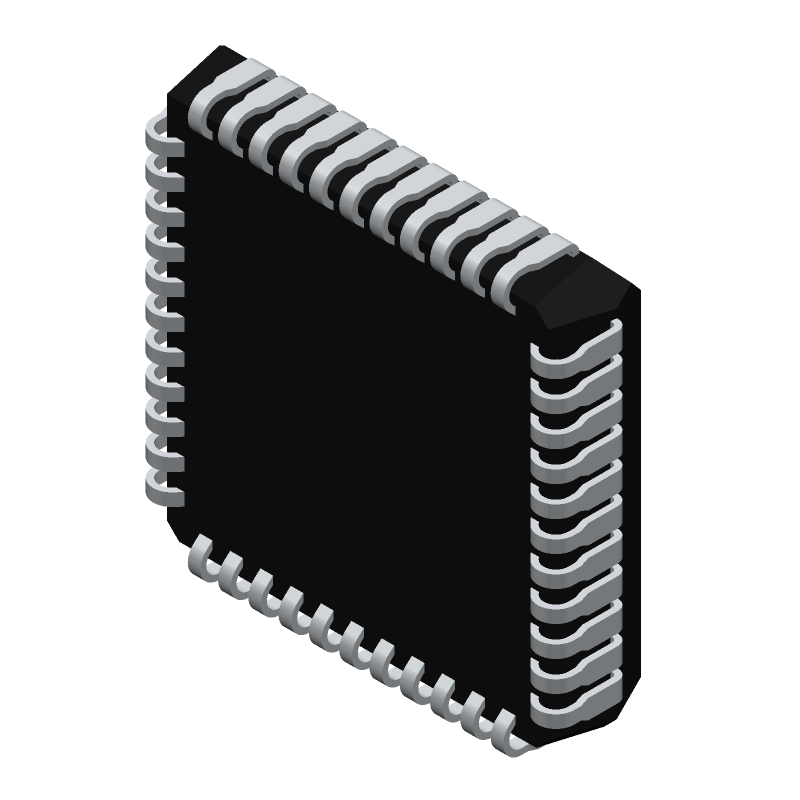

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P87C51FB-4A,512 by NXP Semiconductors
Results Overview of P87C51FB-4A,512 by NXP Semiconductors
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
P87C51FB-4A,512 Information
P87C51FB-4A,512 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for P87C51FB-4A,512
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
P87C51FB-4A,512
|
Avnet Silica | (Alt: P87C51FB-4A,512) RoHS: Compliant Min Qty: 26 Package Multiple: 26 | Silica - 0 |
|
Buy Now | |
|
DISTI #
P87C51FB-4A,512
|
EBV Elektronik | (Alt: P87C51FB-4A,512) RoHS: Compliant Min Qty: 26 Package Multiple: 26 | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Peripheral ICs | 8977 |
|
RFQ |
Part Details for P87C51FB-4A,512
P87C51FB-4A,512 CAD Models
P87C51FB-4A,512 Part Data Attributes
|
|
P87C51FB-4A,512
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
P87C51FB-4A,512
NXP Semiconductors
8XC54/58 - 80C51 8-bit microcontroller family LCC 44-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | LCC | |
| Package Description | PLASTIC, MO-047, SOT187-2, LCC-44 | |
| Pin Count | 44 | |
| Manufacturer Package Code | SOT187-2 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | NXP | |
| Has ADC | NO | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| CPU Family | 8051 | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQCC-J44 | |
| JESD-609 Code | e3 | |
| Length | 16.585 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 32 | |
| Number of Terminals | 44 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QCCJ | |
| Package Equivalence Code | LDCC44,.7SQ | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 256 | |
| ROM (words) | 16384 | |
| ROM Programmability | OTPROM | |
| Seated Height-Max | 4.57 mm | |
| Speed | 16 MHz | |
| Supply Current-Max | 15 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | J BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 16.585 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for P87C51FB-4A,512
This table gives cross-reference parts and alternative options found for P87C51FB-4A,512. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P87C51FB-4A,512, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| P87C51FB-4A | Philips Semiconductors | Check for Price | Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, PQCC44, | P87C51FB-4A,512 vs P87C51FB-4A |
P87C51FB-4A,512 Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the P87C51FB-4A,512 is 40 MHz.
-
The P87C51FB-4A,512 consumes approximately 10 mA of current in idle mode.
-
The maximum operating temperature range for the P87C51FB-4A,512 is -40°C to +85°C.
-
Yes, the P87C51FB-4A,512 has 512 bytes of built-in flash memory.
-
Yes, the P87C51FB-4A,512 is suitable for battery-powered devices due to its low power consumption.
