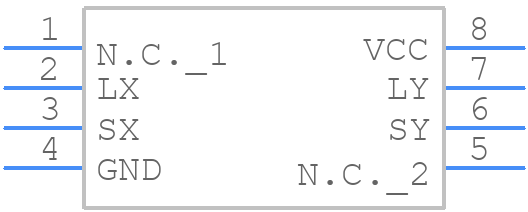

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P82B715TD,112 by NXP Semiconductors
Results Overview of P82B715TD,112 by NXP Semiconductors
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Industrial Automation
Renewable Energy
Robotics and Drones
P82B715TD,112 Information
P82B715TD,112 by NXP Semiconductors is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for P82B715TD,112
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80P7446
|
Newark | Ic, Bus Extender, I2C, 8Soic, Ic Interface Type:I2C, Smbus, Interface Applications:Advanced Tca Radial Ipmb Architecture, Drive I2C Bus Signals Over Long Cables, Supply Voltage Min:4.5V, Supply Voltage Max:12V, Interface Case Rohs Compliant: Yes |Nxp P82B715TD,112 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
70R8456
|
Newark | I2C Bus Extender, 12V, Soic-8, Ic Interface Type:I2C, Smbus, Interface Applications:Advanced Tca Radial Ipmb Architecture, Drive I2C Bus Signals Over Long Cables, Supply Voltage Min:4.5V, Supply Voltage Max:12V, No. Of Pins:8Pins Rohs Compliant: Yes |Nxp P82B715TD,112 RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$2.3900 | Buy Now |
|
DISTI #
P82B715TD,112
|
Avnet Americas | - Rail/Tube (Alt: P82B715TD,112) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days Container: Tube | 0 |
|
$2.2944 / $2.3422 | Buy Now |
|
DISTI #
70R8456
|
Avnet Americas | - Bulk (Alt: 70R8456) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Bulk | 0 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 2000 |
|
RFQ | |
|
DISTI #
P82B715TD,112
|
Avnet Silica | (Alt: P82B715TD,112) RoHS: Compliant Min Qty: 2000 Package Multiple: 100 | Silica - 0 |
|
Buy Now | |
|
DISTI #
P82B715TD,112
|
EBV Elektronik | (Alt: P82B715TD,112) RoHS: Compliant Min Qty: 100 Package Multiple: 100 | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Amplifiers | 1276 |
|
RFQ |
Part Details for P82B715TD,112
P82B715TD,112 CAD Models
P82B715TD,112 Part Data Attributes
|
|
P82B715TD,112
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
P82B715TD,112
NXP Semiconductors
P82B715 - I2C-bus extender SOIC 8-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOIC | |
| Package Description | SOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | SOT96-1 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | NXP | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max | 12 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
P82B715TD,112 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and EMI.
-
Use a thermal pad or a heat sink to dissipate heat, and ensure good airflow around the device. Also, follow the recommended operating conditions and derating guidelines in the datasheet.
-
Use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and follow good PCB layout practices. Also, ensure that the device is properly decoupled and filtered to minimize emissions.
-
Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage, input signal quality, and output load conditions. Consult the datasheet and application notes for troubleshooting guidelines.
-
Consult the datasheet for the recommended input voltage and frequency ranges. Using a different input voltage or frequency may affect the device's performance, efficiency, and reliability. Ensure that the device is operated within the recommended specifications.
