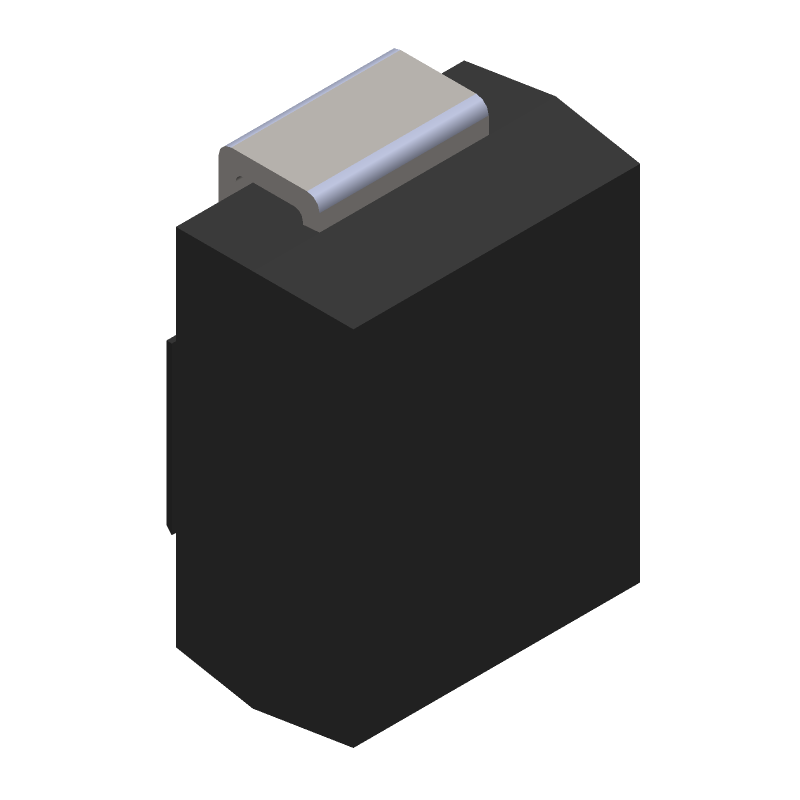

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P6SMBJ200A_R1_00001 by PanJit Semiconductor
Results Overview of P6SMBJ200A_R1_00001 by PanJit Semiconductor
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
P6SMBJ200A_R1_00001 Information
P6SMBJ200A_R1_00001 by PanJit Semiconductor is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for P6SMBJ200A_R1_00001
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
241-P6SMBJ200AR10000
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 600W,Transient Voltage Suppressors,SMB,200V,UNI RoHS: Compliant | 878 |
|
$0.0840 / $0.3700 | Buy Now |
|
DISTI #
87656870
|
Verical | P6SMBJ200A_R1_00001 Min Qty: 549 Package Multiple: 1 | Americas - 800 |
|
$0.0854 / $0.1040 | Buy Now |
|
|
NAC | 600W,Transient Voltage Suppressors,SMB,200V,UNI RoHS: Compliant Min Qty: 800 Package Multiple: 800 Container: Reel | 0 |
|
$0.0620 / $0.0720 | Buy Now |
Part Details for P6SMBJ200A_R1_00001
P6SMBJ200A_R1_00001 CAD Models
P6SMBJ200A_R1_00001 Part Data Attributes
|
|
P6SMBJ200A_R1_00001
PanJit Semiconductor
Buy Now
Datasheet
|
Compare Parts:
P6SMBJ200A_R1_00001
PanJit Semiconductor
Trans Voltage Suppressor Diode, 600W, 200V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANJIT INTERNATIONAL INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | PANJIT | |
| Breakdown Voltage-Max | 256 V | |
| Breakdown Voltage-Min | 220 V | |
| Breakdown Voltage-Nom | 238 V | |
| Clamping Voltage-Max | 324 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | UNIDIRECTIONAL | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
Alternate Parts for P6SMBJ200A_R1_00001
This table gives cross-reference parts and alternative options found for P6SMBJ200A_R1_00001. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P6SMBJ200A_R1_00001, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| P6SMBJ200A_R2_10001 | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode | P6SMBJ200A_R1_00001 vs P6SMBJ200A_R2_10001 |
| P6SMBJ200_R2_10001 | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode | P6SMBJ200A_R1_00001 vs P6SMBJ200_R2_10001 |
| P6SMBJ200_R1_10001 | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode | P6SMBJ200A_R1_00001 vs P6SMBJ200_R1_10001 |
P6SMBJ200A_R1_00001 Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for P6SMBJ200A_R1_00001 can be found in the PanJit Semiconductor's application note or packaging specification document, which provides detailed information on the recommended pad layout, solder mask, and stencil design.
-
To handle the ESD sensitivity of P6SMBJ200A_R1_00001, it is recommended to follow standard ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, ensure that the device is stored in its original packaging or in an ESD-safe container when not in use.
-
The maximum allowable voltage derating for P6SMBJ200A_R1_00001 is typically specified in the datasheet, but if not, it can be obtained from the manufacturer's application engineer or technical support team. As a general rule, it is recommended to derate the voltage by 10-20% to ensure reliable operation and to account for any voltage spikes or transients.
-
While the P6SMBJ200A_R1_00001 is rated for operation up to a certain temperature (typically 150°C), it is essential to consider the device's thermal characteristics, such as thermal resistance and power dissipation, when operating in high-temperature environments. Consult the datasheet and application notes for guidance on thermal management and derating.
-
To ensure the reliability and quality of P6SMBJ200A_R1_00001, follow proper design and manufacturing practices, such as using a robust PCB design, selecting suitable components, and implementing adequate testing and inspection procedures. Additionally, consider using devices from reputable manufacturers and suppliers, and ensure that the devices are stored and handled properly.
