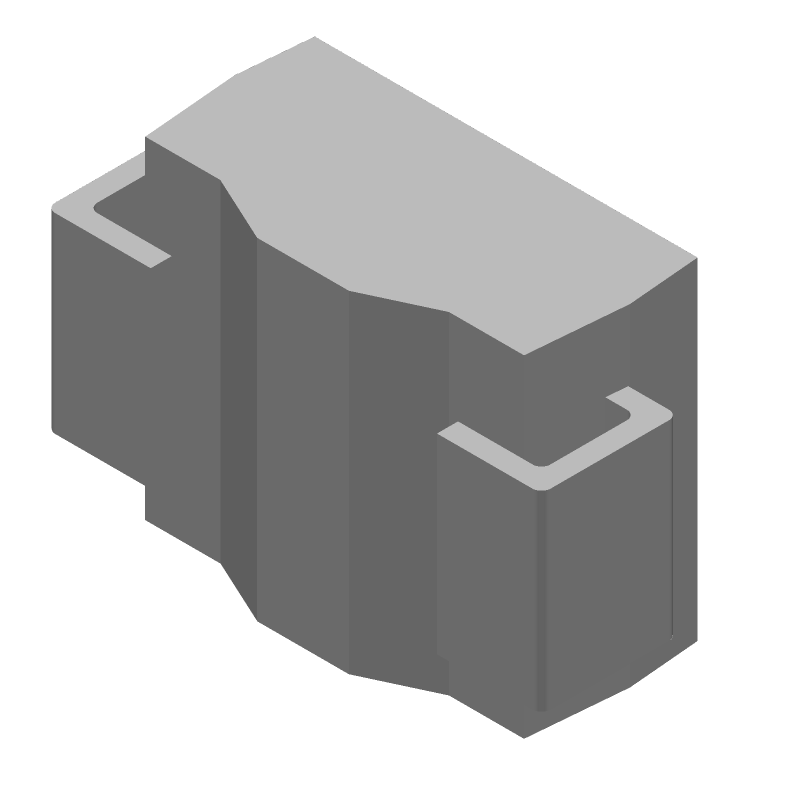

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P6SMB9.1CA-Q by Bourns Inc
Results Overview of P6SMB9.1CA-Q by Bourns Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
P6SMB9.1CA-Q Information
P6SMB9.1CA-Q by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for P6SMB9.1CA-Q
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AJ4140
|
Newark | Dio Tvs Vbr 9.1V 600W Bidir Smb Aec-Q/Tape & Reel - 13" Reel |Bourns P6SMB9.1CA-Q RoHS: Not Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1200 / $0.1610 | Buy Now |
|
DISTI #
118-P6SMB9.1CA-QTR-ND
|
DigiKey | TVS DIODE 7.78VWM 13.4V DO214AA Min Qty: 12000 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1163 / $0.1217 | Buy Now |
|
DISTI #
P6SMB9.1CA-Q
|
Avnet Americas | Diode TVS Single Bi-Directional 7.78V 600W 2-Pin DO-214AA T/R - Tape and Reel (Alt: P6SMB9.1CA-Q) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.1131 / $0.1245 | Buy Now |
|
DISTI #
652-P6SMB9.1CA-Q
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes P6SMB - CA 9.1V RoHS: Compliant | 11600 |
|
$0.1160 / $0.4100 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.1154 / $0.2418 | Buy Now |
|
DISTI #
P6SMB9.1CA-Q
|
TTI | ESD Protection Diodes / TVS Diodes P6SMB - CA 9.1V RoHS: Compliant pbFree: Pb-Free Min Qty: 12000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.1190 / $0.1290 | Buy Now |
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$0.1154 / $0.2418 | Buy Now |
Part Details for P6SMB9.1CA-Q
P6SMB9.1CA-Q CAD Models
P6SMB9.1CA-Q Part Data Attributes
|
|
P6SMB9.1CA-Q
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
P6SMB9.1CA-Q
Bourns Inc
Trans Voltage Suppressor Diode, 600W, 7.78V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | SMB, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Breakdown Voltage-Max | 9.55 V | |
| Breakdown Voltage-Min | 8.65 V | |
| Breakdown Voltage-Nom | 9.1 V | |
| Clamping Voltage-Max | 17.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 7.78 V | |
| Reverse Current-Max | 50 µA | |
| Reverse Test Voltage | 7.78 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
