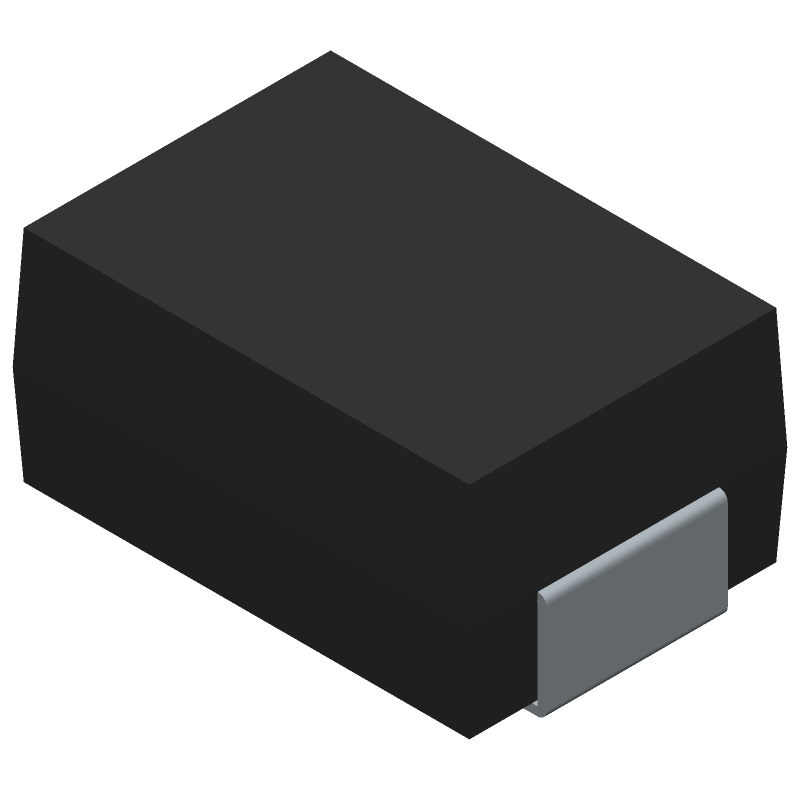

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P6SMB8.2CA by Littelfuse Inc
Results Overview of P6SMB8.2CA by Littelfuse Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
P6SMB8.2CA Information
P6SMB8.2CA by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for P6SMB8.2CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01P7473
|
Newark | Transient Suppressor Diode, single, bidirectional,7.02V V(Rwm),do-214Aa/Smb Rohs Compliant: Yes |Littelfuse P6SMB8.2CA RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1280 / $0.1710 | Buy Now |
|
DISTI #
P6SMB8.2CALFCT-ND
|
DigiKey | TVS DIODE 7.02VWM 12.1V DO214AA Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1281 In Stock |
|
$0.1210 / $0.3300 | Buy Now |
|
DISTI #
576-P6SMB8.2CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 600W 8.2V 5% Bi-Directional RoHS: Compliant | 1160 |
|
$0.0810 / $0.2900 | Buy Now |
|
DISTI #
V36:1790_06459567
|
Arrow Electronics | TVS Diode Single Bi-Dir 7.02V 600W 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2417 | Americas - 3000 |
|
$0.0718 | Buy Now |
|
DISTI #
V72:2272_06459567
|
Arrow Electronics | TVS Diode Single Bi-Dir 7.02V 600W 2-Pin SMB T/R Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 1846 Container: Cut Strips | Americas - 8 |
|
$0.1102 | Buy Now |
|
DISTI #
84743871
|
Verical | TVS Diode Single Bi-Dir 7.02V 600W 2-Pin SMB T/R Min Qty: 3000 Package Multiple: 3000 Date Code: 2417 | Americas - 3000 |
|
$0.0718 | Buy Now |
|
|
Quest Components | 600 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA | 295 |
|
$0.1680 / $0.3600 | Buy Now |
|
DISTI #
P6SMB8.2CA
|
TTI | ESD Protection Diodes / TVS Diodes 600W 8.2V 5% Bi-Directional RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel |
Americas - 15000 In Stock |
|
$0.0720 | Buy Now |
|
DISTI #
P6SMB8.2CA-LF
|
TME | Diode: TVS, 600W, 8.2V, 50.4A, bidirectional, ±5%, DO214AA, P6SMB Min Qty: 1 | 0 |
|
$0.1620 / $0.7880 | RFQ |
|
|
New Advantage Corporation | TVS SURF MT DO214AA T&R RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 27000 |
|
$0.0725 / $0.0785 | Buy Now |
Part Details for P6SMB8.2CA
P6SMB8.2CA CAD Models
P6SMB8.2CA Part Data Attributes
|
|
P6SMB8.2CA
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
P6SMB8.2CA
Littelfuse Inc
Trans Voltage Suppressor Diode, 600W, 7.02V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMB, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Part Package Code | DO-214AA | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 8.61 V | |
| Breakdown Voltage-Min | 7.79 V | |
| Breakdown Voltage-Nom | 8.2 V | |
| Clamping Voltage-Max | 12.1 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-J2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 7.02 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | J BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for P6SMB8.2CA
This table gives cross-reference parts and alternative options found for P6SMB8.2CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P6SMB8.2CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| P6SMB8.2CA | Vishay Semiconductors | Check for Price | Trans Voltage Suppressor Diode, 600W, 7.02V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | P6SMB8.2CA vs P6SMB8.2CA |
| P6SMB8.2CA-M3/5B | Vishay Semiconductors | Check for Price | 600W,8.2V 5%,BIDIR,SMB TVS | P6SMB8.2CA vs P6SMB8.2CA-M3/5B |
| SMBJP6KE8.2CAE3 | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 7.02V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMBJ, 2 PIN | P6SMB8.2CA vs SMBJP6KE8.2CAE3 |
| P6SMB8.2CA | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 7.02V V(RWM), Bidirectional, DO-214AA, SMB, 2 PIN | P6SMB8.2CA vs P6SMB8.2CA |
| P6SMB8.2CA-52 | Vishay Semiconductors | Check for Price | Trans Voltage Suppressor Diode, 600W, 7.02V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, PLASTIC, SMB, 2 PIN | P6SMB8.2CA vs P6SMB8.2CA-52 |
| P6SMB8.2CA-E3/5B | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 600W, 7.02V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN | P6SMB8.2CA vs P6SMB8.2CA-E3/5B |
P6SMB8.2CA Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for P6SMB8.2CA can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
-
To ensure reliability in high-temperature applications, it is recommended to derate the power rating of P6SMB8.2CA according to the temperature derating curve provided in the datasheet. Additionally, ensure that the device is properly soldered and that the PCB is designed to handle the thermal stresses.
-
Yes, P6SMB8.2CA can be used in a bidirectional configuration by connecting two devices in series, with the anodes connected together and the cathodes connected to the circuit to be protected. However, this configuration may affect the overall performance and reliability of the device.
-
The maximum surge current that P6SMB8.2CA can handle is 1365A, as specified in the datasheet. However, it is recommended to derate the surge current based on the application and environmental conditions.
-
Yes, P6SMB8.2CA is compatible with lead-free soldering processes. Littelfuse ensures that their devices meet the requirements of the RoHS directive and are compatible with lead-free soldering processes.
