Diodes / Transient Suppressors / P6SMB36A/TR7
Datasheets

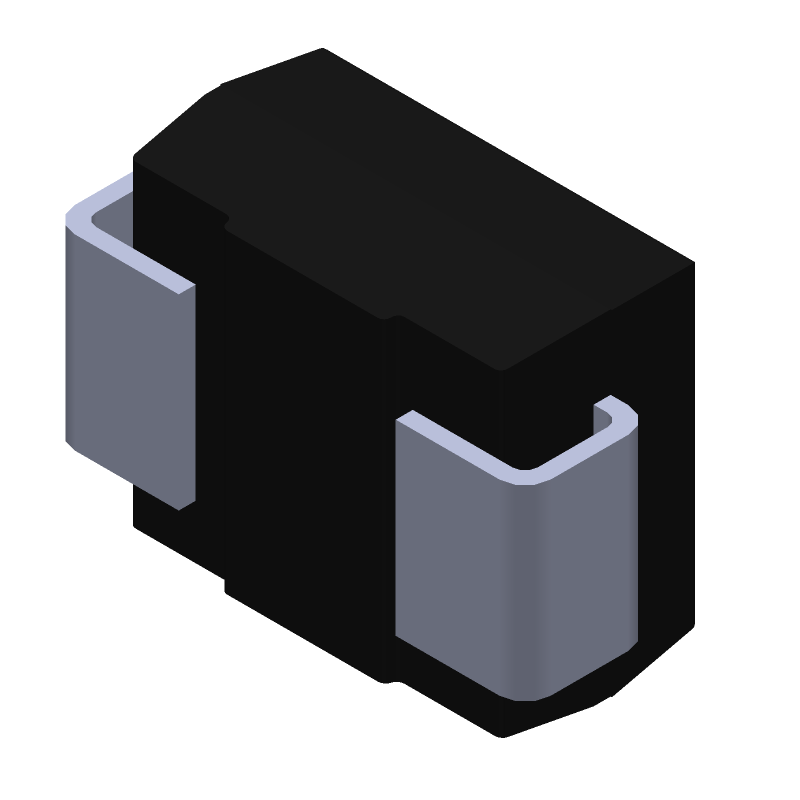

P6SMB36A/TR7 by:

Trans Voltage Suppressor Diode,

Part Details for P6SMB36A/TR7 by YAGEO Corporation

Results Overview of P6SMB36A/TR7 by YAGEO Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

P6SMB36A/TR7 Information

P6SMB36A/TR7 by YAGEO Corporation is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for P6SMB36A/TR7

Part # Distributor Description Stock Price Buy
DISTI # 13-P6SMB36A/TR7TR-ND
DigiKey TVS DIODE 30.8VWM DO214AA Min Qty: 500 Lead time: 31 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 500 $0.0922
  • 1,000 $0.0829
  • 1,500 $0.0781
  • 2,500 $0.0727
  • 3,500 $0.0694
  • 5,000 $0.0662
  • 12,500 $0.0591
  • 25,000 $0.0547
  • 50,000 $0.0510
$0.0510 / $0.0922 Buy Now
DISTI # P6SMB36A/TR7
Avnet Americas - Tape and Reel (Alt: P6SMB36A/TR7) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 18 Weeks, 0 Days Container: Reel 0
  • 500 $0.0629
  • 1,000 $0.0626
  • 2,000 $0.0427
  • 3,000 $0.0425
  • 4,000 $0.0422
$0.0422 / $0.0629 Buy Now
DISTI # 603-P6SMB36A/TR7
Mouser Electronics ESD Protection Diodes / TVS Diodes P6SMB - A 30.8V RoHS: Compliant 0
  • 1 $0.4600
  • 10 $0.3170
  • 100 $0.1610
  • 500 $0.0930
$0.0930 / $0.4600 Order Now
DISTI # P6SMB36A/TR7
TTI ESD Protection Diodes / TVS Diodes P6SMB - A 30.8V RoHS: Compliant pbFree: Pb-Free Min Qty: 5000 Package Multiple: 500 Container: Reel Americas - 0
  • 5,000 $0.0450
  • 10,000 $0.0440
  • 25,000 $0.0430
  • 75,000 $0.0420
$0.0420 / $0.0450 Buy Now
DISTI # P6SMB36A/TR7
Avnet Abacus (Alt: P6SMB36A/TR7) RoHS: Compliant Min Qty: 5000 Package Multiple: 500 Lead time: 34 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for P6SMB36A/TR7

P6SMB36A/TR7 Part Data Attributes

Parametric Data
P6SMB36A/TR7 YAGEO Corporation
Buy Now Datasheet
Compare Parts:
P6SMB36A/TR7 YAGEO Corporation Trans Voltage Suppressor Diode,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer YAGEO CORP
Package Description R-PDSO-C2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Factory Lead Time 18 Weeks
Date Of Intro 2019-04-29
Samacsys Manufacturer YAGEO
Additional Feature EXCELLENT CLAMPING CAPABILITY, PRSM-MIN, UL CERTIFIED
Breakdown Voltage-Max 37.8 V
Breakdown Voltage-Min 34.2 V
Breakdown Voltage-Nom 36 V
Clamping Voltage-Max 49.9 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AA
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 600 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 5 W
Reference Standard UL CERTIFIED
Rep Pk Reverse Voltage-Max 30.8 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40

Alternate Parts for P6SMB36A/TR7

This table gives cross-reference parts and alternative options found for P6SMB36A/TR7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P6SMB36A/TR7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
P6SMB36A/TR13 YAGEO Corporation $0.1883 Trans Voltage Suppressor Diode, P6SMB36A/TR7 vs P6SMB36A/TR13
SM6T36A-M3/52 Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 600W, 30.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, P6SMB36A/TR7 vs SM6T36A-M3/52
SM6T36A-M3/5B Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 600W, 30.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, P6SMB36A/TR7 vs SM6T36A-M3/5B
