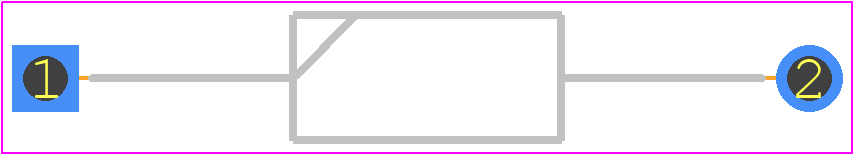

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for P6KE7.5A-TP by Micro Commercial Components
Results Overview of P6KE7.5A-TP by Micro Commercial Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
P6KE7.5A-TP Information
P6KE7.5A-TP by Micro Commercial Components is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for P6KE7.5A-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
P6KE7.5A-TPMSCT-ND
|
DigiKey | TVS DIODE 6.4VWM 11.3VC DO15 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
3290 In Stock |
|
$0.0500 / $0.3700 | Buy Now |
|
DISTI #
833-P6KE7.5A-TP
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes UNI-DIR 600W 53V RoHS: Compliant | 0 |
|
$0.0830 / $0.3700 | Order Now |
Part Details for P6KE7.5A-TP
P6KE7.5A-TP CAD Models
P6KE7.5A-TP Part Data Attributes
|
|
P6KE7.5A-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
P6KE7.5A-TP
Micro Commercial Components
Trans Voltage Suppressor Diode, 600W, 6.4V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | DO-15 | |
| Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | MCC | |
| Breakdown Voltage-Max | 7.88 V | |
| Breakdown Voltage-Min | 7.13 V | |
| Breakdown Voltage-Nom | 7.5 V | |
| Case Connection | ISOLATED | |
| Clamping Voltage-Max | 11.3 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-15 | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 6.4 V | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for P6KE7.5A-TP
This table gives cross-reference parts and alternative options found for P6KE7.5A-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P6KE7.5A-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| P6KE7.5A | Concord Semiconductor Corp | Check for Price | Trans Voltage Suppressor Diode, 6.4V V(RWM), Unidirectional, | P6KE7.5A-TP vs P6KE7.5A |
| P6KE7.5B0G | Taiwan Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 600W, 6.05V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AC, DO-15, 2 PIN | P6KE7.5A-TP vs P6KE7.5B0G |
| P6KE7.5-T13 | ProTek Devices | Check for Price | Trans Voltage Suppressor Diode, 600W, 6.1V V(RWM), Unidirectional, 1 Element, Silicon, | P6KE7.5A-TP vs P6KE7.5-T13 |
| P6KE7.5A | Lite-On Semiconductor Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 6.4V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 | P6KE7.5A-TP vs P6KE7.5A |
| P6KE7.5A | Formosa Microsemi Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 600W, 6.4V V(RWM), Unidirectional, 1 Element, Silicon, DO-15, | P6KE7.5A-TP vs P6KE7.5A |
| P6KE7.5ATR | Microsemi Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 6.4V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, T-18, 2 PIN | P6KE7.5A-TP vs P6KE7.5ATR |
| P6KE7.5AT | Crydom Inc | Check for Price | Trans Voltage Suppressor Diode, 600W, 6.4V V(RWM), Unidirectional, 1 Element, Silicon, DO-15 | P6KE7.5A-TP vs P6KE7.5AT |
| P6KE7.5A | Semtech Corporation | Check for Price | Trans Voltage Suppressor Diode, 600W, 6.4V V(RWM), Unidirectional, 1 Element, Silicon, DO-15 | P6KE7.5A-TP vs P6KE7.5A |
| P6KE7.5 | EIC Semiconductor Inc | Check for Price | Trans Voltage Suppressor Diode, 6.05V V(RWM), Unidirectional, | P6KE7.5A-TP vs P6KE7.5 |
| P6KE7.5 | Square D by Schneider Electric | Check for Price | Trans Voltage Suppressor Diode, 6.05V V(RWM), Unidirectional, | P6KE7.5A-TP vs P6KE7.5 |
P6KE7.5A-TP Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for P6KE7.5A-TP can be found in the Micro Commercial Components' application note or in IPC-7351 standard. It's essential to follow the recommended footprint to ensure proper soldering and to prevent thermal and mechanical stress on the component.
-
To select the correct TVS diode, consider the following factors: voltage rating, peak pulse current, clamping voltage, and response time. Ensure the TVS diode can handle the maximum voltage and current in your application, and that its clamping voltage is below the maximum voltage rating of your circuit.
-
A unidirectional TVS diode protects against overvoltage in one direction, typically from the power supply to the circuit. A bidirectional TVS diode protects against overvoltage in both directions, typically used in signal lines or data transmission lines. P6KE7.5A-TP is a unidirectional TVS diode.
-
Yes, P6KE7.5A-TP can be used for ESD protection. Its fast response time and low clamping voltage make it suitable for protecting sensitive electronics from electrostatic discharge. However, ensure the TVS diode is properly sized for the expected ESD energy and that it's used in conjunction with other ESD protection measures, such as resistors and capacitors.
-
To ensure the reliability and longevity of P6KE7.5A-TP, follow proper soldering and assembly techniques, ensure the component is operated within its specified ratings, and provide adequate heat dissipation. Also, consider using a TVS diode with a high surge capability and a low leakage current to minimize the risk of component degradation over time.
