P6KE400CA by:

600 W TVS in DO-15

Part Details for P6KE400CA by STMicroelectronics

Results Overview of P6KE400CA by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

P6KE400CA Information

P6KE400CA by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for P6KE400CA

Part # Distributor Description Stock Price Buy
DISTI # 59M7588
Newark Transient Voltage Suppressor, Tvs, Transil P6Ke Series, Bidirectional, 342 V, Do-15, 2, 380 V Rohs Compliant: Yes |Stmicroelectronics P6KE400CA RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Bulk 572
  • 1 $0.3420
  • 10 $0.3130
  • 100 $0.2920
  • 500 $0.2880
  • 1,000 $0.2750
  • 3,000 $0.2700
  • 10,000 $0.2690
$0.2690 / $0.3420 Buy Now
DISTI # 497-15646-1-ND
DigiKey TVS DIODE 342VWM 706VC DO204AC Min Qty: 1 Lead time: 25 Weeks Container: Cut Tape (CT), Tape & Box (TB) 4546
In Stock
  • 1 $0.2600
  • 10 $0.2330
  • 1,000 $0.1990
  • 2,000 $0.1970
  • 3,000 $0.1935
  • 5,000 $0.1905
$0.1905 / $0.2600 Buy Now
DISTI # P6KE400CA
Avnet Americas Diode TVS Single Bi-Dir 342V 600W 2-Pin DO-15 T/R - Ammo Pack (Alt: P6KE400CA) RoHS: Compliant Min Qty: 4000 Package Multiple: 1000 Lead time: 25 Weeks, 0 Days Container: Ammo Pack 0
  • 4,000 $0.2059
  • 6,000 $0.2005
  • 10,000 $0.1966
  • 20,000 $0.1919
  • 40,000 $0.1875
$0.1875 / $0.2059 Buy Now
DISTI # 59M7588
Avnet Americas Diode TVS Single Bi-Dir 342V 600W 2-Pin DO-15 T/R - Bulk (Alt: 59M7588) RoHS: Compliant Min Qty: 5 Package Multiple: 5 Lead time: 111 Weeks, 0 Days Container: Bulk 0
  • 1 $0.4500
  • 10 $0.3640
  • 100 $0.2970
  • 500 $0.2900
  • 1,000 $0.2730
$0.2730 / $0.4500 Buy Now
DISTI # 511-P6KE400CA
Mouser Electronics ESD Protection Diodes / TVS Diodes 600W 400V Bidirect RoHS: Compliant 21922
  • 1 $0.2600
  • 10 $0.2320
  • 100 $0.2170
  • 500 $0.2130
  • 1,000 $0.1990
  • 2,000 $0.1970
  • 25,000 $0.1900
$0.1900 / $0.2600 Buy Now
DISTI # E02:0323_00209434
Arrow Electronics Diode TVS Single Bi-Dir 342V 600W 2-Pin DO-15 Ammo Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks Date Code: 2514 Europe - 172000
  • 1,000 $0.1981
  • 2,000 $0.1898
  • 25,000 $0.1893
$0.1893 / $0.1981 Buy Now
DISTI # V36:1790_06556089
Arrow Electronics Diode TVS Single Bi-Dir 342V 600W 2-Pin DO-15 Ammo Min Qty: 4000 Package Multiple: 1000 Lead time: 25 Weeks Date Code: 2434 Americas - 20000
  • 4,000 $0.1863
  • 25,000 $0.1858
$0.1858 / $0.1863 Buy Now
DISTI # V72:2272_06556089
Arrow Electronics Diode TVS Single Bi-Dir 342V 600W 2-Pin DO-15 Ammo Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks Date Code: 2249 Container: Cut Strips Americas - 3711
  • 1 $0.2187
  • 10 $0.2153
  • 25 $0.2120
  • 100 $0.2087
  • 250 $0.2054
  • 500 $0.2021
  • 1,000 $0.1987
  • 3,000 $0.1954
$0.1954 / $0.2187 Buy Now
STMicroelectronics 600 W, 342 V TVS in DO-15 COO: France RoHS: Compliant Min Qty: 1 21902
  • 1 $0.2500
  • 10 $0.2200
  • 100 $0.2100
  • 500 $0.2100
$0.2100 / $0.2500 Buy Now
DISTI # 88795793
Verical Diode TVS Single Bi-Dir 342V 600W 2-Pin DO-15 Ammo Min Qty: 1000 Package Multiple: 1000 Date Code: 2514 Americas - 172000
  • 1,000 $0.1993
  • 2,000 $0.1910
  • 25,000 $0.1906
$0.1906 / $0.1993 Buy Now
DISTI # 63380638
Verical Diode TVS Single Bi-Dir 342V 600W 2-Pin DO-15 Ammo Min Qty: 148 Package Multiple: 1 Americas - 31839
  • 148 $0.1720
  • 200 $0.1710
  • 500 $0.1690
  • 1,000 $0.1560
  • 2,000 $0.1500
  • 3,000 $0.1490
  • 6,000 $0.1450
  • 12,000 $0.1420
$0.1420 / $0.1720 Buy Now
Future Electronics P6KE400 Series 380 V 600 W Bidirectional Axial Through Hole TVS Diode - DO-15 Min Qty: 1000 Package Multiple: 1000 23000
null
  • 1,000 $0.1510
  • 3,000 $0.1480
  • 5,000 $0.1470
  • 10,000 $0.1450
  • 20,000 $0.1430
$0.1430 / $0.1510 Buy Now
DISTI # P6KE400CA-ST
TME Diode: TVS, 400V, 1.1A, bidirectional, ±5%, DO15, 600W, Ammo Pack Min Qty: 1 727
  • 1 $0.6580
  • 10 $0.5400
  • 25 $0.4720
  • 100 $0.3380
  • 500 $0.2780
  • 1,000 $0.2150
  • 2,000 $0.1890
  • 5,000 $0.1860
  • 10,000 $0.1770
$0.1770 / $0.6580 Buy Now
DISTI # P6KE400CA
IBS Electronics P6KE SERIES 5 W 420 V BI-DIRECTIONAL THROUGH HOLE TVS DIODE - DO-204AC Min Qty: 1000 Package Multiple: 1 23000
  • 1,000 $0.1963
  • 3,000 $0.1924
  • 5,000 $0.1911
  • 10,000 $0.1885
  • 20,000 $0.1859
$0.1859 / $0.1963 Buy Now
DISTI # P6KE400CA
Avnet Silica Diode TVS Single BiDir 342V 600W 2Pin DO15 TR (Alt: P6KE400CA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days Silica - 364000
Buy Now
DISTI # P6KE400CA
Chip One Stop Semiconductors pbFree: No Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 31839
  • 5 $0.2180
  • 50 $0.1930
  • 100 $0.1720
  • 200 $0.1710
  • 500 $0.1690
  • 1,000 $0.1560
  • 2,000 $0.1500
  • 3,000 $0.1490
  • 6,000 $0.1450
  • 12,000 $0.1420
$0.1420 / $0.2180 Buy Now
DISTI # P6KE400CA
EBV Elektronik Diode TVS Single BiDir 342V 600W 2Pin DO15 TR (Alt: P6KE400CA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days EBV - 22000
Buy Now
LCSC 5.7A8/20us 600W 706V 380V 342V DO-15(DO-204AC) ESD and Surge Protection (TVS/ESD) ROHS 190
  • 1 $0.3395
  • 10 $0.2973
  • 30 $0.2807
  • 100 $0.2580
  • 500 $0.2460
$0.2460 / $0.3395 Buy Now

Part Details for P6KE400CA

P6KE400CA CAD Models

  • Part Symbol

    Part Symbol

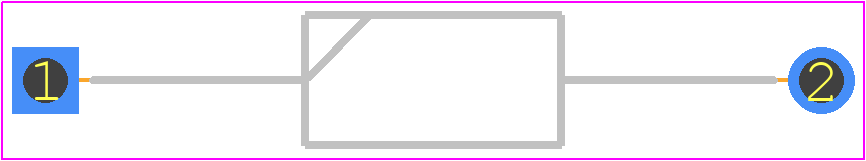

  • Footprint

    footprint

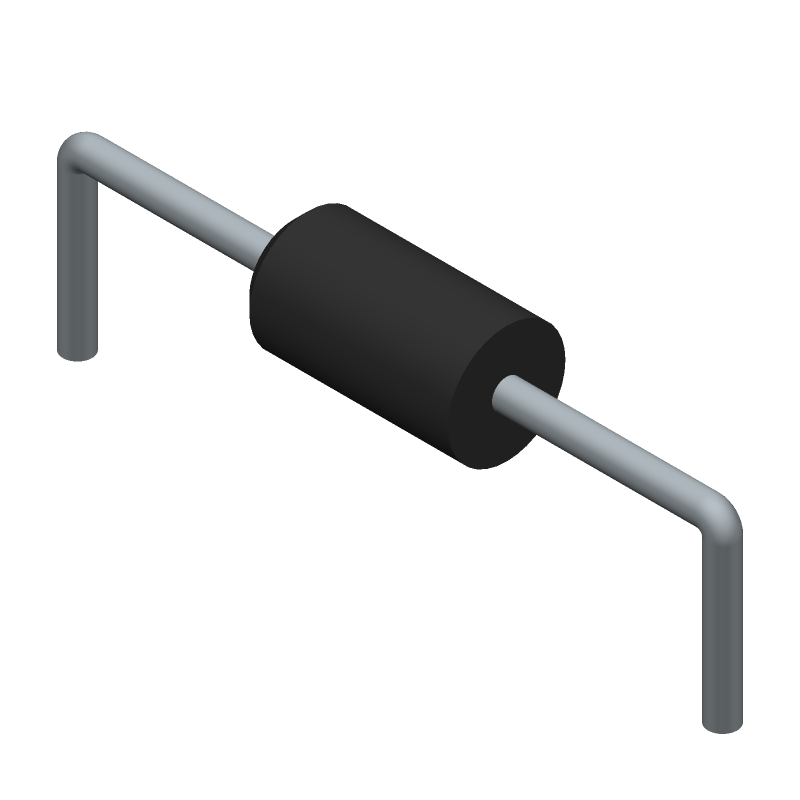

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

P6KE400CA Part Data Attributes

Parametric Data
P6KE400CA STMicroelectronics
Buy Now Datasheet
Compare Parts:
P6KE400CA STMicroelectronics 600 W TVS in DO-15
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code DO-15
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Factory Lead Time 25 Weeks
Samacsys Manufacturer STMicroelectronics
Breakdown Voltage-Max 420 V
Breakdown Voltage-Min 380 V
Breakdown Voltage-Nom 400 V
Case Connection ISOLATED
Clamping Voltage-Max 706 V
Configuration SINGLE
Diode Capacitance-Min 180 pF
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-204AC
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Non-rep Peak Rev Power Dis-Max 600 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity BIDIRECTIONAL
Power Dissipation-Max 5 W
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 342 V
Reverse Current-Max 5 µA
Surface Mount NO
Technology AVALANCHE
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Alternate Parts for P6KE400CA

This table gives cross-reference parts and alternative options found for P6KE400CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of P6KE400CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
P6KE400CA PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 600W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2 P6KE400CA vs P6KE400CA
P6KE400CAB Crydom Inc Check for Price Trans Voltage Suppressor Diode, 600W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-15 P6KE400CA vs P6KE400CAB
P6KE400CA Won-Top Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 600W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 P6KE400CA vs P6KE400CA
P6KE400CAT Crydom Inc Check for Price Trans Voltage Suppressor Diode, 600W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-15 P6KE400CA vs P6KE400CAT
P6KE400CA_NL Fairchild Semiconductor Corporation Check for Price Trans Voltage Suppressor Diode, 600W, Bidirectional, 1 Element, Silicon, LEAD FREE, DO-15, 2 PIN P6KE400CA vs P6KE400CA_NL
P6KE400CA Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 600W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 P6KE400CA vs P6KE400CA
P6KE400CA-GT3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Trans Voltage Suppressor Diode, 600W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, LEAD FREE, PLASTIC PACKAGE-2 P6KE400CA vs P6KE400CA-GT3
P6KE400CA Semtech Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-15 P6KE400CA vs P6KE400CA
P6KE400CA-TB-LF Won-Top Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 600W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2 P6KE400CA vs P6KE400CA-TB-LF
P6KE400CA-AP Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 600W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2 P6KE400CA vs P6KE400CA-AP
Part Number Manufacturer Composite Price Description Compare
BZW04P342B General Instrument Corp Check for Price Trans Voltage Suppressor Diode, 400W, Bidirectional, 1 Element, Silicon, DO-204AL, P6KE400CA vs BZW04P342B
P6KE400CA ProTek Devices Check for Price Trans Voltage Suppressor Diode, 600W, Bidirectional, 1 Element, Silicon, P6KE400CA vs P6KE400CA
JAN1N6120A Bkc Semiconductors Inc Check for Price Trans Voltage Suppressor Diode, 500W, 29.7V V(RWM), Bidirectional, 1 Element, Silicon, P6KE400CA vs JAN1N6120A
P6KE400CARL STMicroelectronics Check for Price 600 W TVS P6KE400CA vs P6KE400CARL
P6SMB8.2A Motorola Mobility LLC Check for Price 600W, UNIDIRECTIONAL, SILICON, TVS DIODE, CASE 403A-03, SMB, 2 PIN P6KE400CA vs P6SMB8.2A
SA33C-B Diodes Incorporated Check for Price Trans Voltage Suppressor Diode, 500W, Bidirectional, 1 Element, Silicon P6KE400CA vs SA33C-B
SA33C Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 500W, 33V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 P6KE400CA vs SA33C
BZW04-342BR0 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AL, DO-41, 2 PIN P6KE400CA vs BZW04-342BR0
P6KE39CA Lite-On Semiconductor Corporation Check for Price Trans Voltage Suppressor Diode, 600W, 33.3V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, PLASTIC PACKAGE-2 P6KE400CA vs P6KE39CA
P4KE400CA-T Rectron Semiconductor Check for Price Trans Voltage Suppressor Diode, 400W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 P6KE400CA vs P4KE400CA-T

P6KE400CA Related Parts

P6KE400CA Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the P6KE400CA is -65°C to 175°C.

  • Choose a voltage rating that is at least 10-20% higher than the maximum voltage in your circuit to ensure proper protection.

  • The response time of the P6KE400CA is typically in the range of 1-10 ns, making it suitable for high-speed applications.

  • Yes, the P6KE400CA is a bidirectional TVS diode, meaning it can protect against both positive and negative voltage surges.

  • Follow the recommended soldering profile and ensure the PCB is designed with a suitable thermal pad to dissipate heat.
