P6KE130CA-E3/54 Information

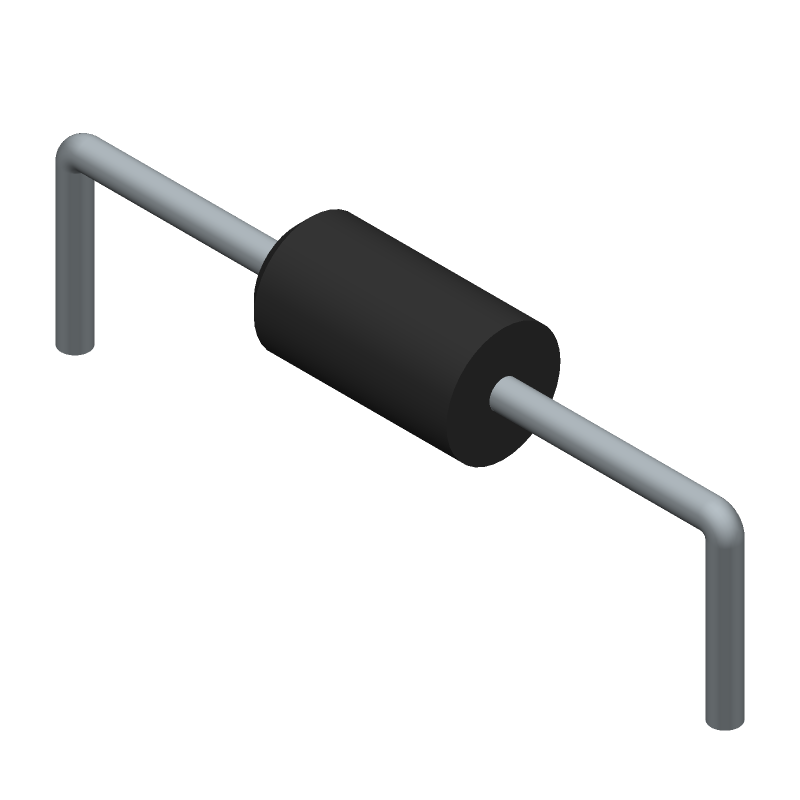

P6KE130CA-E3/54 by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for P6KE130CA-E3/54
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
76K9161
|
Newark | Transient Suppressor Diode, single, bidirectional,111V V(Rwm),do-204Ac |Vishay P6KE130CA-E3/54 RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1580 / $0.2050 | Buy Now |
|
DISTI #
P6KE130CA-E3/54
|
Avnet Americas | Diode TVS Single Bi-Dir 111V 600W 2-Pin DO-15 T/R - Tape and Reel (Alt: P6KE130CA-E3/54) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.1574 / $0.1607 | Buy Now |
|
DISTI #
625-P6KE130CA-E3
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 600W 130V Bidirect RoHS: Compliant | 2223 |
|
$0.1600 / $0.8600 | Buy Now |
|
DISTI #
P6KE130CA-E3/54
|
EBV Elektronik | Diode TVS Single BiDir 111V 600W 2Pin DO15 TR (Alt: P6KE130CA-E3/54) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for P6KE130CA-E3/54

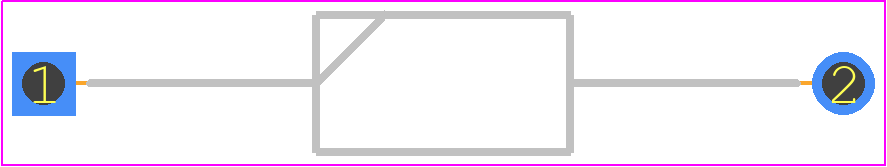

P6KE130CA-E3/54 CAD Models
P6KE130CA-E3/54 Part Data Attributes
|
|
P6KE130CA-E3/54
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
P6KE130CA-E3/54
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 600W, 111V V(RWM), Bidirectional, 1 Element, Silicon, DO-204AC,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 137 V | |
| Breakdown Voltage-Min | 124 V | |
| Breakdown Voltage-Nom | 130 V | |
| Case Connection | ISOLATED | |
| Clamping Voltage-Max | 179 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-204AC | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Peak Rev Power Dis-Max | 600 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 111 V | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
